- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22319 MB W33

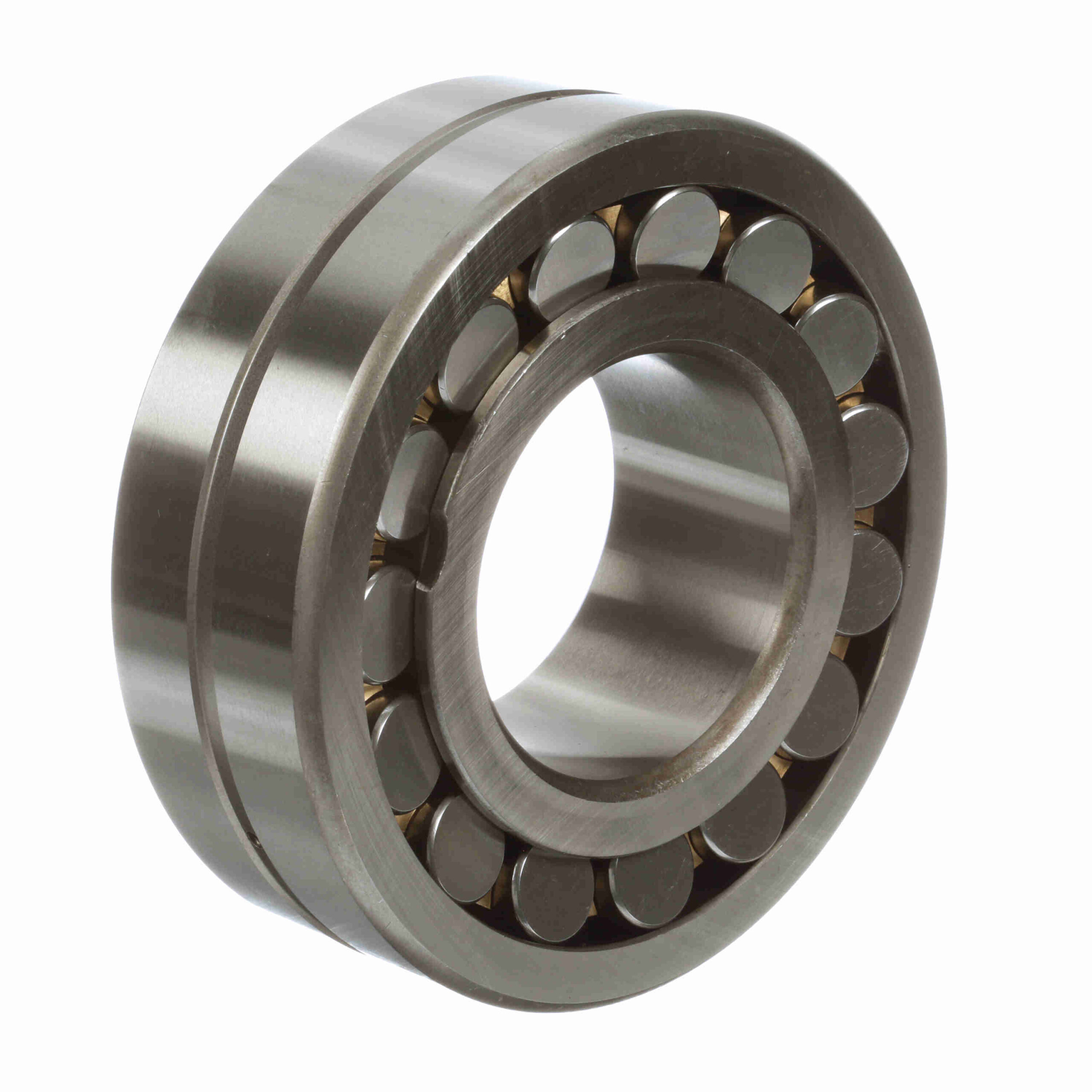

Rollway Radial Spherical Roller Bearing – Straight Bore – 22319 MB W33
$1,906.08
Out of stock
Out of stock
| Bore Type: | Straight | Angular Misalignment: | 2° |
|---|---|---|---|
| Cage Material: | Brass | Radial Clearance: | C0 |
| Series: | 22300 | Seal Type: | Unsealed |
| Static Load Rating (kN): | 570 kN | Misalignment: | Yes |
| Number of Rows: | 2 | Material: | 52100 Bearing Steel |
| Rolling Element: | Spherical Roller | Full Complement/Caged: | Caged |
| Sealed: | None | Platform: | Spherical Radial |
| Duplexing: | No | Speed (Max) Oil (RPM): | 2, 000 rpm |
| Speed (Max) Grease (RPM): | 1, 500 rpm | Dynamic Load Rating (kN): | 570 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410055612 |
| Weight: | 22.95 LB | Packaged Length: | 9.6 Inches |
| Packaged Width: | 8.9 Inches | Packaged Height: | 3.8 Inches |
| Country of Origin: | China |
