- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22316 GMEX C3 W33

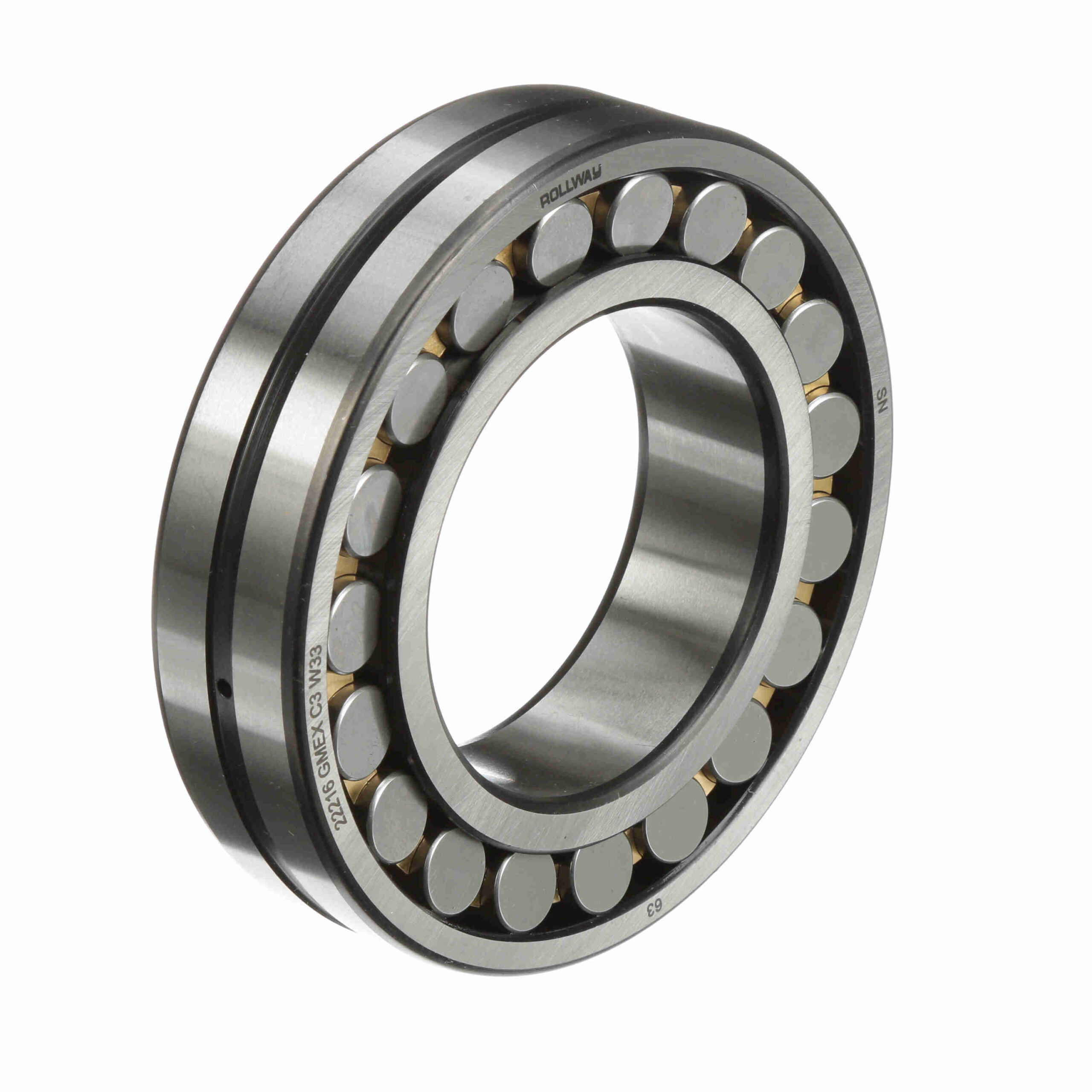

Rollway Radial Spherical Roller Bearing – Straight Bore – 22316 GMEX C3 W33
$475.59
Availability: 4 in stock
Availability: 4 in stock
| Radial Clearance: | C3 | Cage Material: | Brass |
|---|---|---|---|
| Bore Type: | Straight | Series: | 22300 |
| Angular Misalignment: | 2° | Seal Type: | Unsealed |
| Number of Rows: | 2 | Rolling Element: | Spherical Roller |
| Static Load Rating (kN): | 476 kN | Misalignment: | Yes |
| Material: | 52100 Bearing Steel | Full Complement/Caged: | Caged |
| Sealed: | None | Speed (Max) Oil (RPM): | 3, 400 rpm |
| Platform: | Spherical Radial | Speed (Max) Grease (RPM): | 2, 550 rpm |
| Duplexing: | No | Dynamic Load Rating (kN): | 476 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092648 |
| Weight: | 14.03 LB | Packaged Length: | 7.9 Inches |
| Packaged Width: | 7.7 Inches | Packaged Height: | 2.7 Inches |
| Country of Origin: | China |
