- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22213 GMEX W33

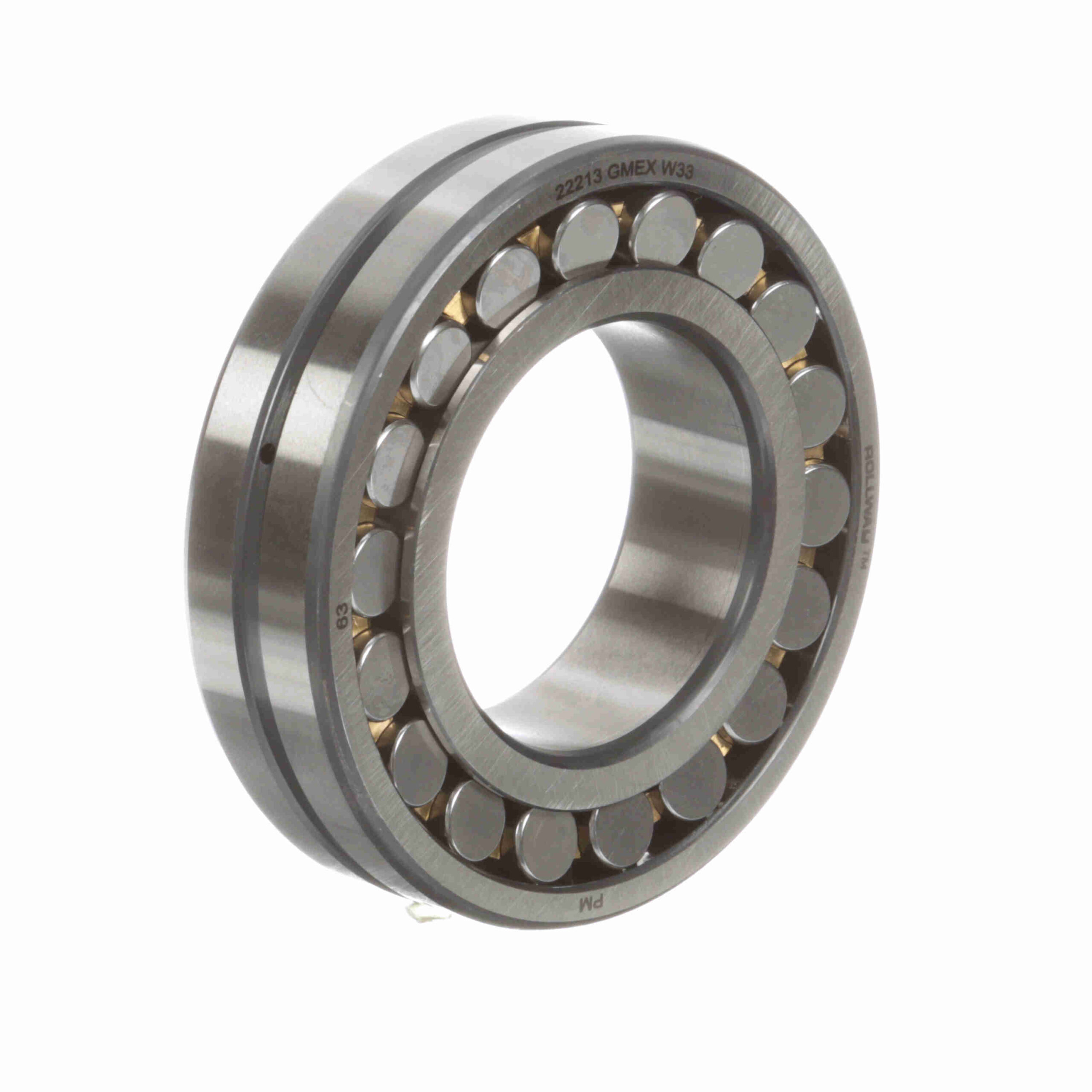

Rollway Radial Spherical Roller Bearing – Straight Bore – 22213 GMEX W33
$205.58
Availability: 10 in stock
Availability: 10 in stock
| Series: | 22200 | Angular Misalignment: | 1.5° |
|---|---|---|---|
| Radial Clearance: | C0 | Bore Type: | Straight |
| Cage Material: | Brass | Seal Type: | Unsealed |
| Number of Rows: | 2 | Misalignment: | Yes |
| Static Load Rating (kN): | 188 kN | Material: | 52100 Bearing Steel |
| Rolling Element: | Spherical Roller | Speed (Max) Oil (RPM): | 5, 950 rpm |
| Duplexing: | No | Speed (Max) Grease (RPM): | 4, 250 rpm |
| Full Complement/Caged: | Caged | Platform: | Spherical Radial |
| Sealed: | None | Dynamic Load Rating (kN): | 188 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092167 |
| Weight: | 3.47 LB | Packaged Length: | 5.2 Inches |
| Packaged Width: | 5.1 Inches | Packaged Height: | 1.7 Inches |
| Country of Origin: | China |
