- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
215SMTP09

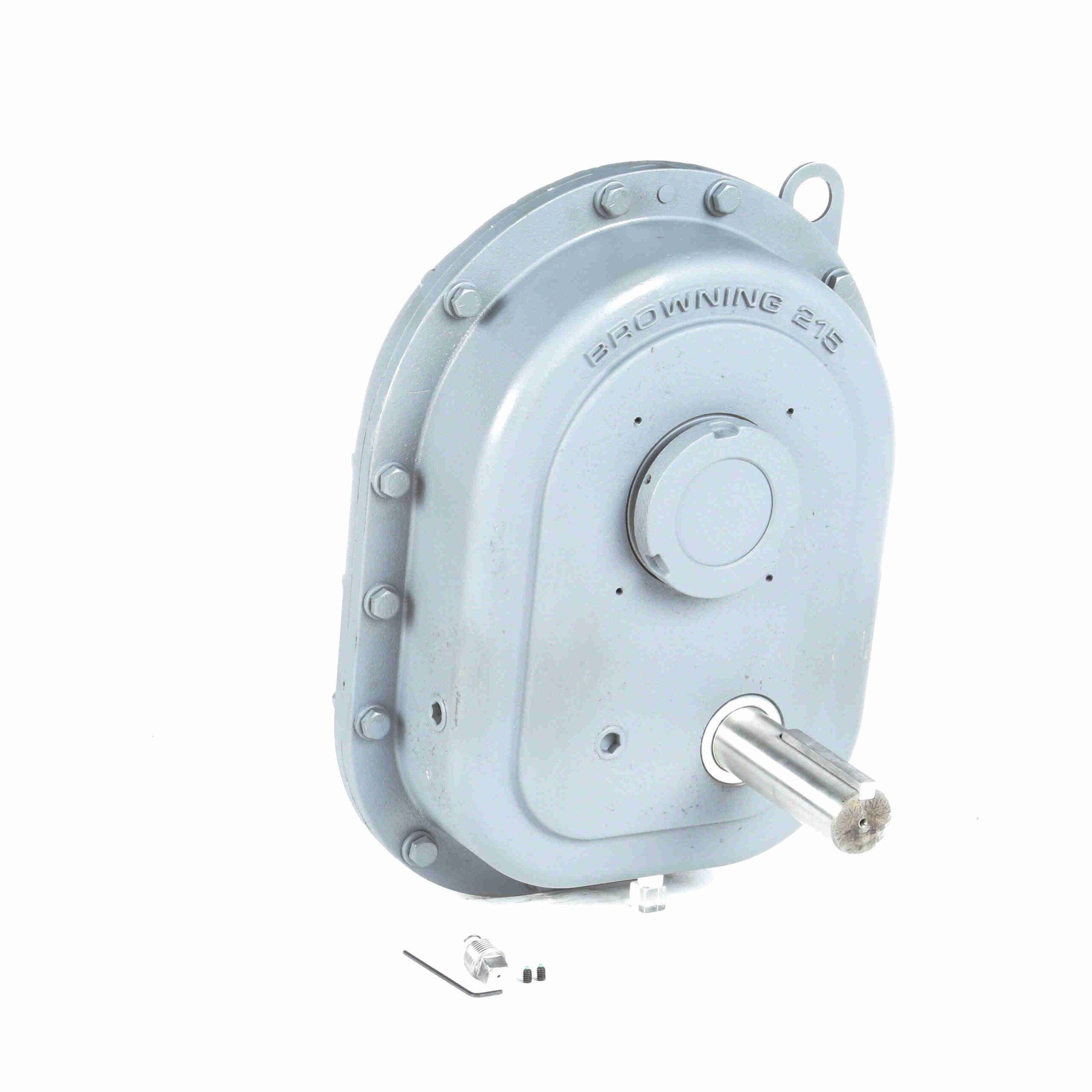

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 215SMTP09
$15,972.90
Out of stock
Out of stock
| Output Speed: | 17 | Input Speed: | 1750 |
|---|---|---|---|
| Ratio: | 9:1 | Product Type: | TorqTaper Plus (SMTP) |
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Bolt Size (in): | 0.4375 in |
| Efficiency: | 80 | Standards met: | AGMA |
| Housing Length (in): | 10.85 in | Housing Width (in): | 16.25 in |
| Housing Height (in): | 20.88 in | Maximum Output Size (in): | 2.9375 in |
| Gear Type: | Helical | Input Style: | Shaft |
| Maximum Output Bore: | 2.9375 | Ratio Range: | 10:1 |
| Reducer Size: | 215 | Mounting Style: | Shaft mount |
| Drive Type: | Torque Arm | Output Bore: | Tapered Bushing |
| Maximum Output RPM: | 200 | Reduction: | Double |
| Input Shaft Diameter: | 1.875 | Output Torque Rating (in-lb): | 3707.29 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Input Shaft Keyseat (in): | .500 x .500 x 3.75 in | Housing Material: | Cast Iron |
| Output Shaft: | Tapered Bore | UPC: | 662288911692 |
| Weight: | 226.00 LB | Packaged Length: | 27.5 Inches |
| Packaged Width: | 20 Inches | Packaged Height: | 23.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
