- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q56H60 100

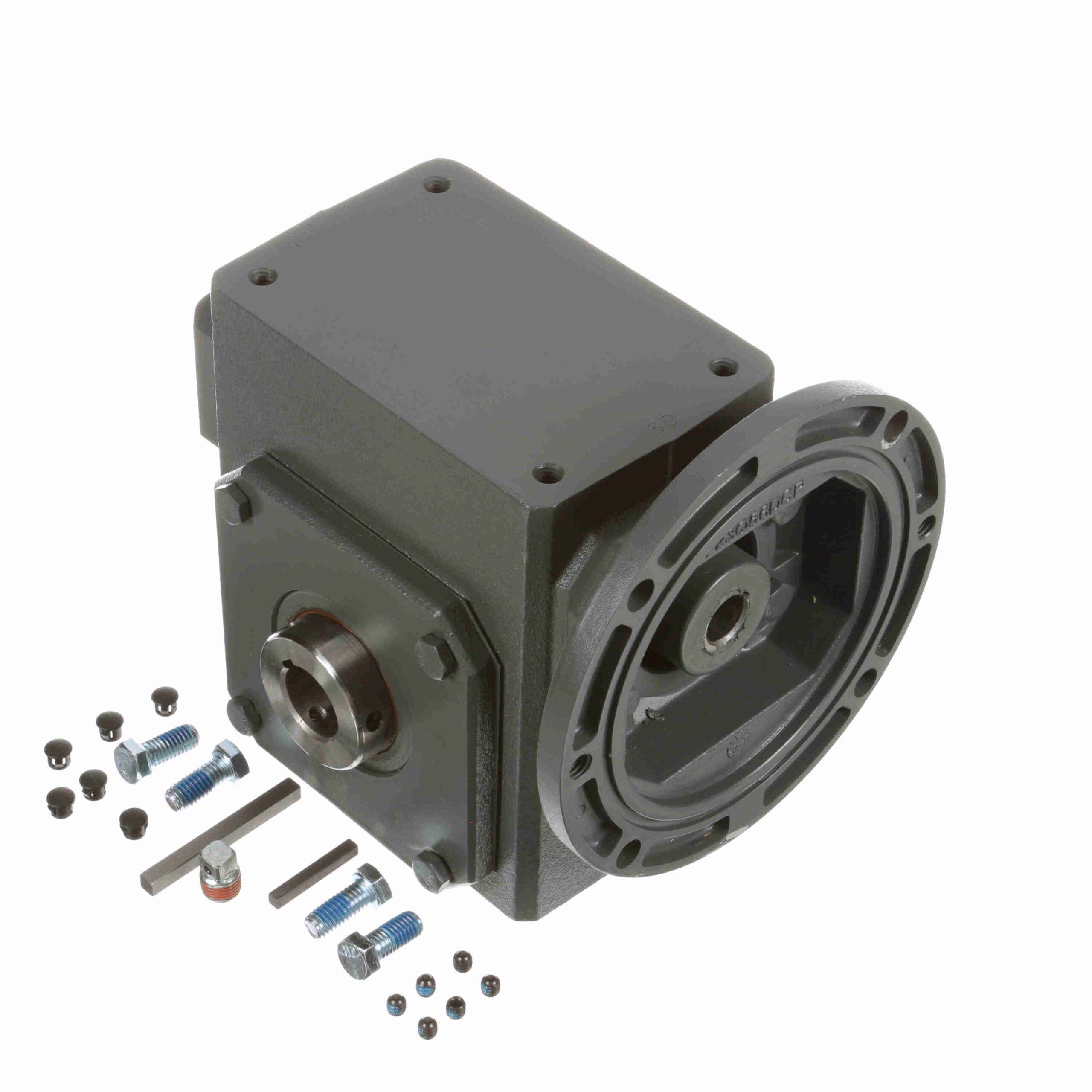

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56H60 100
$2,073.46
Out of stock
Out of stock
| Input Keyway (C Face): | 3/16 x 3/32 | Motor Frame Size: | 56C |
|---|---|---|---|
| Ratio: | 60:1 | Thrust Rating - output shaft: | 2091 |
| Input Bore (C Face): | 0.625 | Efficiency: | 80 |
| Reducer Style: | Standard | Input Speed: | 1750 |
| No. of Gear Reductions: | Single | Gear Type: | Worm |
| Product Type: | Worm Speed Reducer | Output Diameter (in): | 1.000 in |
| Input HP @ 1750 RPM: | 0.97 | Frame Size: | 56C |
| Ratio Range: | 60:1 | Input Style: | C-Face Quill |
| Center Distance (in): | 2.38 | Output Torque Rating (in-lb): | 1418 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb | UPC: | 6, 62289E+11 |
| Weight: | 32.58 LB | Packaged Length: | 11.3 Inches |
| Packaged Width: | 10.6 Inches | Packaged Height: | 11.3 Inches |
