- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206ULR60

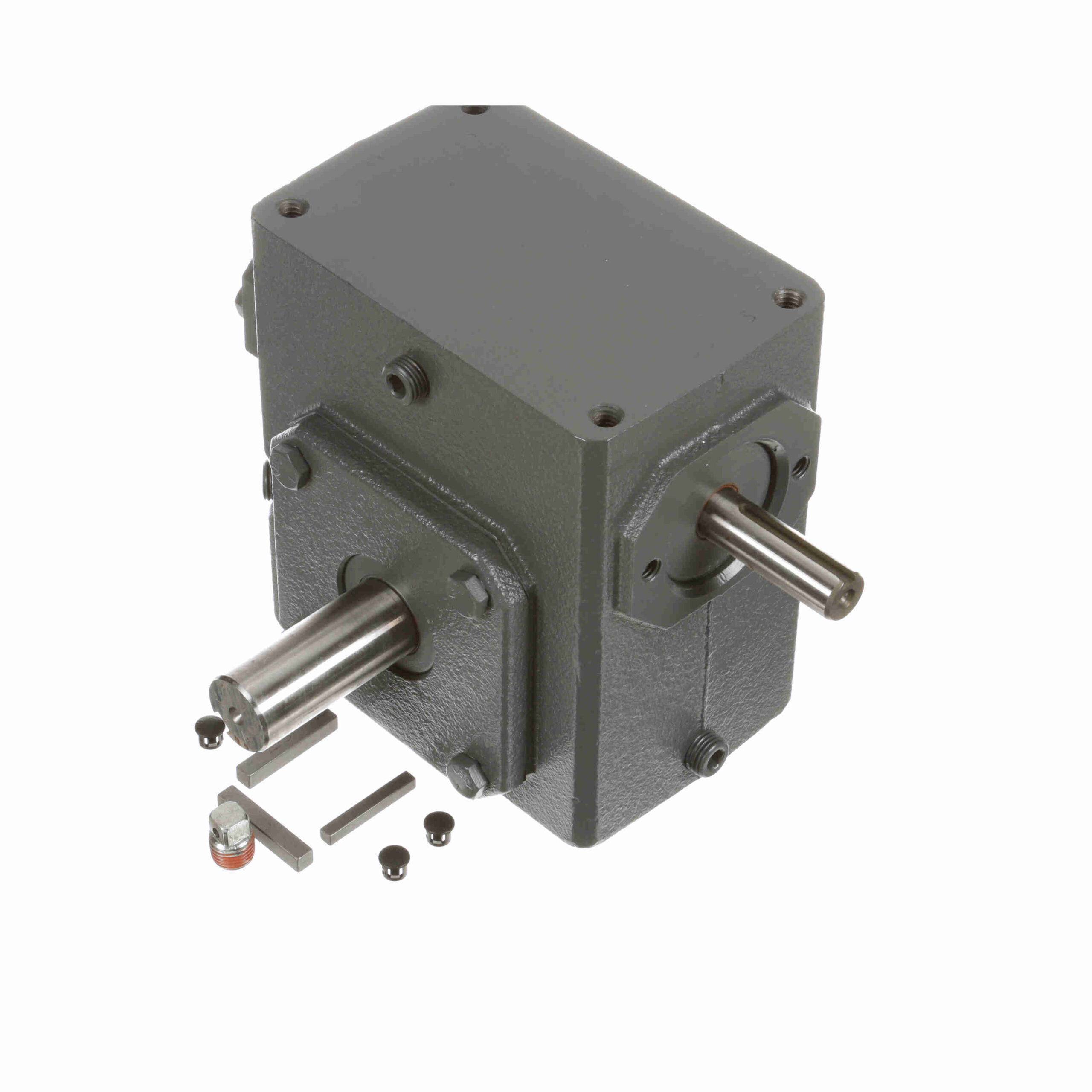

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206ULR60
$1,245.15
Out of stock
Out of stock
| Shaft Seal Material: | Nitrile | Efficiency: | 80 |
|---|---|---|---|
| Reducer Style: | Standard | Thrust Rating - output shaft: | 2305 |
| Ratio: | 60:1 | Key Length: | 1.38 |
| Key Sq.: | 0.1875 | Input Speed: | 1750 |
| Center Distance (in): | 2.06 | Input Keyway: | 3/16 X 1.50 in |
| Service Factor: | 1 | Ratio Range: | 60:1 |
| Output Shaft Orientation: | LR | Input Diameter (in): | 0.625 in |
| Assembly: | U-LR | Model Code: | 206U |
| Output RPM: | 29.1 | Gear Type: | Worm |
| Input Style: | Solid Shaft | Output Diameter (in): | 1.000 in |
| No. of Gear Reductions: | Single | Output Key: | 1/4 X 1.75 |
| Mounting Style: | No Base | Input RPM: | 1, 75 |
| Output Shaft Assembly Code: | D | Input HP @ 1750 RPM: | 0.52 |
| Series Code: | Raider | Product Type: | Worm Speed Reducer |
| Reducer: | Worm - Right Angle | Output Shaft Direction: | Double |
| Output Torque Rating (in-lb): | 940 in-lbs @1750 input RPM in/lbs | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 1, 078 lb |
| UPC: | 6, 62288E+11 | Weight: | 25.00 LB |
