- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
200HR 10FT

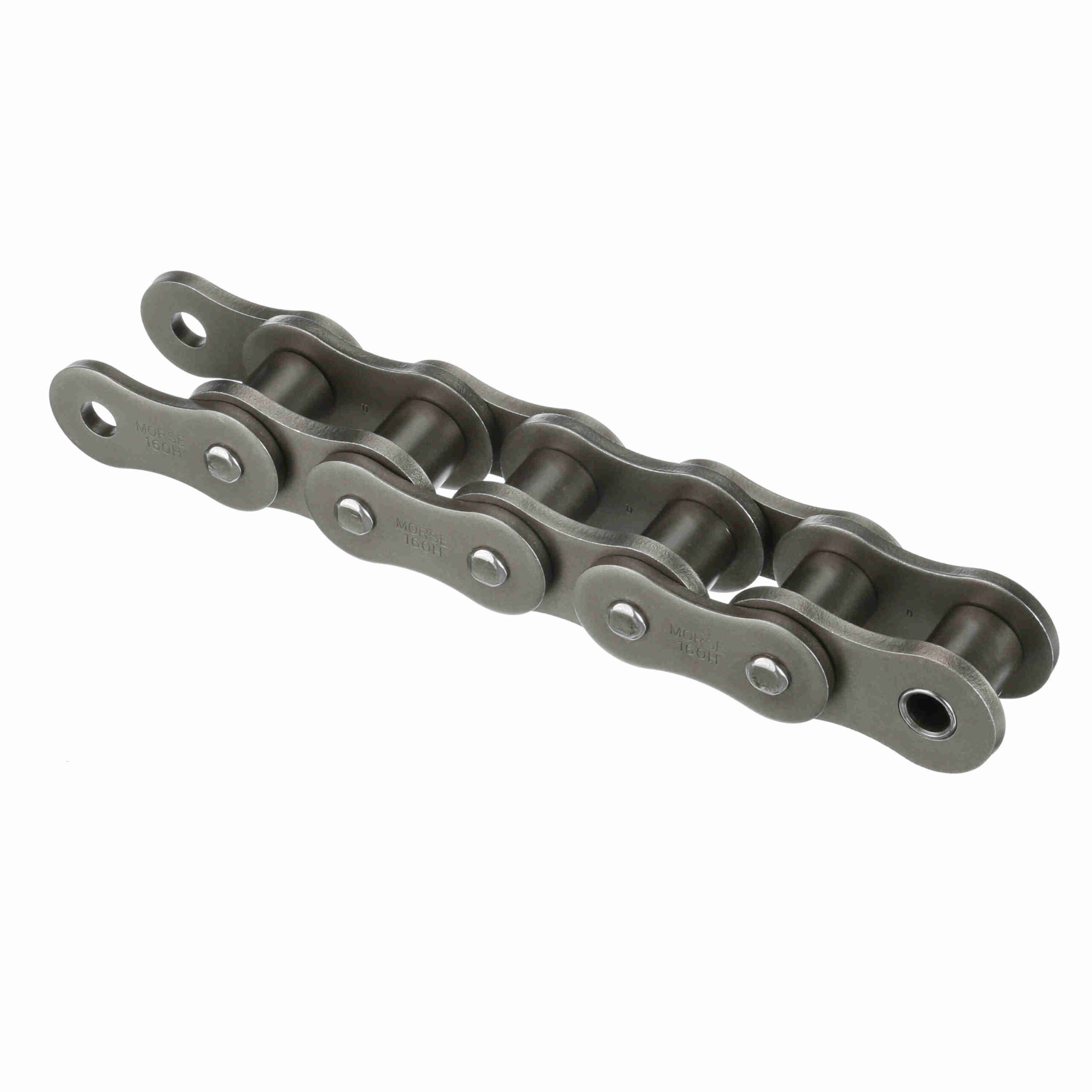

Morse Heavy Riveted Roller Chain – 200HR 10FT
$237.89
Out of stock
Out of stock
| Centerline to Outside of cotter Pin: | 1.904 | Pin Diameter (in): | 0.781 in |
|---|---|---|---|
| Plate Thickness: | 0.375 | Roller Width (in): | 1.5 in |
| Number of Connecting Links Included: | 1 | Average Ultimate Tensile Strength (psi): | 95, 000 |
| Chain Size: | 200 | Chain Construction: | Riveted |
| Centerline to Opposite cotter Pin Side: | 1.687 | Side Plate Cfg.: | Hourglass |
| Roller Diameter (in): | 1.562 in | Material: | Steel |
| Number of Strands/Width: | 1 | Inside Plate Height: | 2.334 |
| Width Over Pins/Total Width: | 3.374 | Total Length: | 10 FT ft |
| Product Type: | Roller Chain | Chain Type: | Heavy |
| Chain Pitch (in): | 2.5 in | Coating: | Uncoated |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 3.374 | UPC: | 662288455844 |
| Weight: | 12.14 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
