- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
200-3R 10FT

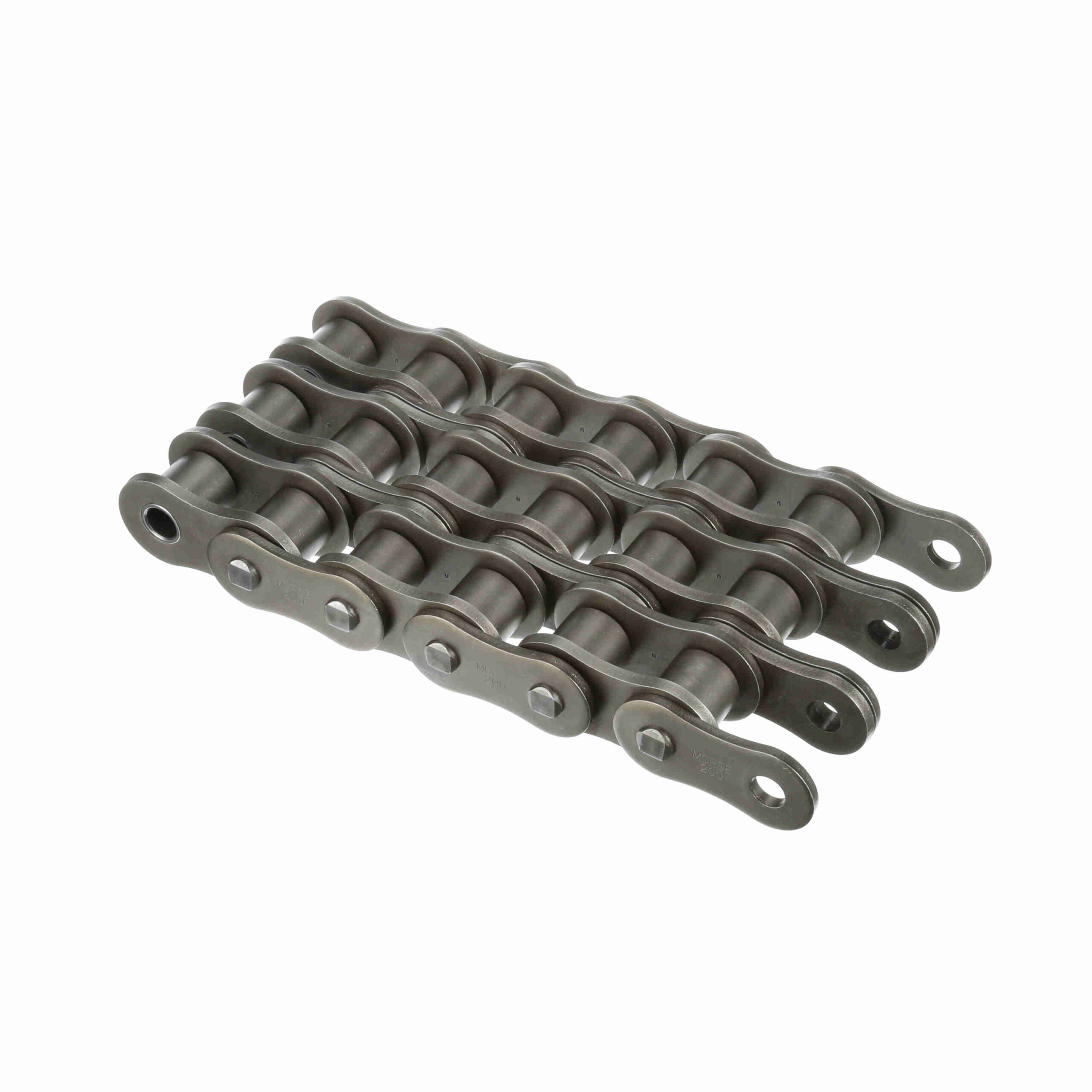

Morse Standard Riveted Roller Chain – 200-3R 10FT
$640.10
Out of stock
Out of stock
| Roller Diameter (in): | 1.562 in | Chain Construction: | Riveted |
|---|---|---|---|
| Chain Size: | 200 | Number of Connecting Links Included: | 1 |
| Pin Diameter (in): | 0.781 in | Plate Thickness: | 0.312 |
| Side Plate Cfg.: | Hourglass | Inside Plate Height: | 2.25 |
| Average Ultimate Tensile Strength (psi): | 285, 000 | Material: | Steel |
| Roller Width (in): | 1.5 in | Width Over Pins/Total Width: | 8.754 |
| Centerline to Opposite cotter Pin Side: | 4.377 | Number of Strands/Width: | 3 |
| Centerline to Outside of cotter Pin: | 4.704 | Center Plates: | Loose Fit, Press Fit Optional |
| Chain Pitch (in): | 2.5 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Total Length: | 10 FT ft |
| Coating: | Uncoated | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 2.817 |
| Pin Length - Riveted: | 8.754 | UPC: | 662288860174 |
| Weight: | 32.04 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
