- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
1P3V53

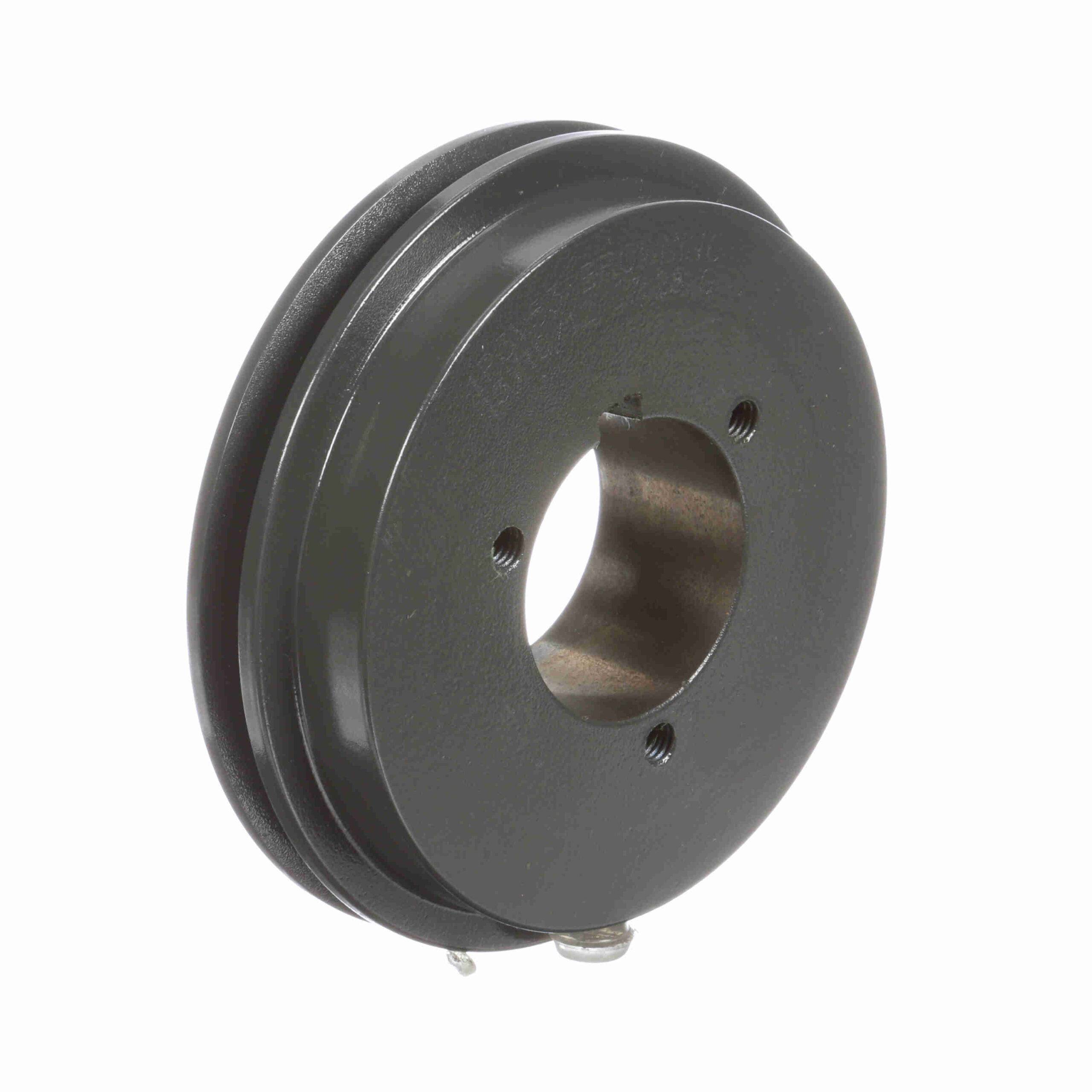

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1P3V53
$240.08
Out of stock
Out of stock
| Pitch Diameter (3V): | 5.25 | Pulley Material: | Cast Iron |
|---|---|---|---|
| Bushing Used: | P1 | Overall Length (in): | 2.140625 in |
| Outside Diameter (in): | 5.3 in | Number of Grooves: | 1 |
| Material: | Cast Iron | Belt Section: | 3V |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.5 in |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Plain |
| Overall Width (in): | 2.1875 | Face Width (in): | 0.6875 |
| Bushing Bore Range: | 0.500 - 1.750 | Keyway Size: | .375 |
| UPC: | 662289119684 | Weight: | 5.44 LB |
| Packaged Length: | 5.70 Inches | Packaged Width: | 5.60 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
