- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
1B70SDS

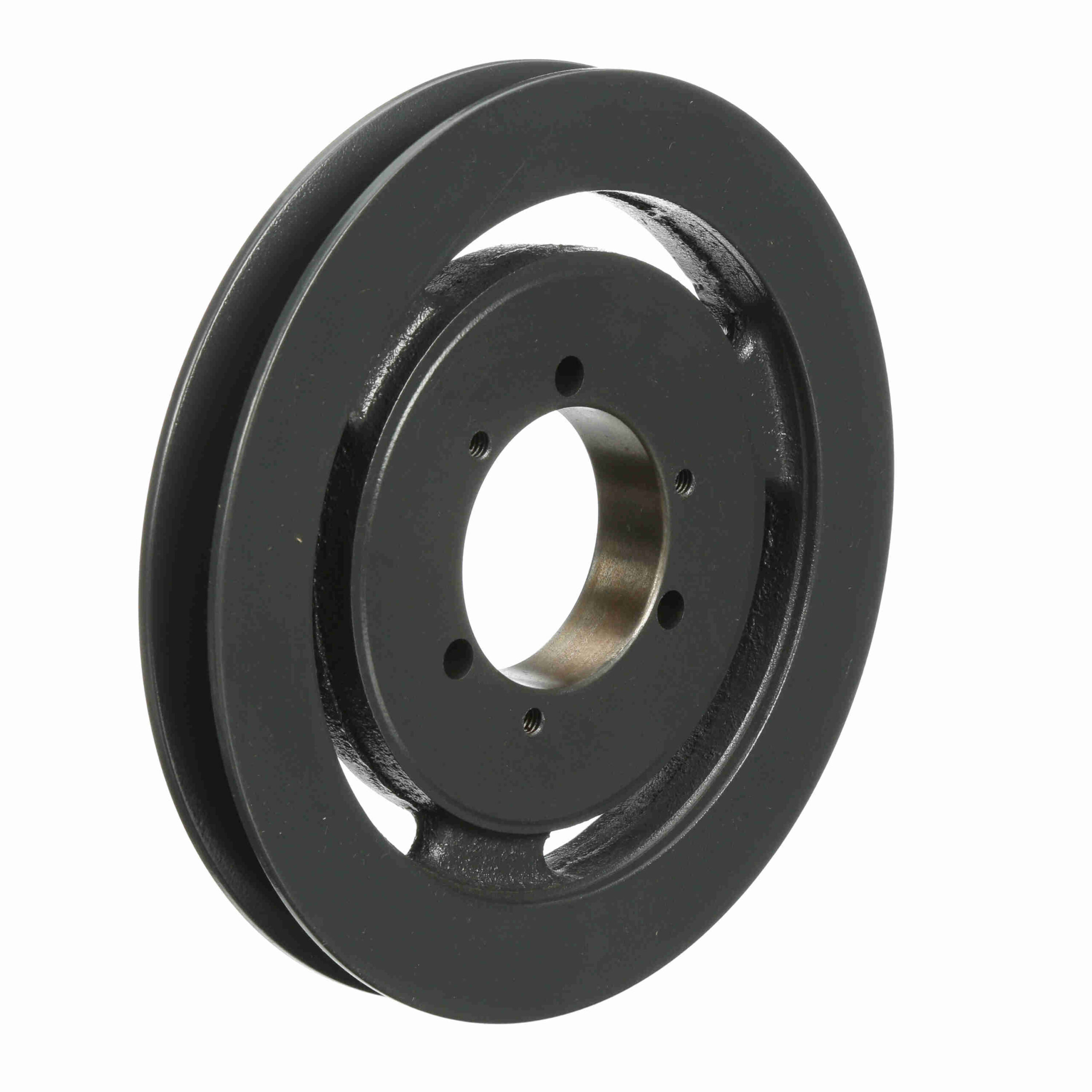

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1B70SDS
$226.72
Out of stock
Out of stock
| Material: | Cast Iron | Model Name: | 1AB_LG_Sheavemaster |
|---|---|---|---|
| Number of Grooves: | 1 | Datum Diameter (B): | 7 |
| Pulley Material: | Cast Iron | Outside Diameter (in): | 7.35 in |
| Bushing Used: | SDS | Datum Diameter (A): | 6.6 |
| Pitch Diameter (A): | 6.8 | Pitch Diameter (B): | 7.3 |
| Bore (Min) (in): | 0.5 in | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.500 - 2.000 | UPC: | 662289362745 |
| Weight: | 5.46 LB | Packaged Length: | 8.30 Inches |
| Packaged Width: | 8.40 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
