- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

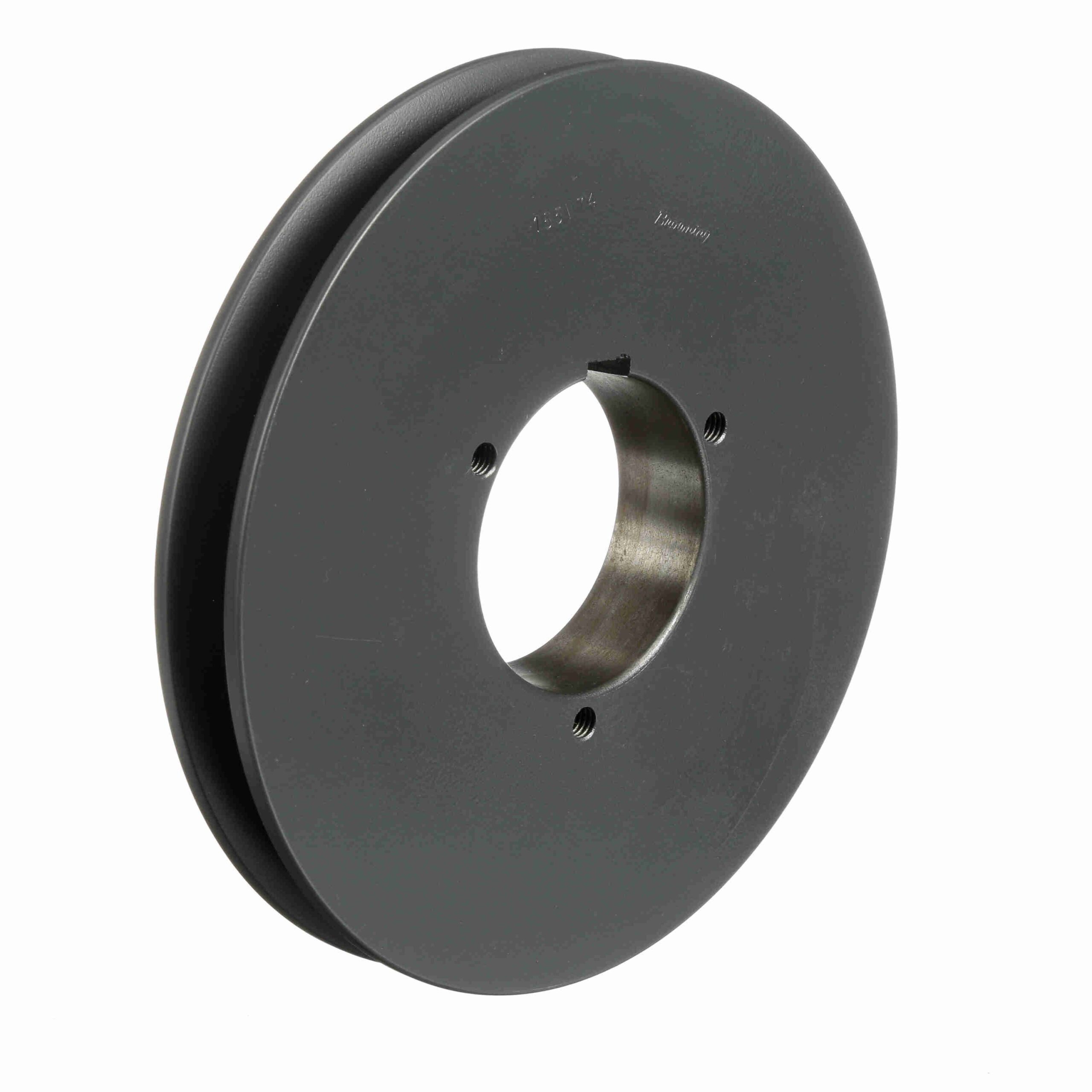

1B5V74
Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1B5V74
$111.49
Availability: 28 in stock
Availability: 28 in stock
| Outside Diameter (in): | 7.68 in | Bushing Used: | B |
|---|---|---|---|
| Datum Diameter (A): | 7 | Pitch Diameter (5V): | 7.5 |
| Pitch Diameter (A): | 7.2 | Number of Grooves: | 1 |
| Overall Length (in): | 2.140625 in | Datum Diameter (B): | 7.4 |
| Material: | Cast Iron | Pitch Diameter (B): | 7.7 |
| Model Name: | 1B5V-SheaveMaster | Pulley Material: | Cast Iron |
| Bore (Min) (in): | 0.5 in | Product Type: | Multiple Sheaves |
| Belt Section: | A, B, 5V | Bore Type: | Split Taper Bushed |
| Number of Hubs: | 1 | Bushing Bore Range: | .500 - 2.4375 |
| Overall Width (in): | 2.14 | Face Width (in): | 1 |
| Pulley Construction: | Web | Keyway Size: | 0.5 |
| UPC: | 662289034185 | Weight: | 8.64 LB |
| Packaged Length: | 8.30 Inches | Packaged Width: | 8.40 Inches |
| Packaged Height: | 1.20 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
