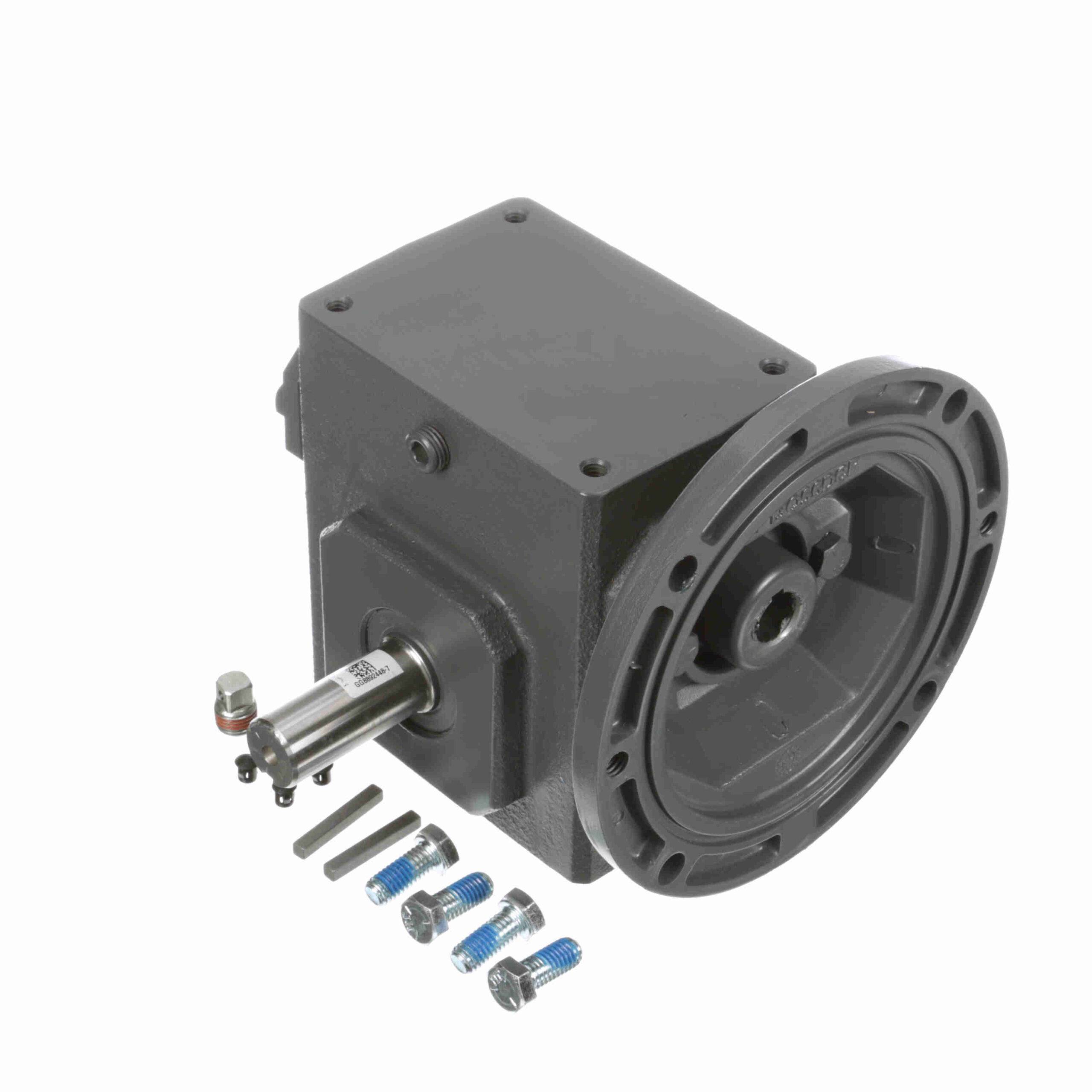

175Q56L10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Ratio:	10:1	Reducer Style:	Standard
Input Speed:	1750	Input Keyway (C Face):	3/16 X 3/32
Input Bore (C Face):	0.625	Motor Frame Size:	56C
Thrust Rating - output shaft:	1098	Shaft Seal Material:	Nitrile
Efficiency:	80	Model Code:	175Q
Output Diameter (in):	0.875 in	Series Code:	Raider
Output Key:	3/16 X 1.38	Product Type:	Worm Speed Reducer
Service Factor:	1	Gear Type:	Worm
Reducer:	Worm - Right Angle	Ratio Range:	10:1
Assembly:	Q-L	Output Shaft Assembly Code:	L
Input Diameter (in):	0.625 in	Output RPM:	175
Mounting Style:	No Base	Center Distance (in):	1.75
Input RPM:	1, 75	No. of Gear Reductions:	Single
Input HP @ 1750 RPM:	1.52	Input Style:	C-Face Quill
Frame Size:	56C	Output Shaft Direction:	Left
Output Torque Rating (in-lb):	528 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	740 lb
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	24.00 LB
