- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q56L40

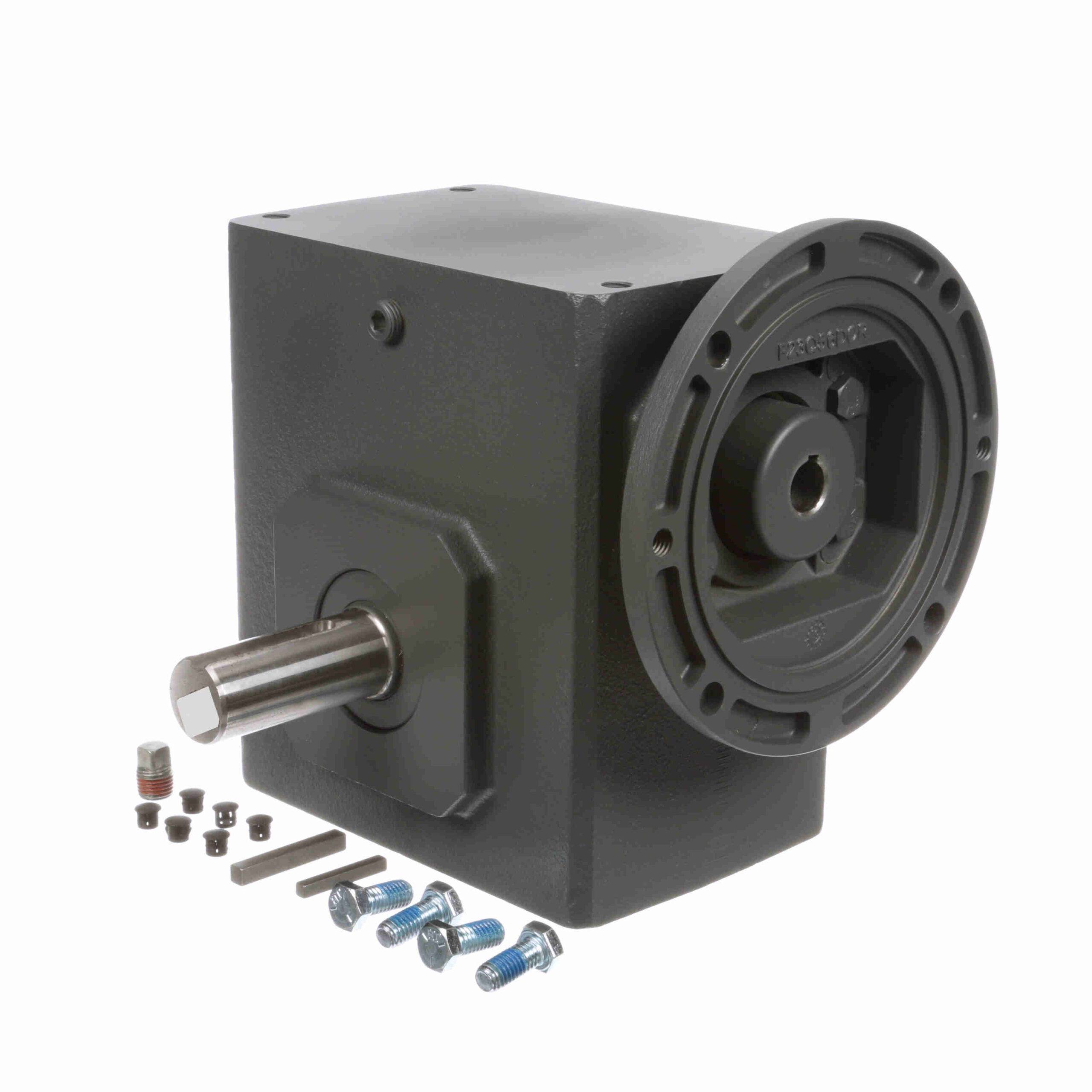

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q56L40
$1,641.21
Out of stock
Out of stock
| Ratio: | 40:1 | Input Keyway (C Face): | 3/16 X 3/32 |
|---|---|---|---|
| Reducer Style: | Standard | Input Speed: | 1750 |
| Input Bore (C Face): | 0.625 | Motor Frame Size: | 56C |
| Shaft Seal Material: | Nitrile | Efficiency: | 80 |
| Thrust Rating - output shaft: | 3096 | Ratio Range: | 40:1 |
| Input Style: | C-Face Quill | Input HP @ 1750 RPM: | 1.37 |
| Output Diameter (in): | 1.125 in | Model Code: | 262Q |
| Output Key: | 1/4 X 2.00 | Mounting Style: | No Base |
| No. of Gear Reductions: | Single | Series Code: | Raider |
| Output RPM: | 43.7 | Input Diameter (in): | 0.625 in |
| Input RPM: | 1, 75 | Center Distance (in): | 2.62 |
| Reducer: | Worm - Right Angle | Gear Type: | Worm |
| Product Type: | Worm Speed Reducer | Output Shaft Assembly Code: | L |
| Frame Size: | 56C | Assembly: | Q-L |
| Service Factor: | 1 | Output Shaft Direction: | Left |
| Output Torque Rating (in-lb): | 1854 in-lbs @1750 input RPM in/lbs | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 1, 295 lb |
| UPC: | 6, 62288E+11 | Weight: | 56.00 LB |
| Packaged Length: | 16 Inches | Packaged Width: | 12.25 Inches |
| Packaged Height: | 11.75 Inches |
