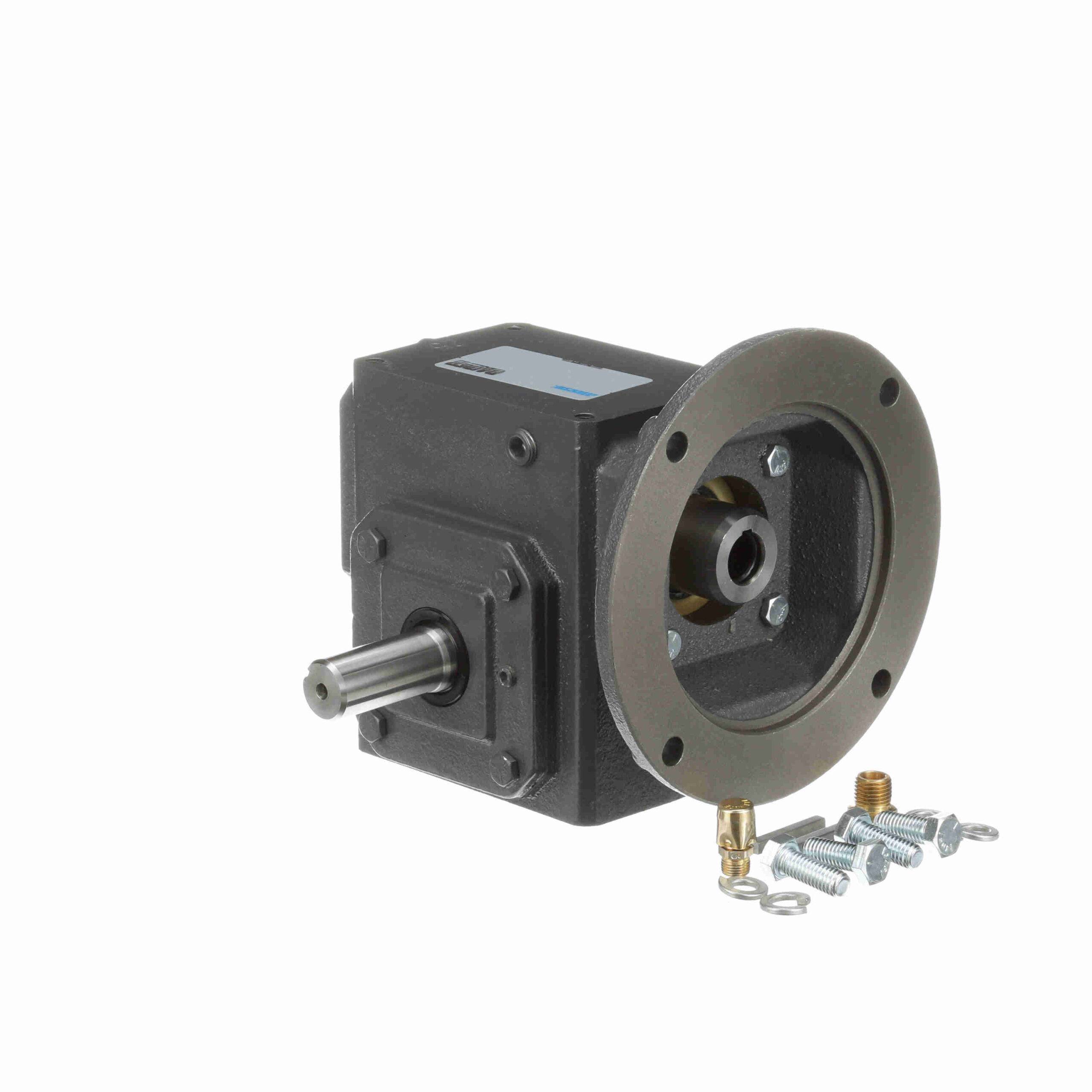

175Q56LR10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Motor Frame Size:	56C
Ratio:	10:1	Input Keyway (C Face):	3/16 X 3/32
Thrust Rating - output shaft:	1098	Shaft Seal Material:	Nitrile
Efficiency:	80	Input Bore (C Face):	0.625
Reducer Style:	Standard	Input HP @ 1750 RPM:	1.52
Output Key:	3/16 X 1.38	No. of Gear Reductions:	Single
Gear Type:	Worm	Ratio Range:	10:1
Product Type:	Worm Speed Reducer	Center Distance (in):	1.75
Reducer:	Worm - Right Angle	Mounting Style:	No Base
Input RPM:	1, 750	Frame Size:	56C
Service Factor:	1	Output RPM:	175
Series Code:	Raider	Input Style:	C-Face Quill
Output Diameter (in):	0.875 in	Output Shaft Orientation:	LR
Output Shaft Assembly Code:	D	Input Diameter (in):	0.625 in
Model Code:	175Q	Assembly:	Q-LR
Output Shaft Direction:	Double	Housing Material:	Cast Iron
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	740 lb
Output Torque Rating (in-lb):	528 in-lbs @1750 input RPM in/lbs	UPC:	6, 62288E+11
Weight:	24.00 LB	Packaged Length:	10.69 Inches
Packaged Width:	9.06 Inches	Packaged Height:	10.5 Inches
