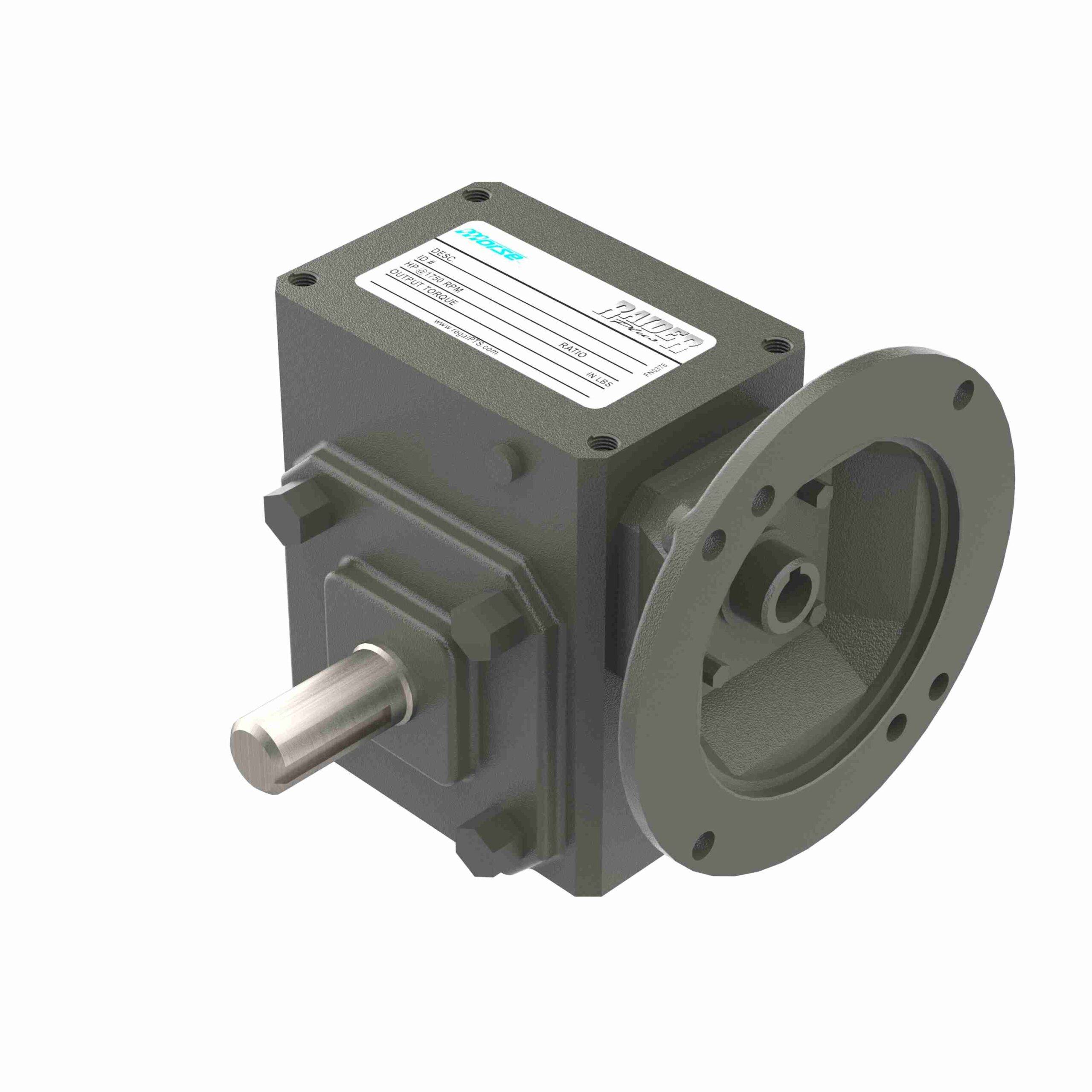

206Q56L40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Shaft Seal Material:	Nitrile
Input Keyway (C Face):	3/16 X 3/32	Input Bore (C Face):	0.625
Ratio:	40:1	Efficiency:	80
Motor Frame Size:	56C	Reducer Style:	Standard
Thrust Rating - output shaft:	2305	Center Distance (in):	2.06
Input RPM:	1, 750	Output Diameter (in):	1.000 in
Output RPM:	43.7	Mounting Style:	No Base
Service Factor:	1	Output Shaft Assembly Code:	L
Ratio Range:	40:1	Gear Type:	Worm
Model Code:	206Q	Product Type:	Worm Speed Reducer
No. of Gear Reductions:	Single	Input HP @ 1750 RPM:	0.76
Reducer:	Worm - Right Angle	Input Diameter (in):	0.625 in
Series Code:	Raider	Input Style:	C-Face Quill
Assembly:	Q-L	Frame Size:	56C
Output Key:	1/4 X 1.75	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	971 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Overhung Load Rating (Output Shaft(lb)):	1, 078 lb
UPC:	6, 62288E+11	Weight:	29.00 LB
Packaged Length:	10.69 Inches	Packaged Width:	9.06 Inches
Packaged Height:	10.5 Inches
