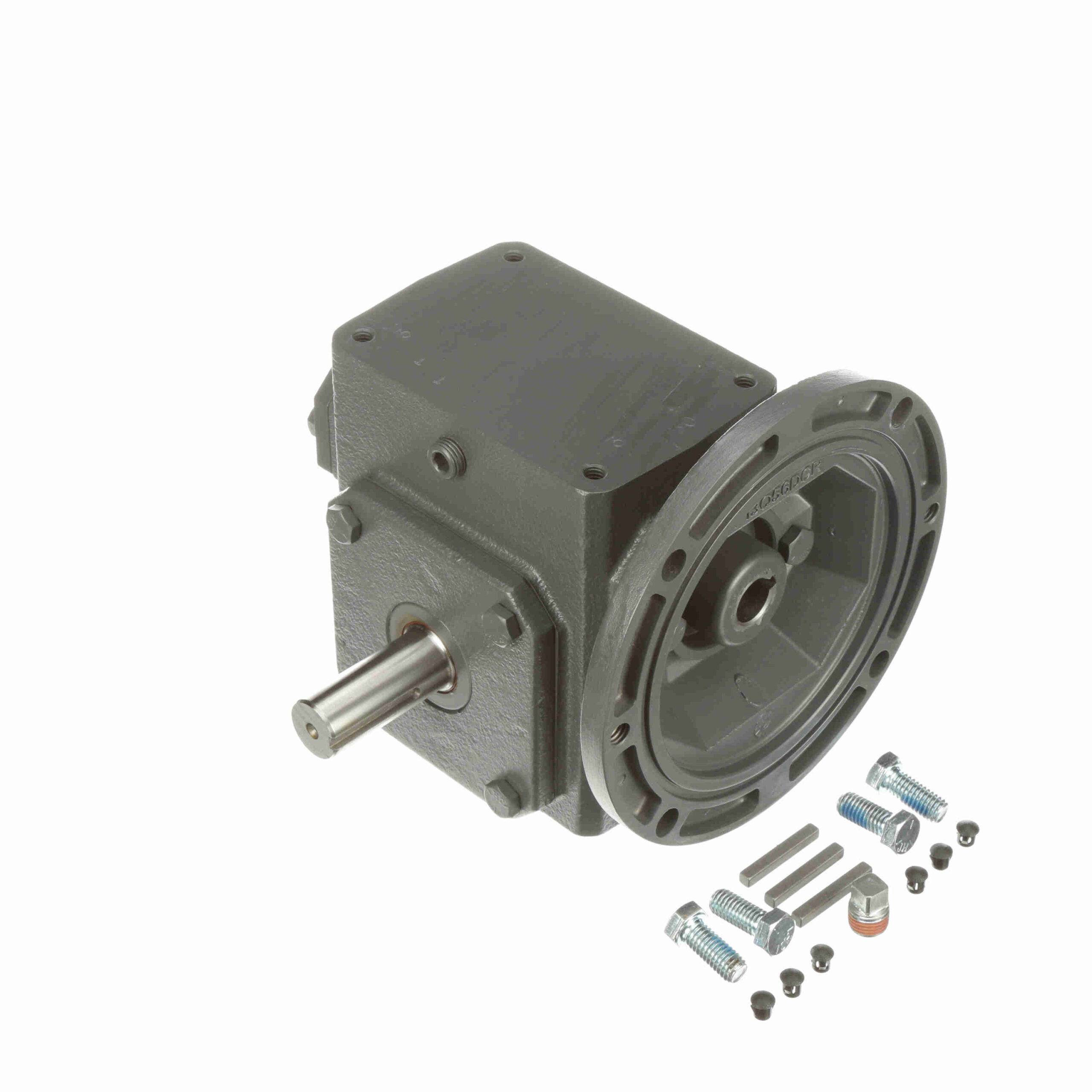

133Q56LR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Keyway (C Face):	3/16 X 3/32	Input Speed:	1750
Reducer Style:	Standard	Input Bore (C Face):	0.625
Shaft Seal Material:	Nitrile	Motor Frame Size:	56C
Thrust Rating - output shaft:	1399	Efficiency:	80
Ratio:	30:1	Output Shaft Assembly Code:	D
Gear Type:	Worm	Output Key:	3/16 X 1.31
Assembly:	Q-LR	Input HP @ 1750 RPM:	0.32
Output RPM:	58.3	Input Style:	C-Face Quill
Input Diameter (in):	0.625 in	Product Type:	Worm Speed Reducer
Frame Size:	56C	Service Factor:	1
Series Code:	Raider	Reducer:	Worm - Right Angle
No. of Gear Reductions:	Single	Model Code:	133Q
Ratio Range:	30:01:00	Center Distance (in):	1.33
Input RPM:	1, 75	Output Shaft Orientation:	LR
Mounting Style:	No Base	Output Diameter (in):	0.625 in
Output Shaft Direction:	Double	Output Torque Rating (in-lb):	314 in-lbs @1750 input RPM in/lbs
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	458 lb
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	17.00 LB
