- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
140 C/L C/P S/F

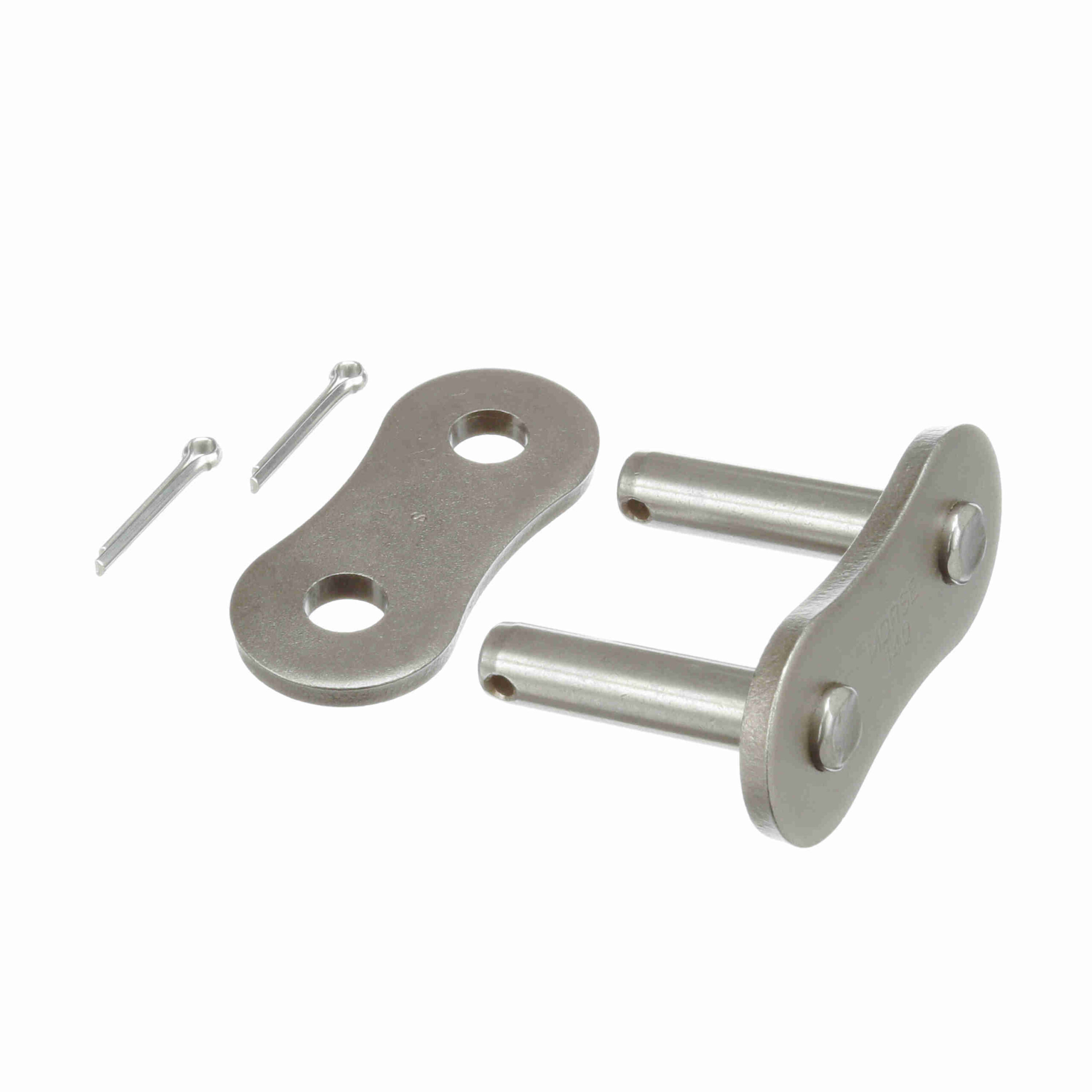

Morse Standard Roller Chain Cotter Pin Connecting Link – 140 C/L C/P S/F
$19.17
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 46, 000 | Material: | Steel |
|---|---|---|---|
| Width Over Pins/Total Width: | 2.117 | Plate Thickness: | 0.219 |
| Centerline to Outside of cotter Pin: | 1.215 | Inside Plate Height: | 1.634 |
| Connecting Link - Slip Fit: | Cotter | Centerline to Opposite cotter Pin Side: | 1.059 |
| Roller Diameter (in): | 1 in | Chain Size: | 140 |
| Side Plate Cfg.: | Hourglass | Pin Diameter (in): | 0.5 in |
| Number of Connecting Links Included: | 2 | Roller Width (in): | 1 in |
| Number of Strands/Width: | 1 | Chain Pitch (in): | 1.75 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288468400 | Weight: | 0.66 LB |
| Packaged Length: | 5.90 Inches | Packaged Width: | 3.60 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
