- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
140-3C 10.21FT

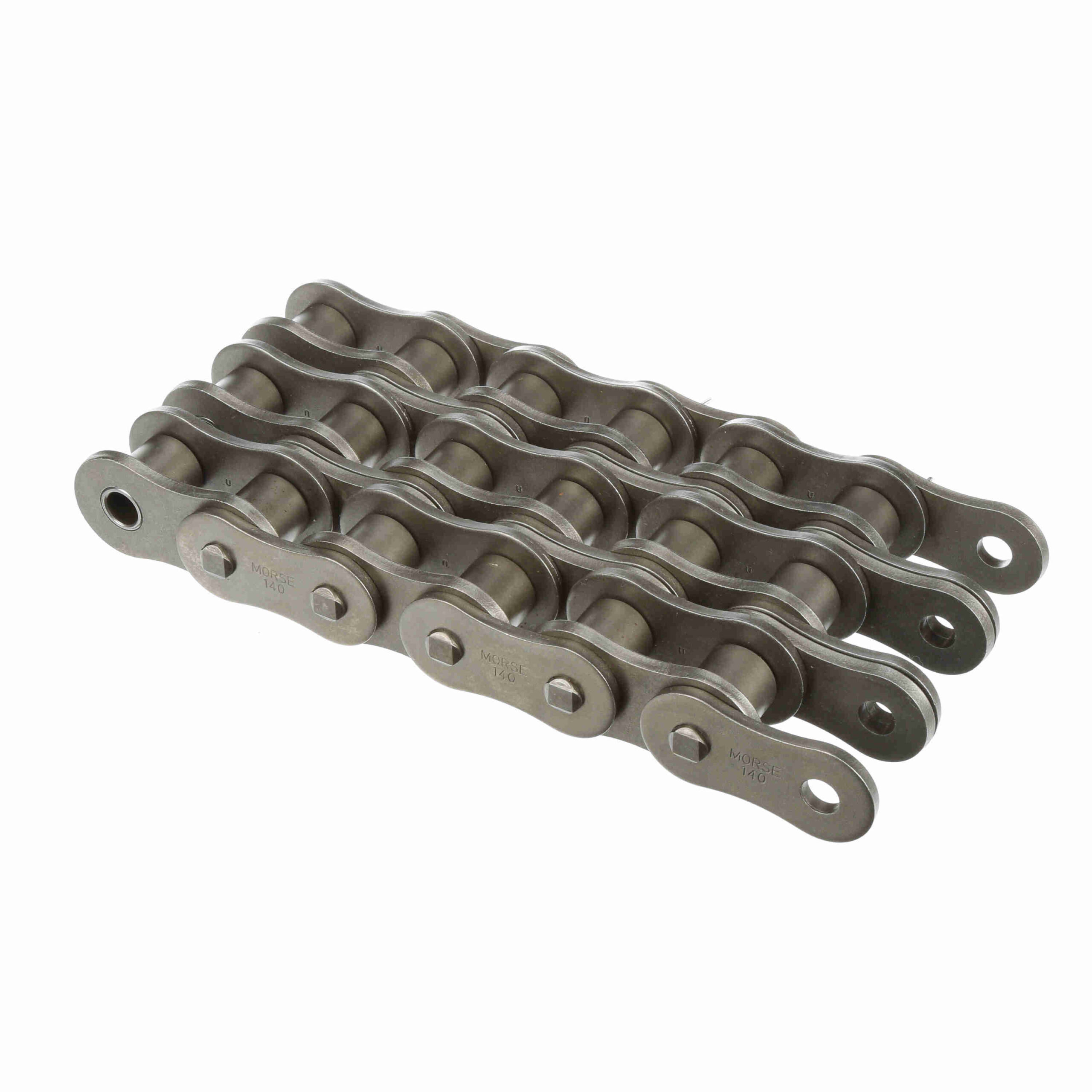

Morse Standard Cottered Roller Chain – 140-3C 10.21FT
$324.25
Out of stock
Out of stock
| Plate Thickness: | 0.219 | Number of Strands/Width: | 3 |
|---|---|---|---|
| Pin Diameter (in): | 0.5 in | Chain Construction: | Cottered |
| Side Plate Cfg.: | Hourglass | Width Over Pins/Total Width: | 5.965 |
| Centerline to Opposite cotter Pin Side: | 2.982 | Roller Diameter (in): | 1 in |
| Number of Connecting Links Included: | 1 | Material: | Steel |
| Inside Plate Height: | 1.634 | Chain Size: | 140 |
| Center Plates: | Loose Fit, Press Fit Optional | Average Ultimate Tensile Strength (psi): | 138, 000 |
| Centerline to Outside of cotter Pin: | 3.156 | Roller Width (in): | 1 in |
| Total Length: | 10.21 FT ft | Chain Pitch (in): | 1.75 in |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Coating: | Uncoated | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 1.924 |
| Pin Length - Riveted: | 5.965 | UPC: | 662288455578 |
| Weight: | 14.63 LB | Packaged Length: | 19.00 Feet |
| Packaged Width: | 16.00 Feet | Packaged Height: | 8.00 Feet |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
