- Morse offers a wide range of corrosion resistant chain
- Moisture Guard chain has corrosion protection with high stength and and wear resistant
120MG R 10FT

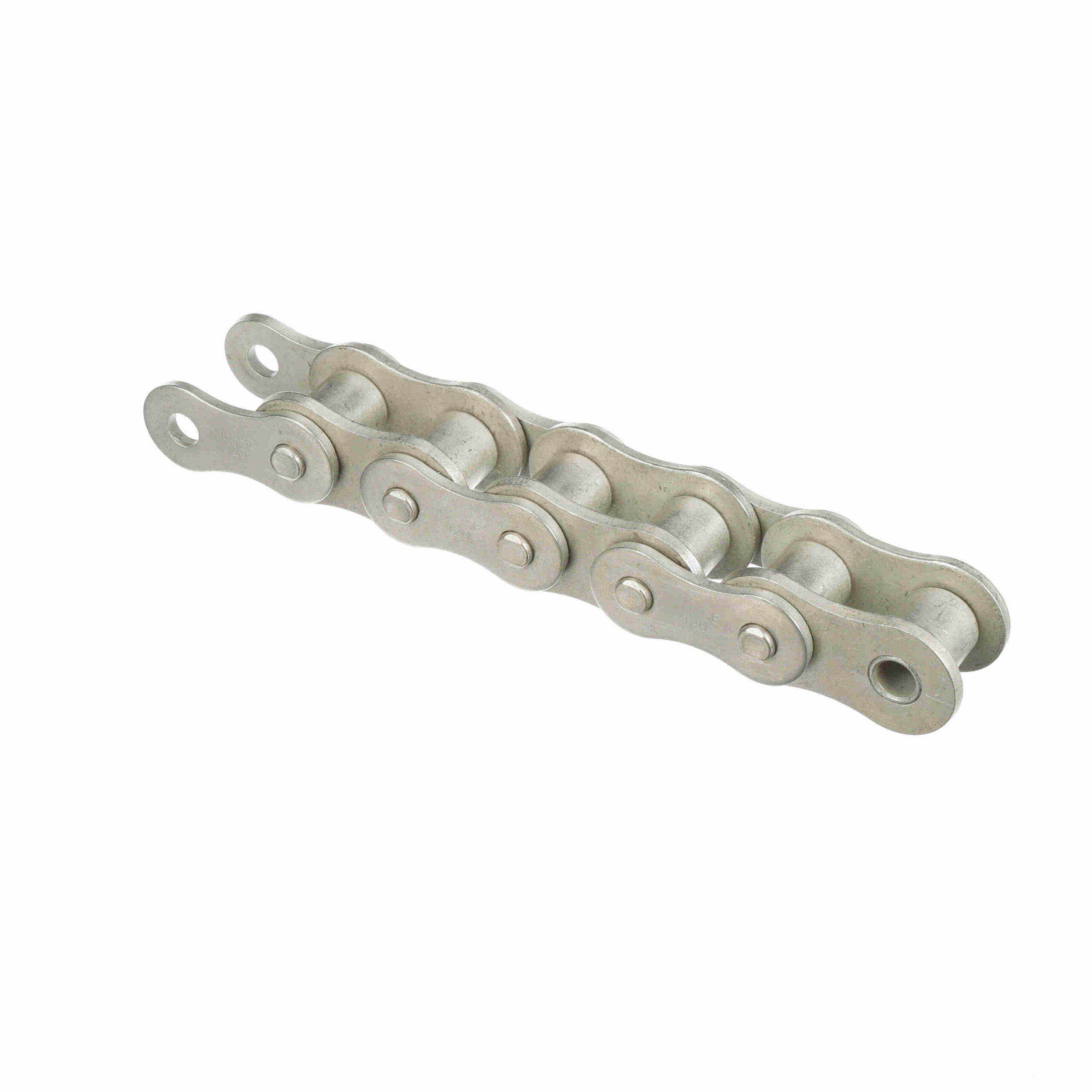

Morse Standard Riveted Roller Chain – 120MG R 10FT
$216.83
Out of stock
Out of stock
| Centerline to Opposite cotter Pin Side: | 0.98 | Material: | Steel |
|---|---|---|---|
| Number of Connecting Links Included: | 5 | Roller Width (in): | 1 in |
| Roller Diameter (in): | 0.875 in | Width Over Pins/Total Width: | 1.96 |
| Plate Thickness: | 0.187 | Inside Plate Height: | 1.4 |
| Centerline to Outside of cotter Pin: | 1.15 | Pin Diameter (in): | 0.437 in |
| Number of Strands/Width: | 1 | Average Ultimate Tensile Strength (psi): | 34, 000 |
| Chain Construction: | Riveted | Chain Size: | 120 |
| Side Plate Cfg.: | Hourglass | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 1.5 in |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 1.96 | UPC: | 662288943211 |
| Weight: | 3.91 LB | Packaged Length: | 15.00 Inches |
| Packaged Width: | 14.80 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
