- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
120HC 10FT

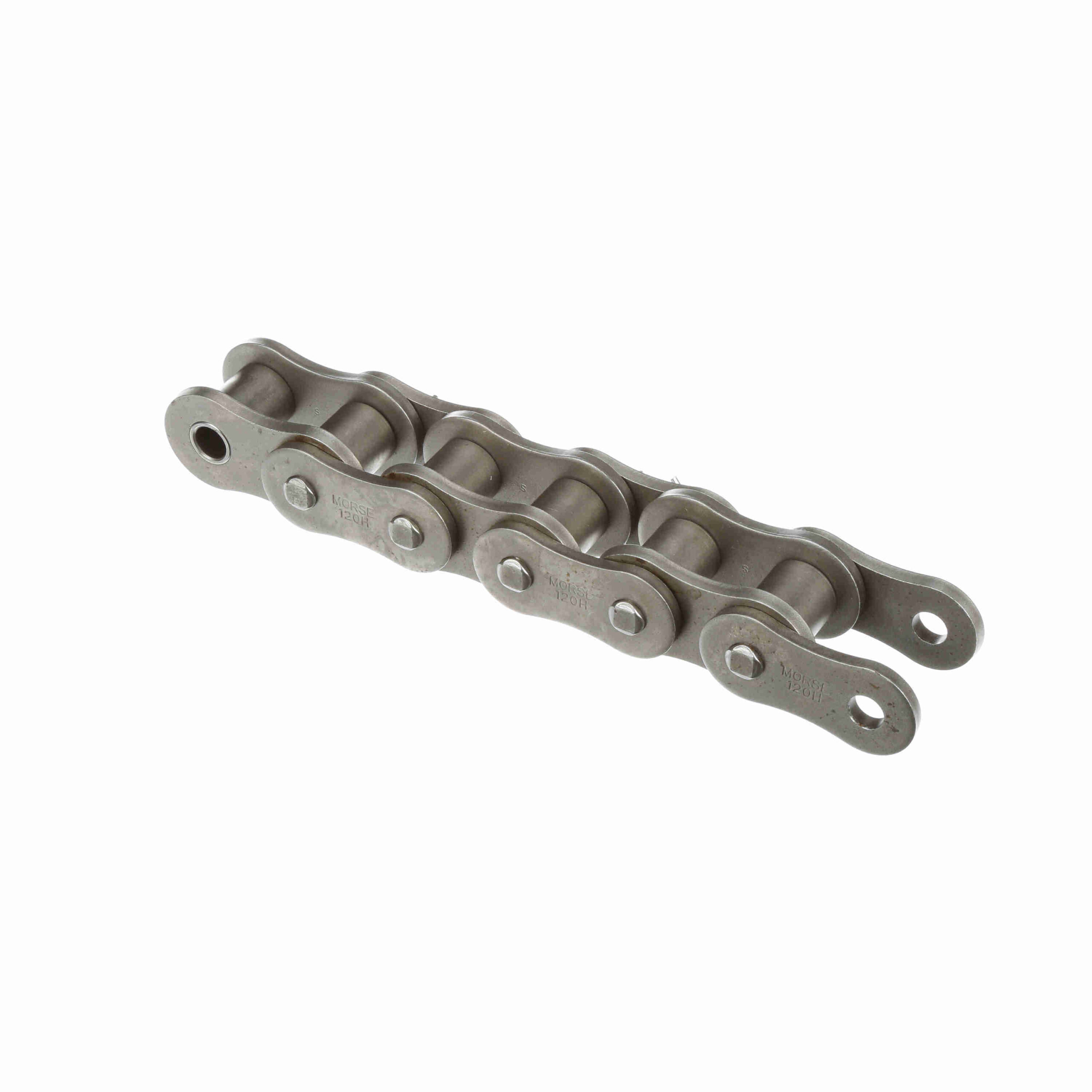

Morse Heavy Cottered Roller Chain – 120HC 10FT
$75.76
Out of stock
Out of stock
| Material: | Steel | Chain Construction: | Cottered |
|---|---|---|---|
| Roller Diameter (in): | 0.875 in | Number of Connecting Links Included: | 1 |
| Plate Thickness: | 0.219 | Inside Plate Height: | 1.4 |
| Centerline to Outside of cotter Pin: | 1.214 | Chain Size: | 120 |
| Width Over Pins/Total Width: | 2.09 | Average Ultimate Tensile Strength (psi): | 34, 000 |
| Roller Width (in): | 1 in | Side Plate Cfg.: | Hourglass |
| Number of Strands/Width: | 1 | Centerline to Opposite cotter Pin Side: | 1.045 |
| Pin Diameter (in): | 0.437 in | Product Type: | Roller Chain |
| Chain Type: | Heavy | Chain Pitch (in): | 1.5 in |
| Coating: | Uncoated | Total Length: | 10 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 2.09 | UPC: | 662288455790 |
| Weight: | 4.52 LB | Packaged Length: | 14.70 Inches |
| Packaged Width: | 15.00 Inches | Packaged Height: | 2.70 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
