- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
120H O/L

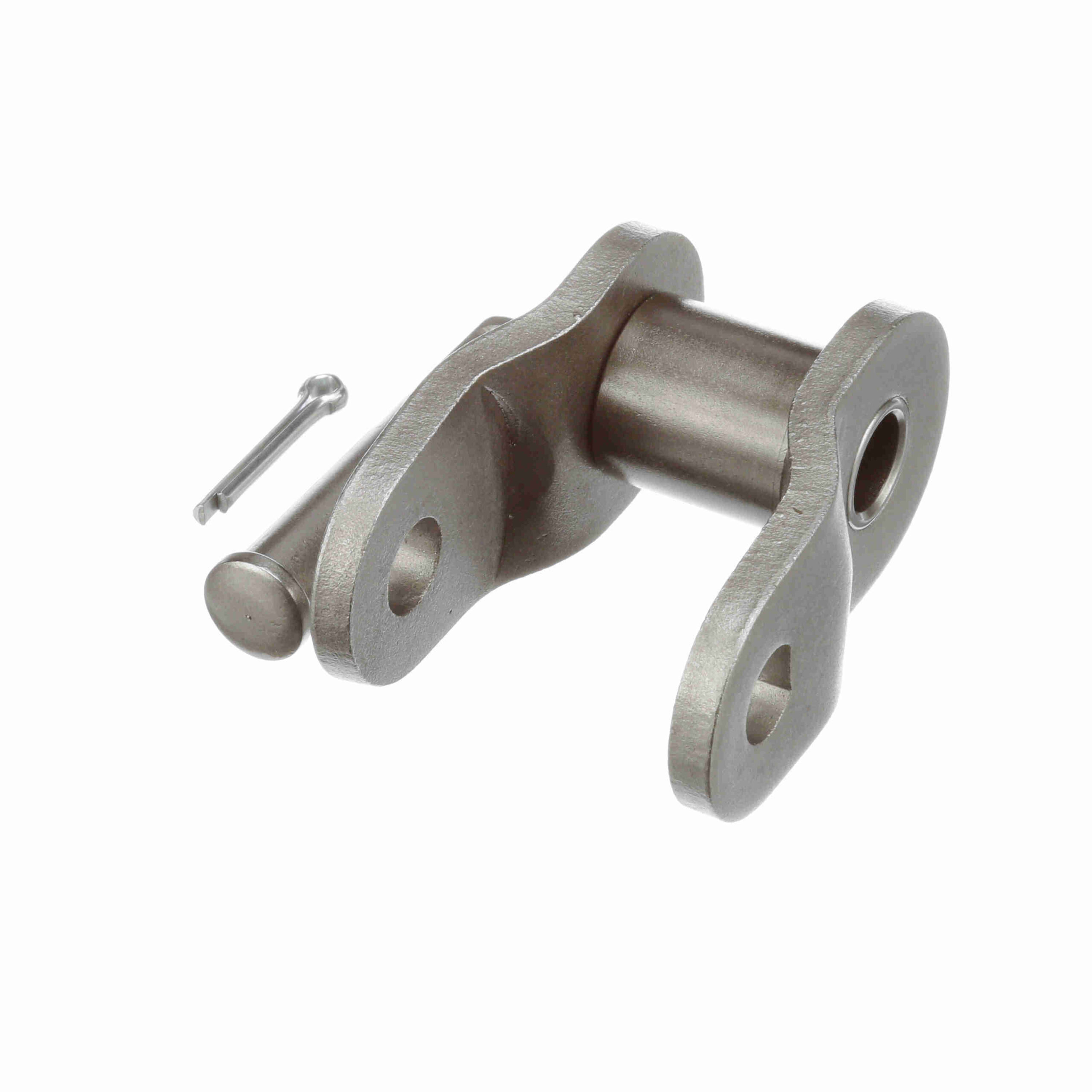

Morse Heavy Roller Chain Offset Link – 120H O/L
$35.20
Out of stock
Out of stock
| Plate Thickness: | 0.219 | Chain Size: | 120 |
|---|---|---|---|
| Material: | Steel | Centerline to Outside of cotter Pin: | 1.214 |
| Roller Diameter (in): | 0.875 in | Number of Strands/Width: | 1 |
| Width Over Pins/Total Width: | 2.09 | Average Ultimate Tensile Strength (psi): | 34, 000 |
| Side Plate Cfg.: | Hourglass | Pin Diameter (in): | 0.437 in |
| Single Pitch Offset Link: | Cottered | Roller Width (in): | 1 in |
| Inside Plate Height: | 1.4 | Centerline to Opposite cotter Pin Side: | 1.045 |
| Product Type: | Roller Chain | Chain Type: | Heavy |
| Chain Pitch (in): | 1.5 in | Link Type: | Offset Link |
| UPC: | 662288456377 | Weight: | 0.57 LB |
| Packaged Length: | 4.10 Inches | Packaged Width: | 3.30 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
