- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
120H-2R 10FT

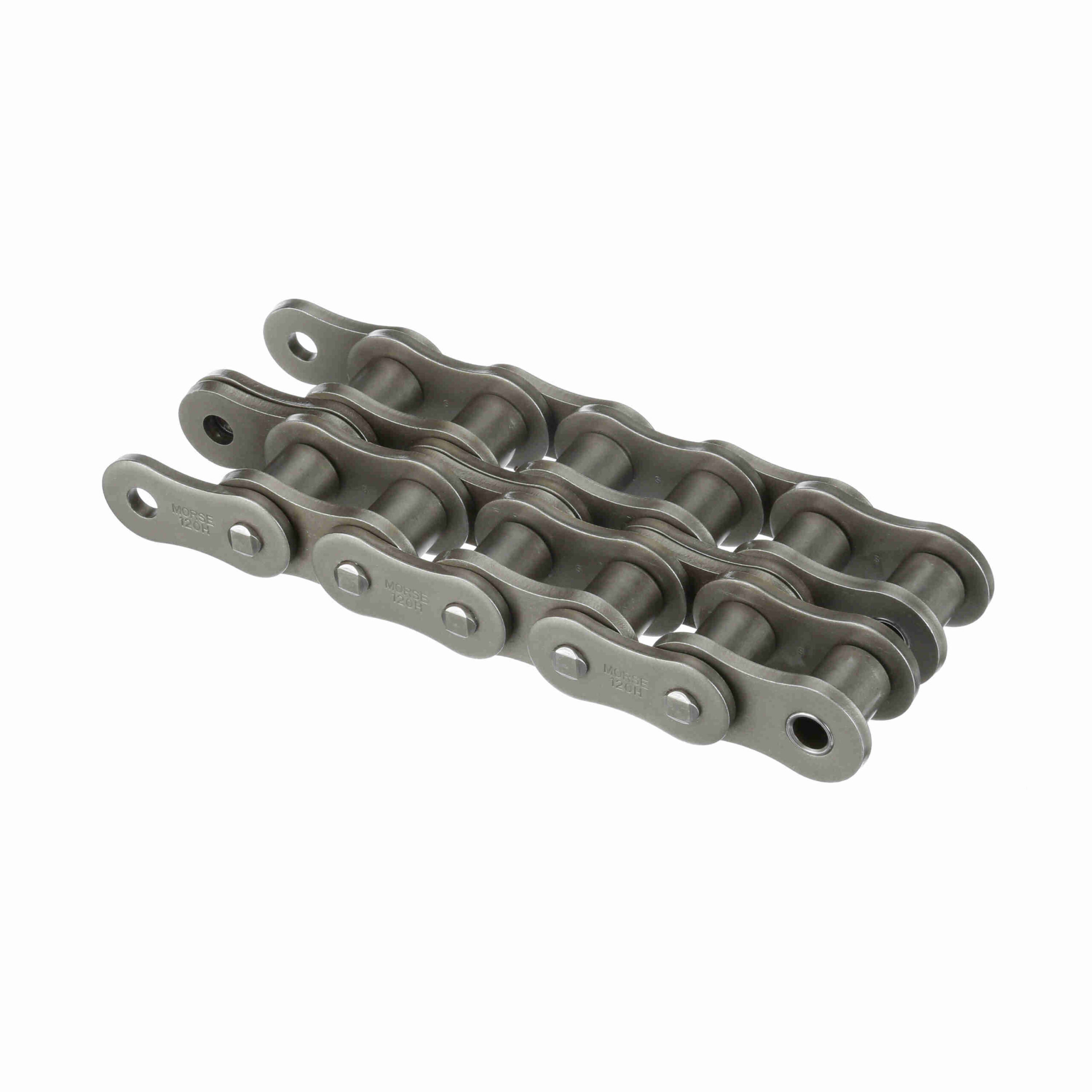

Morse Heavy Riveted Roller Chain – 120H-2R 10FT
$220.40
Out of stock
Out of stock
| Chain Size: | 120 | Number of Connecting Links Included: | 1 |
|---|---|---|---|
| Roller Diameter (in): | 0.875 in | Pin Diameter (in): | 0.437 in |
| Material: | Steel | Centerline to Opposite cotter Pin Side: | 2.009 |
| Center Plates: | Loose Fit, Press Fit Optional | Number of Strands/Width: | 2 |
| Chain Construction: | Riveted | Side Plate Cfg.: | Hourglass |
| Inside Plate Height: | 1.4 | Width Over Pins/Total Width: | 4.019 |
| Roller Width (in): | 1 in | Plate Thickness: | 0.219 |
| Centerline to Outside of cotter Pin: | 2.179 | Average Ultimate Tensile Strength (psi): | 68, 000 |
| Chain Type: | Heavy | Product Type: | Roller Chain |
| Chain Pitch (in): | 1.5 in | Total Length: | 10 FT ft |
| Coating: | Uncoated | Measurement System: | Imperial |
| Transverse Pitch: | 1.924 | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 4.019 | UPC: | 662288860235 |
| Weight: | 8.40 LB | Packaged Length: | 16.00 Inches |
| Packaged Width: | 18.75 Inches | Packaged Height: | 5.50 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
