- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
120 O/L

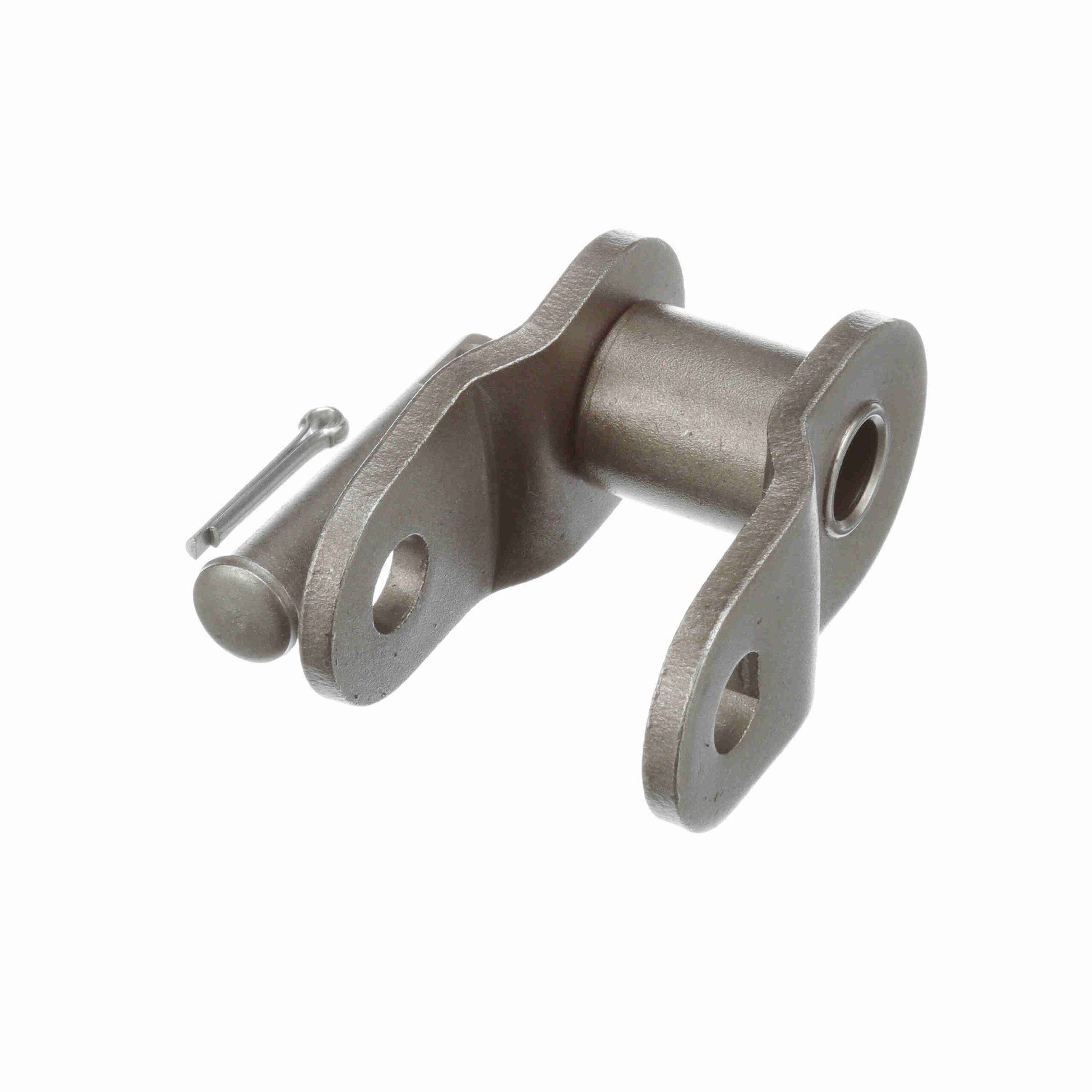

Morse Standard Roller Chain Offset Link – 120 O/L
$30.16
Out of stock
Out of stock
| Width Over Pins/Total Width: | 1.96 | Number of Strands/Width: | 1 |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 34, 000 | Pin Diameter (in): | 0.437 in |
| Inside Plate Height: | 1.4 | Centerline to Opposite cotter Pin Side: | 0.98 |
| Single Pitch Offset Link: | Cottered | Plate Thickness: | 0.187 |
| Side Plate Cfg.: | Hourglass | Material: | Steel |
| Chain Size: | 120 | Centerline to Outside of cotter Pin: | 1.15 |
| Roller Diameter (in): | 0.875 in | Roller Width (in): | 1 in |
| Chain Pitch (in): | 1.5 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Link Type: | Offset Link |
| UPC: | 662288395584 | Weight: | 0.50 LB |
| Packaged Length: | 3.10 Inches | Packaged Width: | 2.80 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
