- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
120-2 C/L C/P S/F

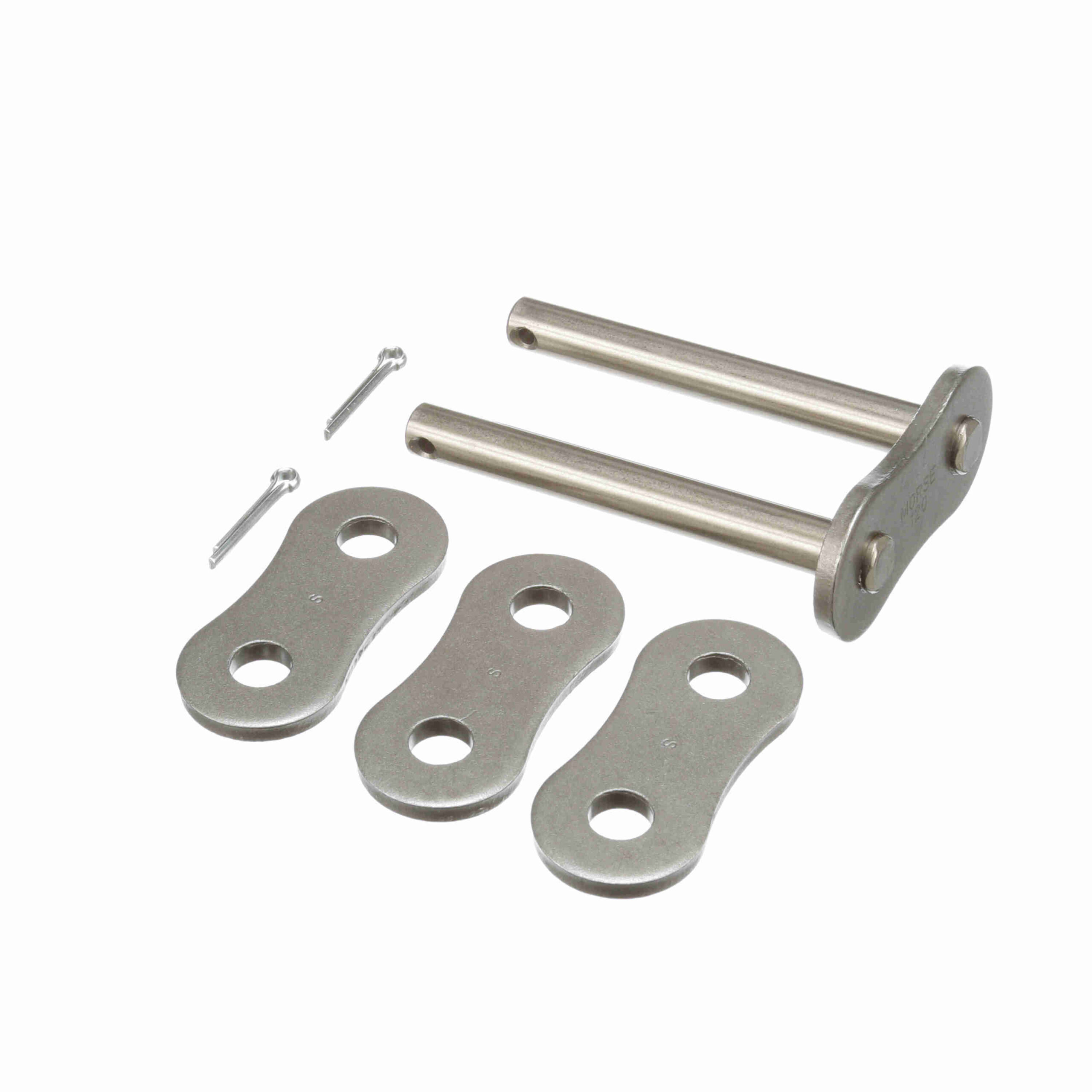

Morse Standard Roller Chain Cotter Pin Connecting Link – 120-2 C/L C/P S/F
$30.31
Out of stock
Out of stock
| Number of Strands/Width: | 2 | Roller Width (in): | 1 in |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 68, 000 | Inside Plate Height: | 1.4 |
| Roller Diameter (in): | 0.875 in | Side Plate Cfg.: | Hourglass |
| Connecting Link - Slip Fit: | Cotter | Centerline to Outside of cotter Pin: | 2.047 |
| Width Over Pins/Total Width: | 3.749 | Material: | Steel |
| Pin Diameter (in): | 0.437 in | Plate Thickness: | 0.187 |
| Centerline to Opposite cotter Pin Side: | 1.874 | Chain Size: | 120 |
| Number of Connecting Links Included: | 2 | Chain Type: | Standard |
| Chain Pitch (in): | 1.5 in | Product Type: | Roller Chain |
| UPC: | 662288468479 | Weight: | 1.27 LB |
| Packaged Length: | 5.60 Inches | Packaged Width: | 2.95 Inches |
| Packaged Height: | 1.80 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
