- Single Taper Bushing: Exclusive single TorqTaper Bushing installs from driving side of the unit for easy on – easy off mounting.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Standard Seals: Commercially available double lip seals ride on plunge ground shafts.
- Options and Accessories: Complete range of motor mounts, belt guards, fan kits and backstop options.
415SMTP25B

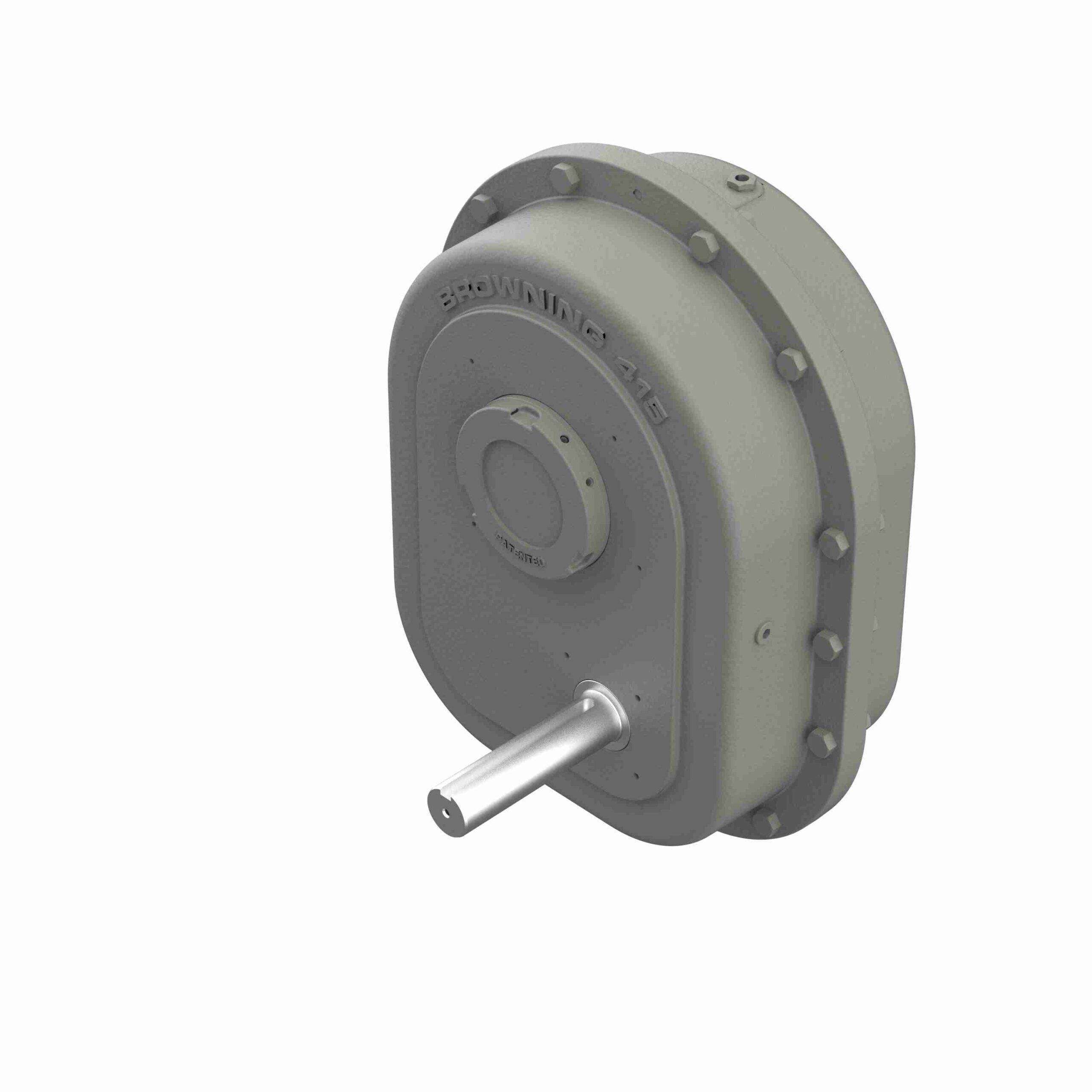

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 415SMTP25B
$70,116.99
Out of stock
Out of stock
| Product Type: | TorqTaper Plus (SMTPB) | Bolt Size (in): | 0.75 in |
|---|---|---|---|
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Ratio: | 25:1 |
| Input Speed: | 1750 | Output Speed: | 70 |
| Efficiency: | 80 | Standards met: | AGMA |
| Housing Height (in): | 31.8 in | Housing Width (in): | 25.04 in |
| Housing Length (in): | 16.78 in | Maximum Output Size (in): | 4.9375 in |
| Gear Type: | Helical | Mounting Style: | Shaft mount |
| Input Style: | Shaft | Maximum Output Bore: | 4.9375 |
| Ratio Range: | 25:1 | Reducer Size: | 415 |
| Maximum Output RPM: | 80 | Reduction: | Double |
| Output Bore: | Tapered Bushing | Drive Type: | Torque Arm |
| Input Shaft Diameter: | 2.375 | Output Shaft: | Tapered Bore |
| Housing Material: | Cast Iron | Input Shaft Keyseat (in): | 5/8 Sq. X 8 3/8 in |
| Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs | UPC: | 662460575605 |
| Weight: | 954.00 LB | Packaged Length: | 23.81 Inches |
| Packaged Width: | 25.04 Inches | Packaged Height: | 31.8 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
