- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
115SMTP09

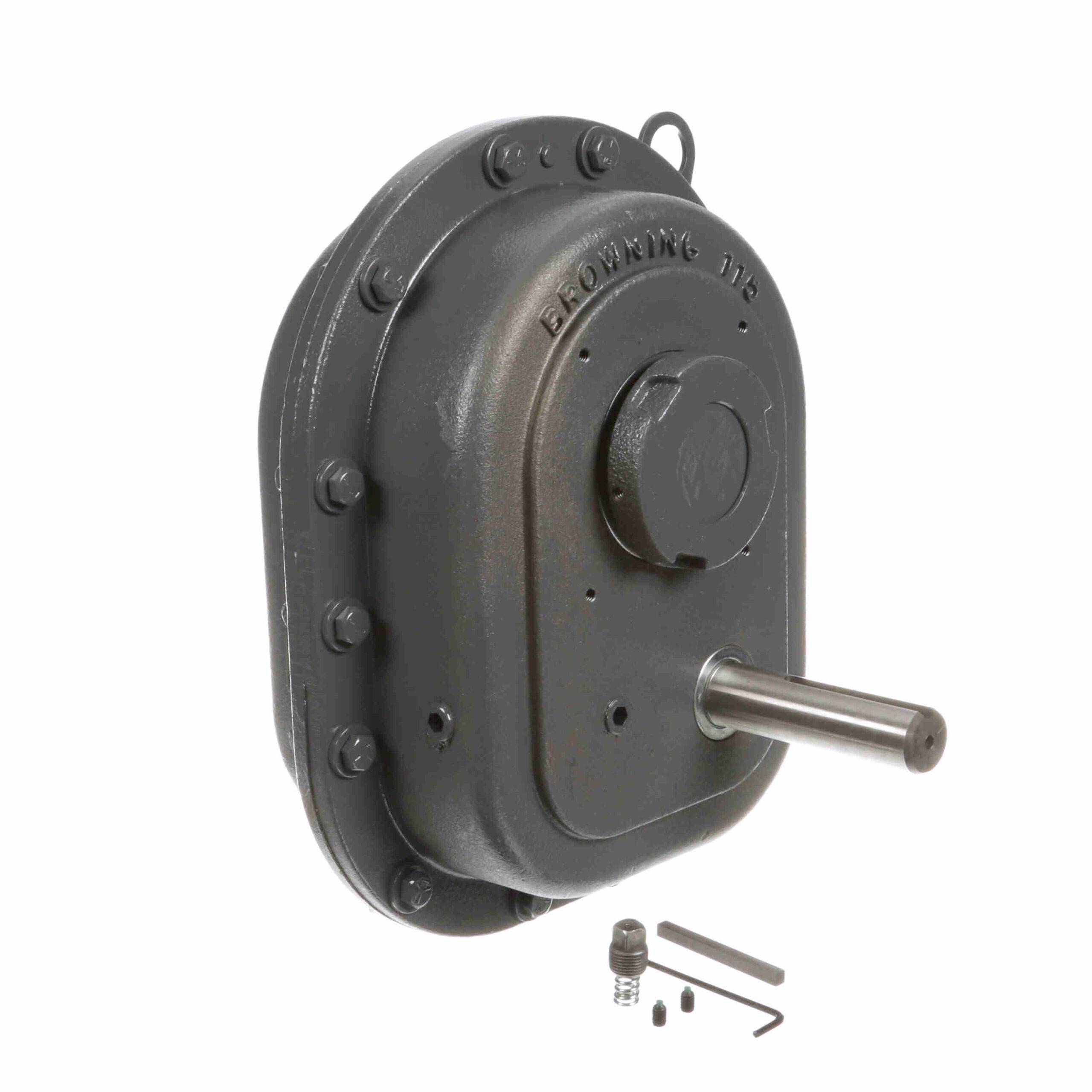

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 115SMTP09
$5,928.58
Out of stock
Out of stock
| Input Speed: | 1750 | Product Type: | TorqTaper Plus (SMTP) |
|---|---|---|---|
| Bolt Size (in): | 0.375 in | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Efficiency: | 80 | Output Speed: | 17 |
| Ratio: | 9:1 | Housing Width (in): | 11 in |
| Housing Height (in): | 14.08 in | Standards met: | AGMA |
| Housing Length (in): | 8.36 in | Maximum Output Size (in): | 1.9375 in |
| Maximum Output Bore: | 1.9375 | Input Style: | Shaft |
| Reducer Size: | 115 | Mounting Style: | Shaft mount |
| Ratio Range: | 10:1 | Gear Type: | Helical |
| Output Bore: | Tapered Bushing | Reduction: | Double |
| Maximum Output RPM: | 200 | Drive Type: | Torque Arm |
| Input Shaft Diameter: | 1.125 | Output Torque Rating (in-lb): | 3707.29 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Output Shaft: | Tapered Bore | Housing Material: | Cast Iron |
| Input Shaft Keyseat (in): | .250 x .250 x 2.75 in | UPC: | 662288910183 |
| Weight: | 75.00 LB | Packaged Length: | 18.5 Inches |
| Packaged Width: | 13 Inches | Packaged Height: | 13.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
