- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
115HMTP25 9T SAE-A 2

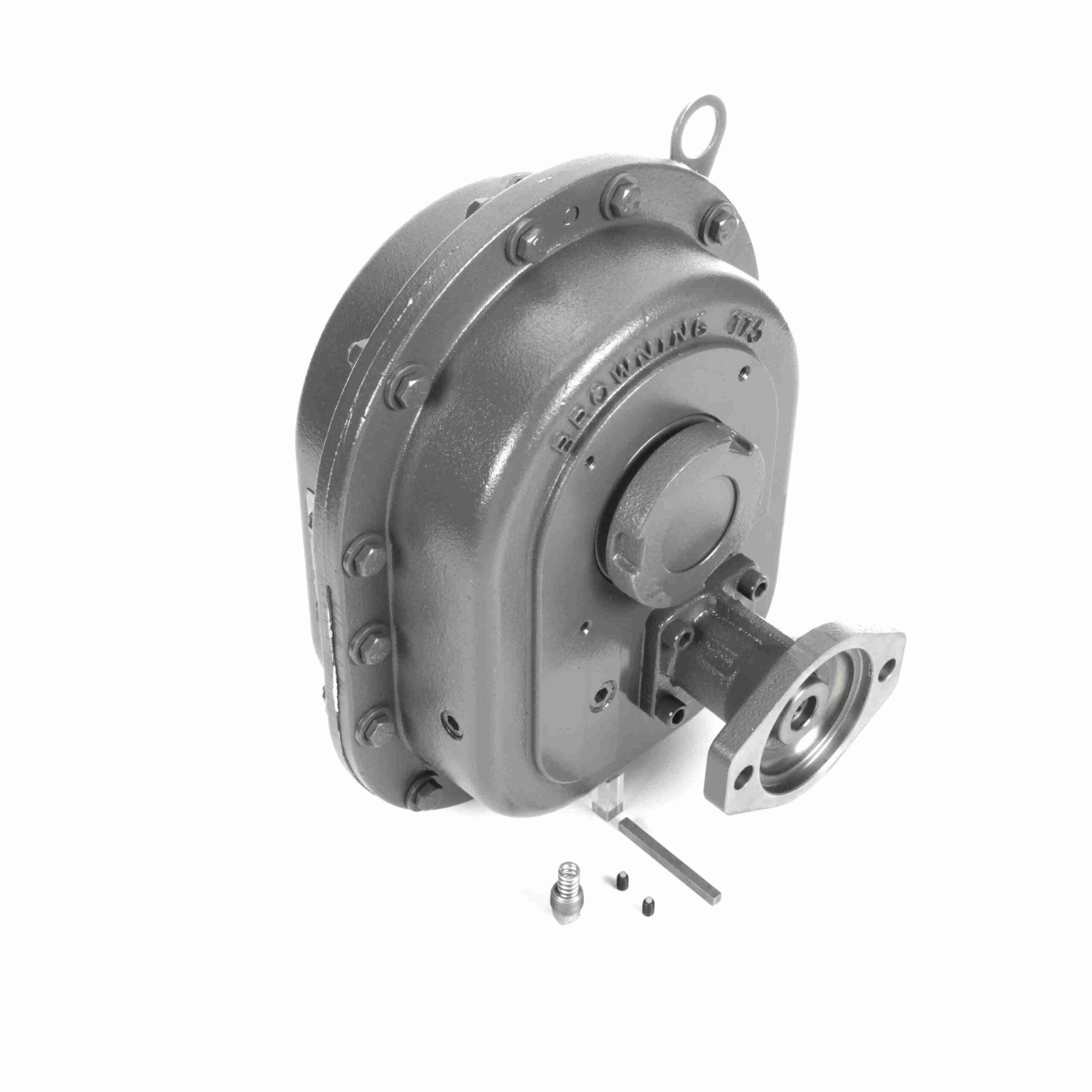

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 115HMTP25 9T SAE-A 2
$7,238.85
Out of stock
Out of stock
| Output Speed: | 70 | Input Speed: | 1750 |
|---|---|---|---|
| Product Type: | Hydraulic TorqTaper Plus (HMTP) | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Ratio: | 25:1 | Efficiency: | 80 |
| Bolt Size (in): | 0.375 in | Input Style: | Hydraulic Adapter |
| Reducer Size: | 115 | Gear Type: | Helical |
| Ratio Range: | 25:1 | Maximum Output Bore: | 1.9375 |
| Mounting Style: | Shaft mount | Input Shaft Diameter: | 5/8" 9T |
| Output Shaft: | Tapered Bore | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs | UPC: | 662460540849 |
| Weight: | 79.00 LB | Packaged Length: | 9.96 Inches |
| Packaged Width: | 11 Inches | Packaged Height: | 14.08 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
