- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Standard Seals: Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, trough ends and screw conveyor sealing options.
107DSP207-3

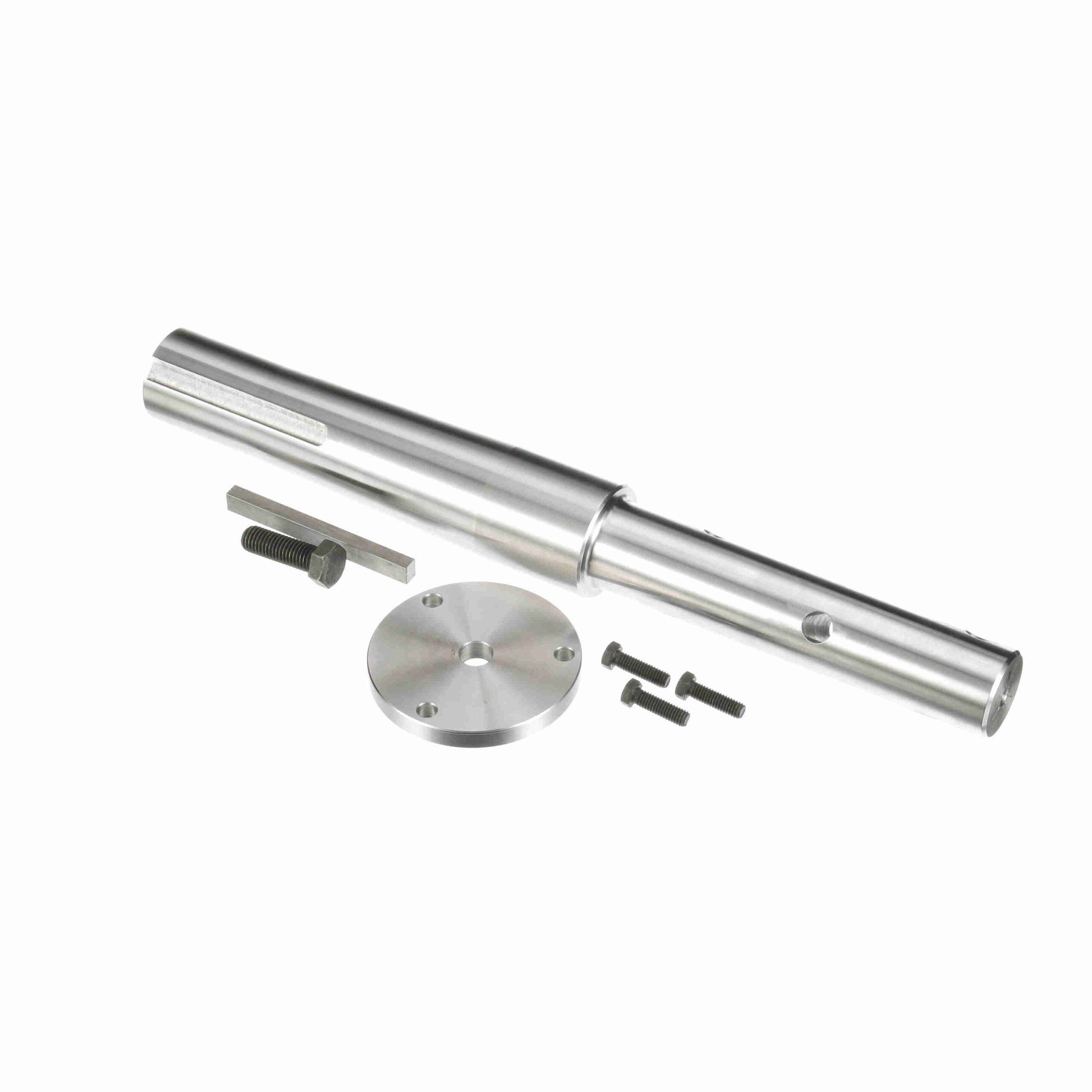

Browning Torque Taper Plus Shaft Mount Reducers Screw Conveyor Accessory – 107DSP207-3
$1,002.86
Out of stock
Out of stock
| Screw Diameter: | 12, 14 | Key: | .188 x .188 x 2.88 |
|---|---|---|---|
| Product Type: | TorqTaper Plus (SMTP) | Reducer Size: | 107 |
| Used Ratio: | 5:1, 9:1, 15:1, 25:1 or 35:1 | Drive Shaft Diameter: | 2.4375 in |
| Distance between Shaft holes (in): | 3 in | Series: | 107DSP |
| Hole Diameter (in): | 0.6563 in | Housing Material: | Steel |
| Accessory Type: | Screw Conveyor Accessories | Shaft Projecting Length (in): | 9.69 in |
| UPC: | 662460492094 | Weight: | 15.60 LB |
| Packaged Length: | 2.5 Inches | Packaged Width: | 20 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8483.90.5090 |
| Country of Origin: | United States of America |
