- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
100R45

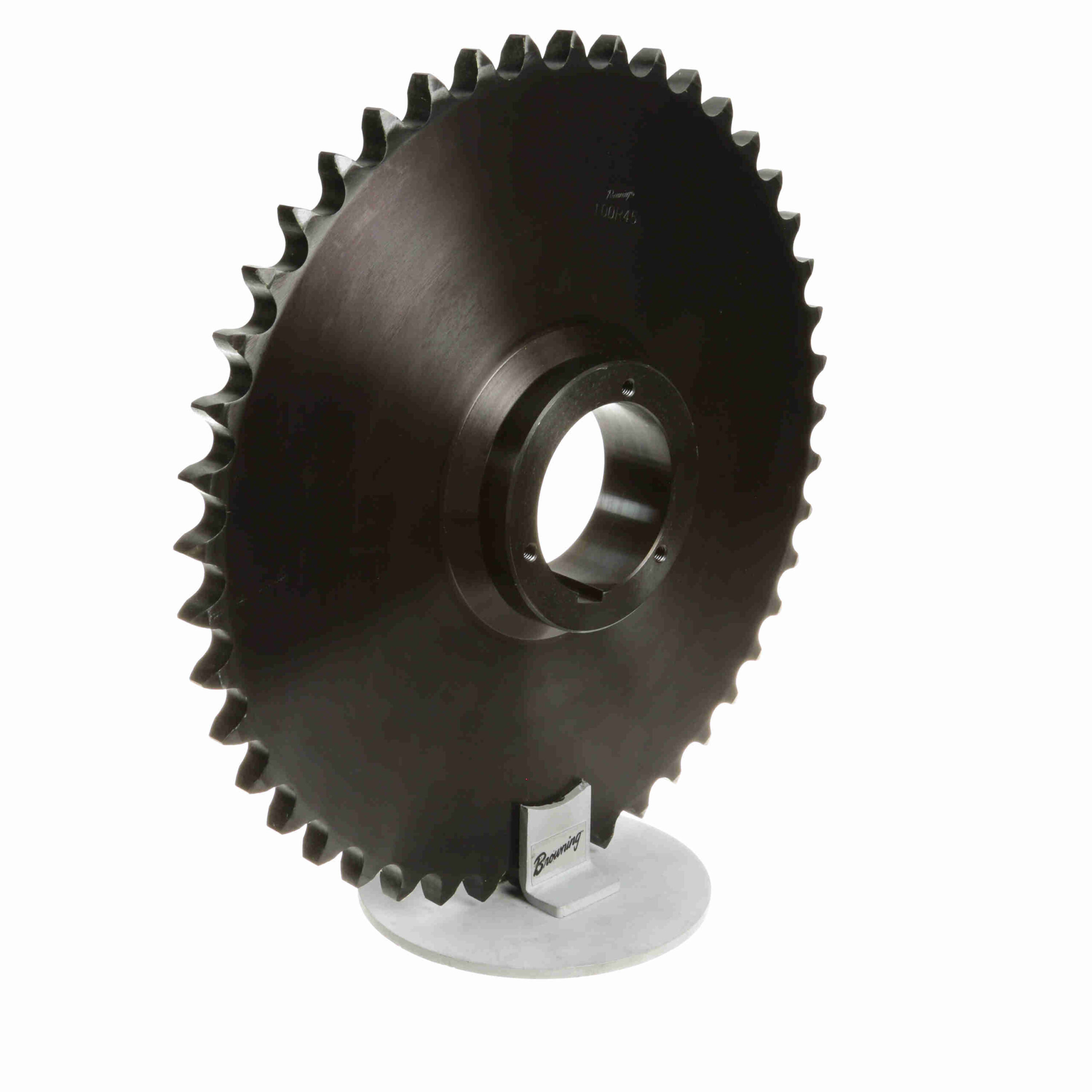

Browning Steel Bushed Bore Roller Chain Sprocket – 100R45
$1,141.75
Out of stock
Out of stock
| Chain Pitch (in): | 1.25 in | Material: | Steel |
|---|---|---|---|
| Number of teeth: | 45 | Bushing Used: | Split Taper |
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Bore (Max) (in): | 3.75 in |
| Bore (Min) (in): | 1.125 in | Product Type: | Bushed Roller Chain Sprocket |
| Pitch Diameter (in): | 17.919 in | Outside Diameter (in): | 18.645 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Width Across Tooth Sets: | 0.692 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289197545 |
| Weight: | 53.70 LB | Packaged Length: | 18.63 Inches |
| Packaged Width: | 18.63 Inches | Packaged Height: | 3.16 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
