- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
100H C/L C/P S/F

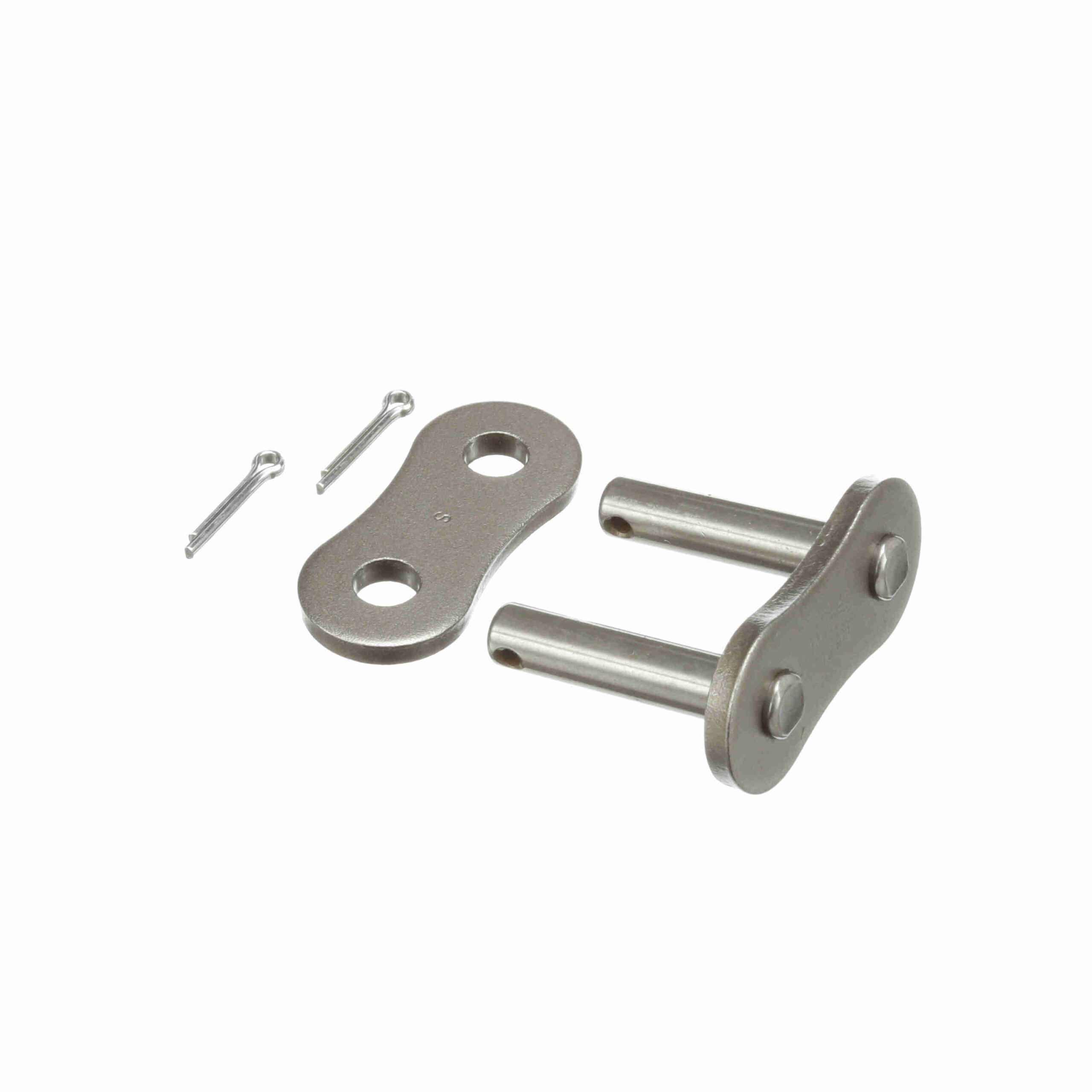

Morse Heavy Roller Chain Cotter Pin Connecting Link – 100H C/L C/P S/F
$12.51
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 24, 000 | Material: | Steel |
|---|---|---|---|
| Plate Thickness: | 0.187 | Centerline to Opposite cotter Pin Side: | 0.842 |
| Roller Width (in): | 0.75 in | Roller Diameter (in): | 0.75 in |
| Number of Connecting Links Included: | 2 | Centerline to Outside of cotter Pin: | 0.986 |
| Side Plate Cfg.: | Hourglass | Connecting Link - Slip Fit: | Cotter |
| Width Over Pins/Total Width: | 1.684 | Chain Size: | 100 |
| Pin Diameter (in): | 0.375 in | Inside Plate Height: | 1.166 |
| Number of Strands/Width: | 1 | Chain Type: | Heavy |
| Chain Pitch (in): | 1.25 in | Product Type: | Roller Chain |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288562597 | Weight: | 0.28 LB |
| Packaged Length: | 3.90 Inches | Packaged Width: | 3.40 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
