- 60Q39 ROLLER CHAIN SPROCKET
- 60 Chain, 39 Teeth, 1 Row of Teeth, No Hardened Teeth, 9.74″ Outside Dia, 9.321″ Pitch Dia, B-Hub One Side, Bushed Mount, Q1 Bushing, 3/4″ Chain Pitch, ANSI Roller Chain Chain Type, Keyway, Steel Material
- Available in package quantities or via quick-turnaround cut-to-length
100-6C 10FT

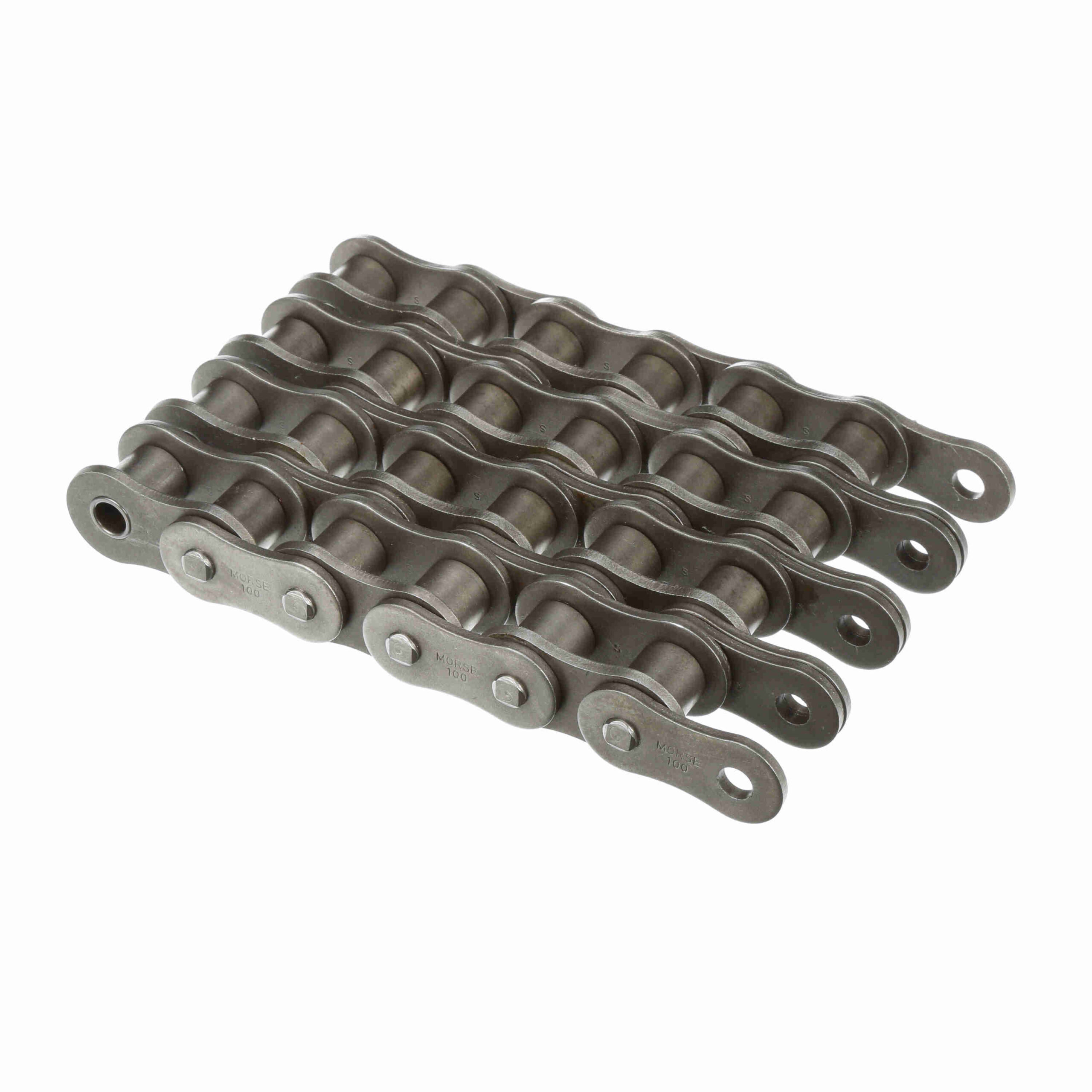

Morse Roller Chain Sprocket Split Taper Bushing – 100-6C 10FT
$415.66
Out of stock
Out of stock
| Center Plates: | Loose Fit, Press Fit Optional | Pin Length - Riveted: | 10.905 |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 204, 000 | Total Length: | 10 ft ft |
| Chain Construction: | Cottered | Width Over Pins/Total Width: | 10.905 |
| Product Type: | Roller Chain | Measurement System: | Imperial |
| Number of Strands/Width: | 6 | Number of Connecting Links Included: | 1 |
| Chain Pitch (in): | 1.5 in | Chain Size: | 100 |
| Side Plate Cfg.: | Hourglass | Centerline to Opposite cotter Pin Side: | 5.452 |
| Material: | Steel | Roller Diameter (in): | 0.875 in |
| Plate Thickness: | 0.187 | Standard Met: | ANSI B29.1 |
| Inside Plate Height: | 1.4 | Roller Width (in): | 1 in |
| Pin Diameter (in): | 0.437 in | Chain Type: | Standard |
| Coating: | Uncoated | Centerline to Outside of cotter Pin: | 5.623 |
| UPC: | 662288459743 | Weight: | 15.16 LB |
| Packaged Length: | 15.50 Inches | Packaged Width: | 12.50 Inches |
| Packaged Height: | 10.00 Inches | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
Related products
60 C/L S/C S/F
$2.59More InfoMorse Standard Roller Chain Spring Clip Connecting Link – 60 C/L S/C S/F
