- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
100-3R 10FT

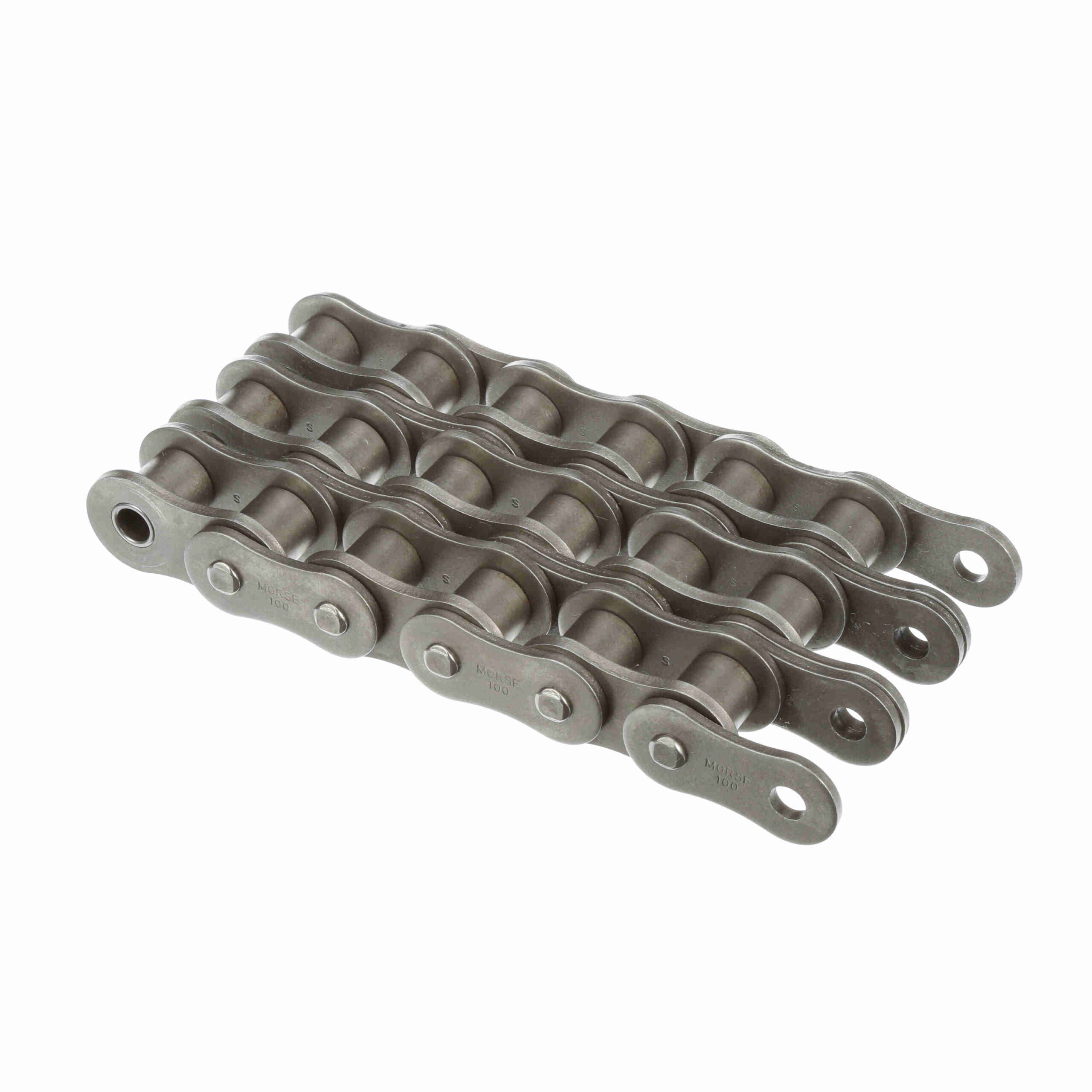

Morse Standard Riveted Roller Chain – 100-3R 10FT
$164.49
Out of stock
Out of stock
| Plate Thickness: | 0.156 | Centerline to Outside of cotter Pin: | 2.329 |
|---|---|---|---|
| Pin Diameter (in): | 0.375 in | Number of Connecting Links Included: | 1 |
| Center Plates: | Loose Fit, Press Fit Optional | Chain Size: | 100 |
| Roller Diameter (in): | 0.75 in | Roller Width (in): | 0.75 in |
| Chain Construction: | Riveted | Width Over Pins/Total Width: | 4.371 |
| Material: | Steel | Number of Strands/Width: | 3 |
| Average Ultimate Tensile Strength (psi): | 72, 000 | Centerline to Opposite cotter Pin Side: | 2.186 |
| Inside Plate Height: | 1.166 | Side Plate Cfg.: | Hourglass |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Chain Pitch (in): | 1.25 in | Coating: | Uncoated |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 1.408 |
| Pin Length - Riveted: | 4.371 | UPC: | 662288455431 |
| Weight: | 7.61 LB | Packaged Length: | 15.50 Inches |
| Packaged Width: | 12.50 Inches | Packaged Height: | 6.00 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
