- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
100-2 O/L

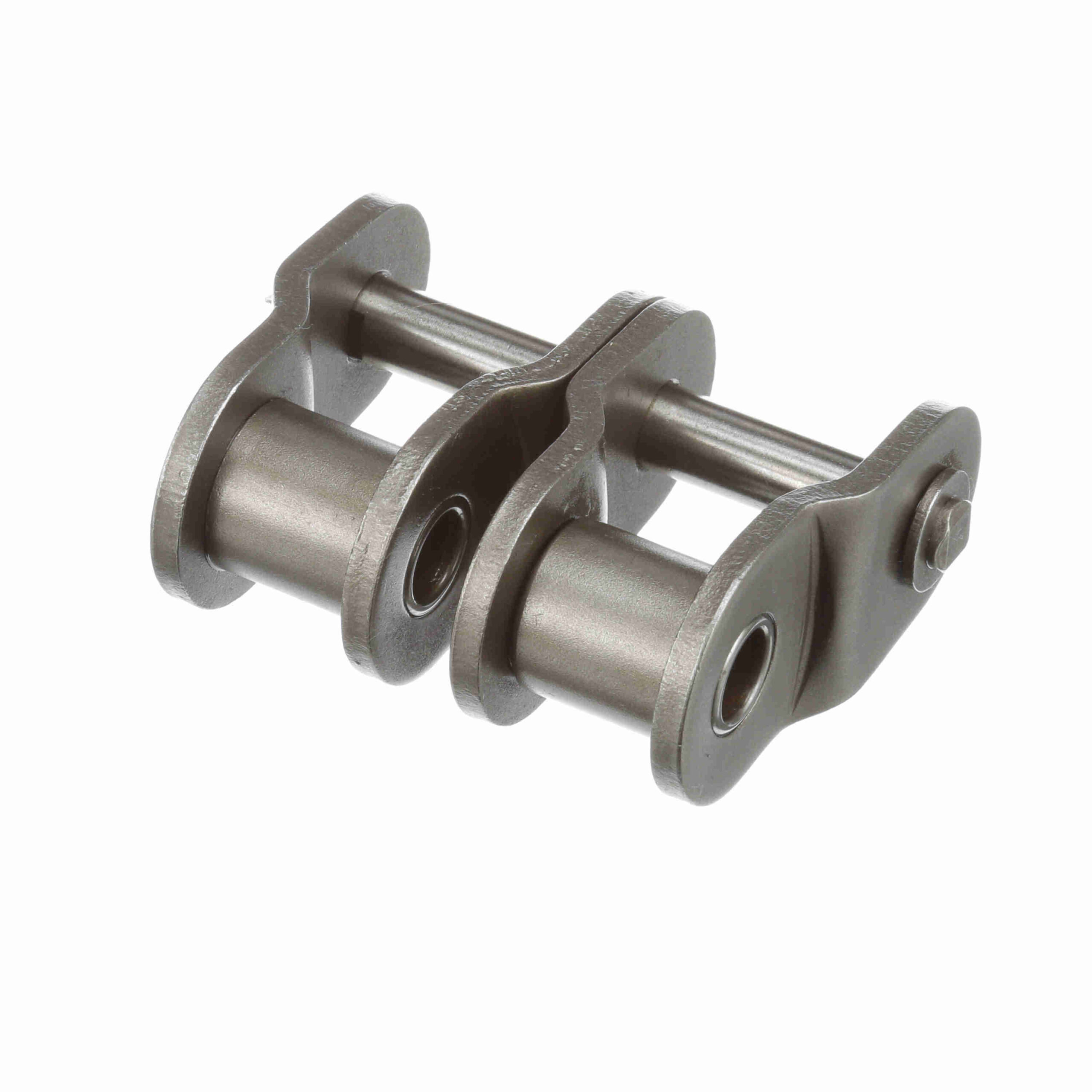

Morse Standard Roller Chain Offset Link – 100-2 O/L
$53.65
Out of stock
Out of stock
| Roller Diameter (in): | 0.75 in | Material: | Steel |
|---|---|---|---|
| Inside Plate Height: | 1.166 | Chain Size: | 100 |
| Number of Strands/Width: | 2 | Centerline to Opposite cotter Pin Side: | 1.482 |
| Plate Thickness: | 0.156 | Centerline to Outside of cotter Pin: | 1.625 |
| Side Plate Cfg.: | Hourglass | Average Ultimate Tensile Strength (psi): | 48, 000 |
| Pin Diameter (in): | 0.375 in | Single Pitch Offset Link: | Cottered |
| Width Over Pins/Total Width: | 2.963 | Roller Width (in): | 0.75 in |
| Chain Pitch (in): | 1.25 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Link Type: | Offset Link |
| UPC: | 662288456247 | Weight: | 1.01 LB |
| Packaged Length: | 5.30 Inches | Packaged Width: | 3.80 Inches |
| Packaged Height: | 1.55 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
