- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS836

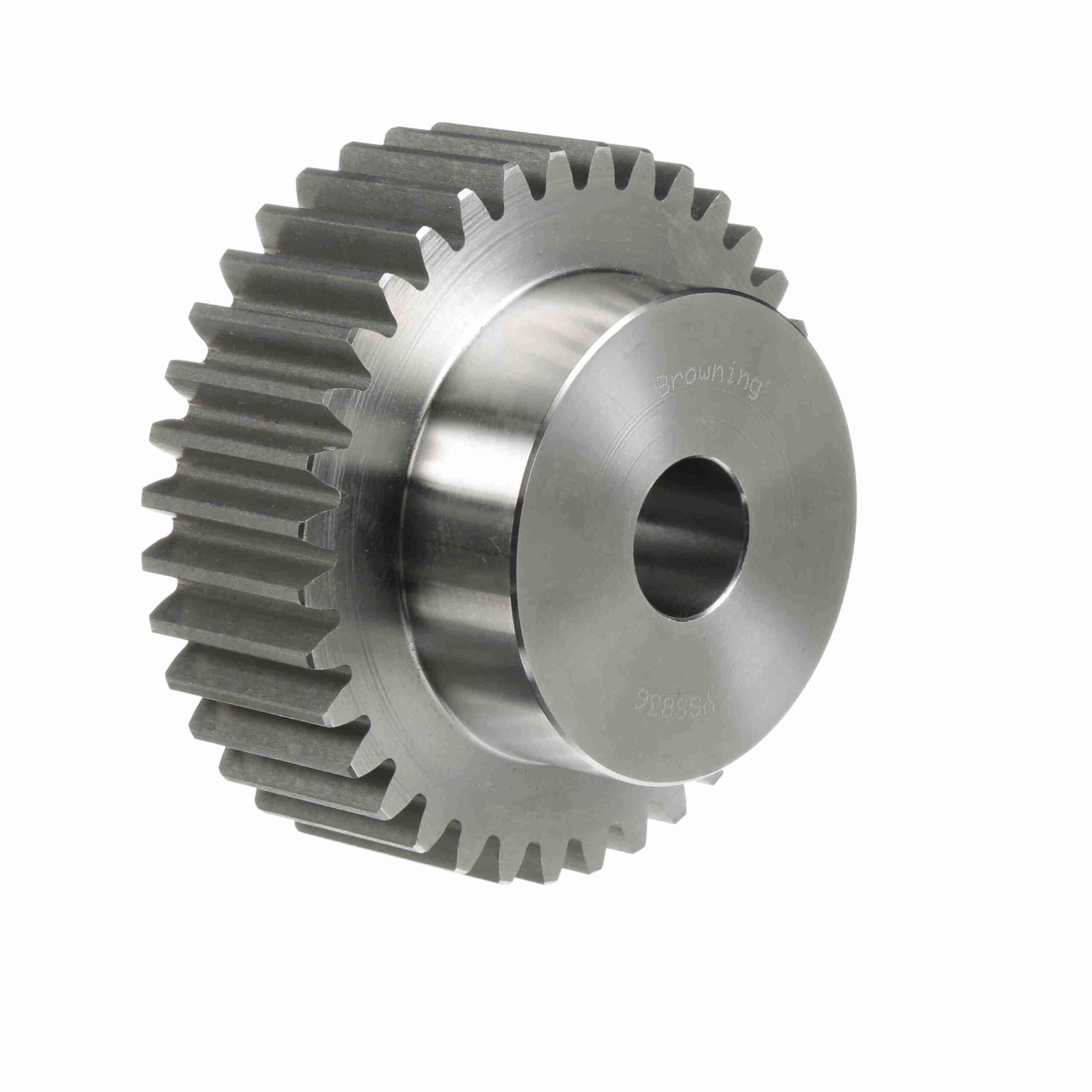

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 8 DP – YSS836
$437.60
Out of stock
Out of stock
| Pitch Diameter (in): | 4.5 in | Hub Diameter (in): | 3.125 in |
|---|---|---|---|
| Outside Diameter (in): | 4.75 in | Hub Projection (in): | 1 in |
| Number of Teeth/Threads: | 36 | Pressure Angle: | 20 |
| Face Width (in): | 1.5 in | Material: | Steel |
| Diametral Pitch: | 8 | Length Through Bore (in): | 2.5 in |
| Bore (Min) (in): | 1 in | Bore (Max) (in): | 2.125 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.5 in |
| UPC: | 662289296767 | Weight: | 8.38 LB |
| Packaged Length: | 5.40 Inches | Packaged Width: | 5.30 Inches |
| Packaged Height: | 2.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
