- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS615

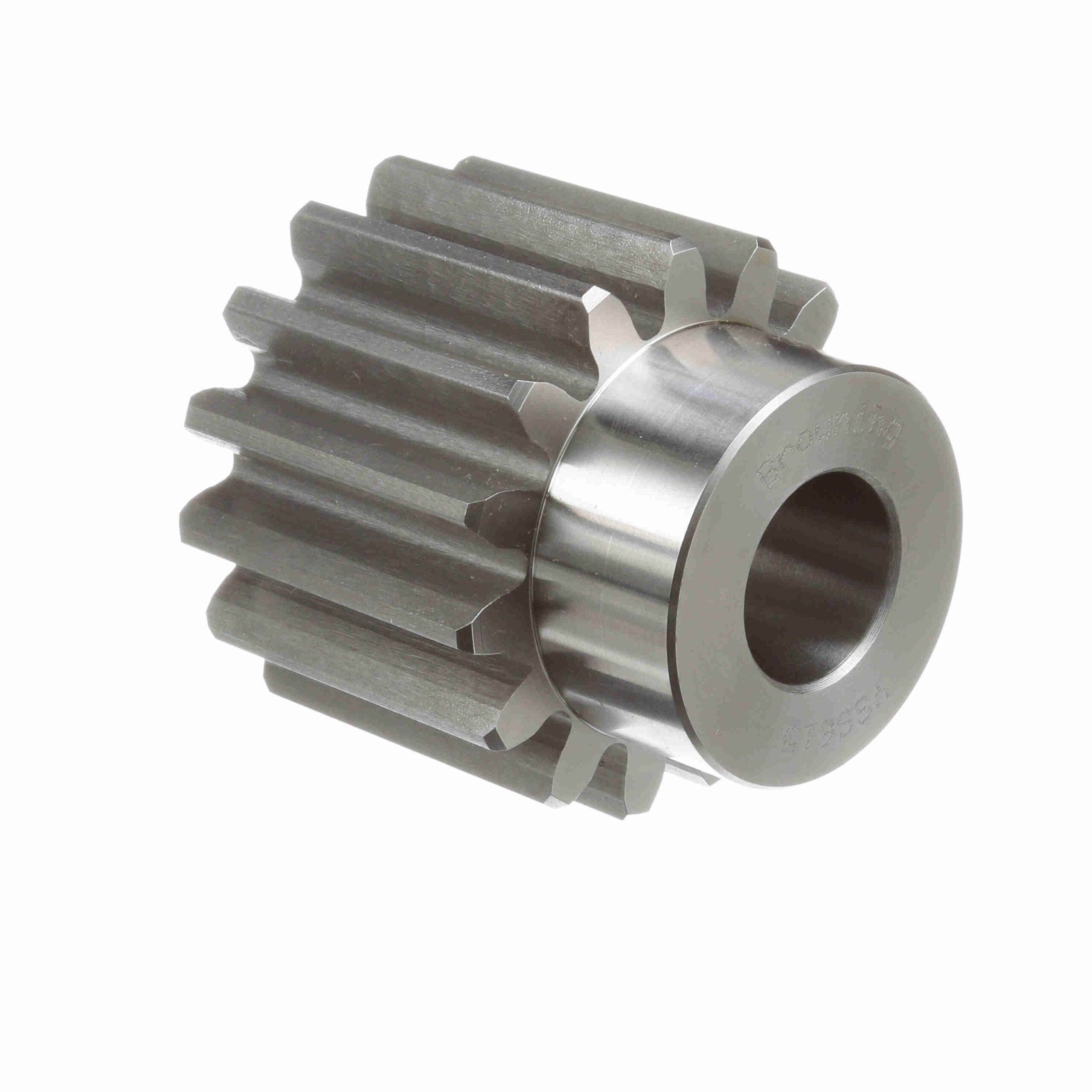

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 6 DP – YSS615
Out of stock
| Outside Diameter (in): | 2.83 in | Pressure Angle: | 20 |
|---|---|---|---|
| Diametral Pitch: | 6 | Material: | Steel |
| Hub Diameter (in): | 2 in | Hub Projection (in): | 0.875 in |
| Number of Teeth/Threads: | 15 | Face Width (in): | 2 in |
| Pitch Diameter (in): | 2.5 in | Length Through Bore (in): | 2.875 in |
| Bore (Max) (in): | 1.25 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 1 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Overall Length (in): | 2.875 in | Standard Met: | AGMA |
| UPC: | 662289256952 | Weight: | 2.90 LB |
| Packaged Length: | 3.40 Inches | Packaged Width: | 3.00 Inches |
| Packaged Height: | 3.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
