- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS416

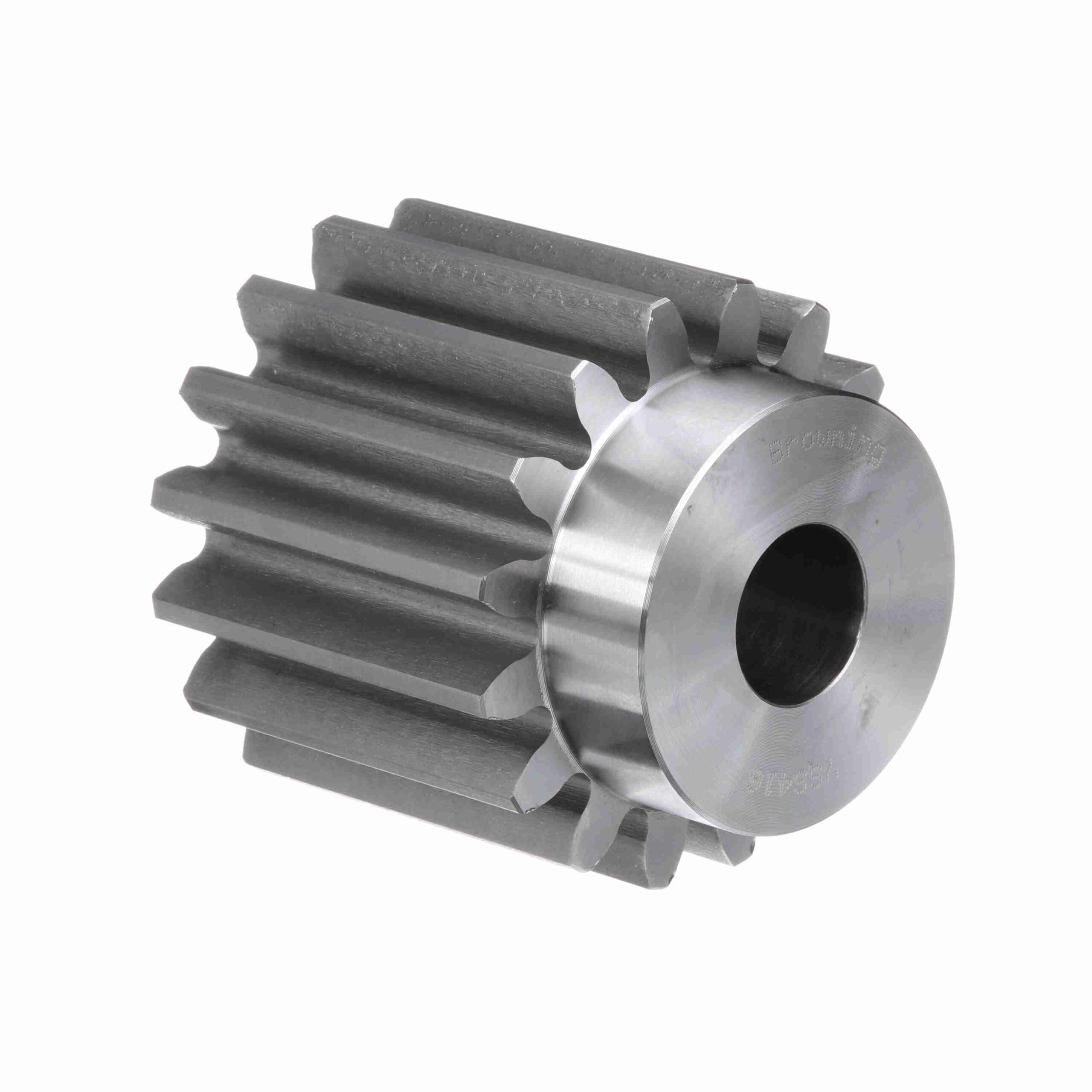

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 4 DP – YSS416
$600.10
Out of stock
Out of stock
| Material: | Steel | Hub Diameter (in): | 3.25 in |
|---|---|---|---|
| Pitch Diameter (in): | 4 in | Face Width (in): | 3.5 in |
| Pressure Angle: | 20 | Outside Diameter (in): | 4.5 in |
| Diametral Pitch: | 4 | Number of Teeth/Threads: | 16 |
| Hub Projection (in): | 1 in | Bore (Max) (in): | 2.25 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 4.5 in |
| Bore (Min) (in): | 1.3125 in | Bore Size (in): | 1.3125 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 4.5 in | Standard Met: | AGMA |
| UPC: | 662289117376 | Weight: | 14.14 LB |
| Packaged Length: | 10.70 Inches | Packaged Width: | 12.20 Inches |
| Packaged Height: | 10.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
