- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS2080

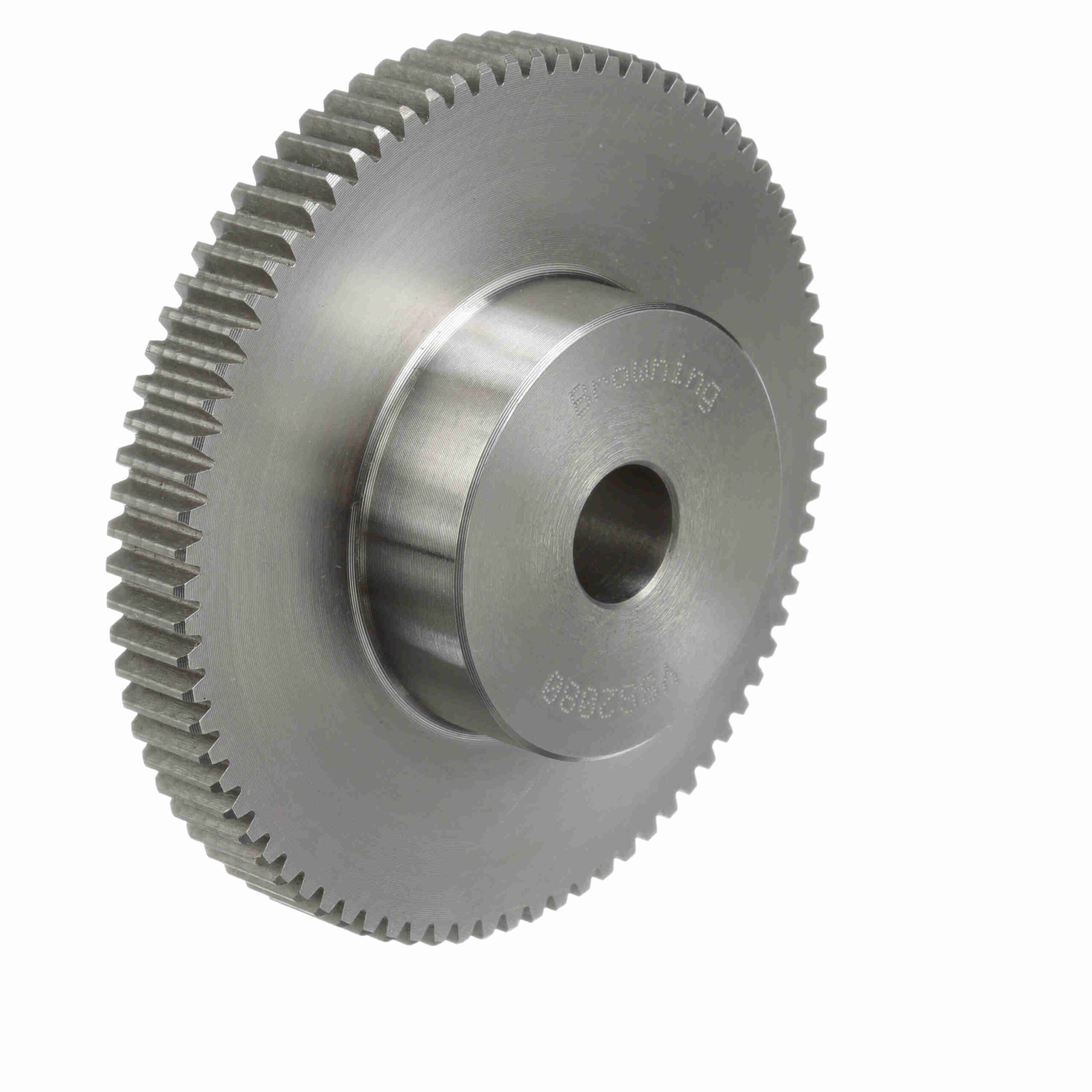

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 20 DP – YSS2080
Out of stock
| Pitch Diameter (in): | 4 in | Number of Teeth/Threads: | 80 |
|---|---|---|---|
| Pressure Angle: | 20 | Face Width (in): | 0.5 in |
| Hub Projection (in): | 0.625 in | Hub Diameter (in): | 2.0625 in |
| Outside Diameter (in): | 4.1 in | Diametral Pitch: | 20 |
| Material: | Steel | Length Through Bore (in): | 1.125 in |
| Bore Type: | Minimum Plain Bore | Bore (Min) (in): | 0.5 in |
| Bore (Max) (in): | 1.25 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.125 in |
| UPC: | 662289205868 | Weight: | 2.29 LB |
| Packaged Length: | 5.60 Inches | Packaged Width: | 5.60 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
