- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS1075

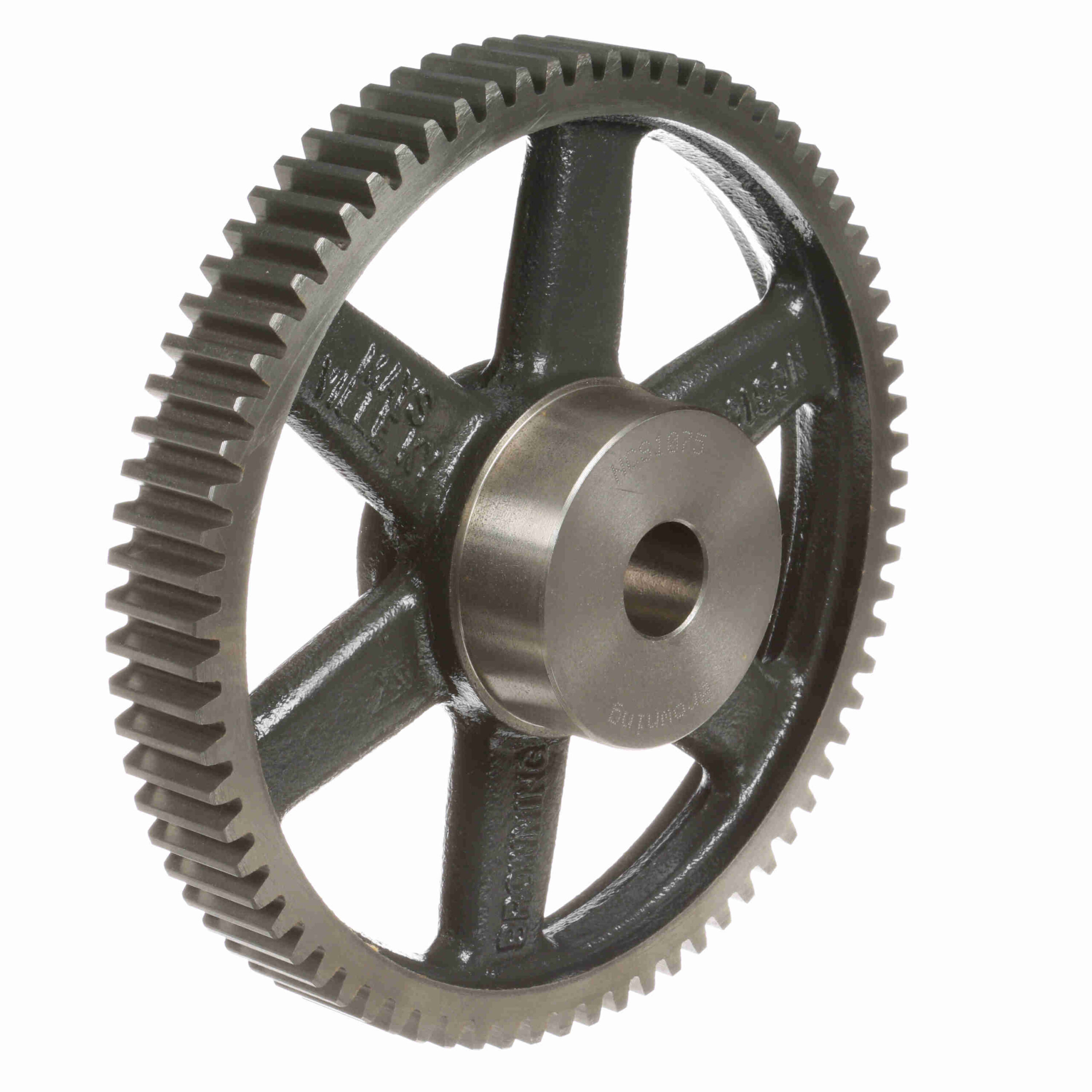

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 10 DP – NCS1075
Out of stock
| Diametral Pitch: | 10 | Number of Teeth/Threads: | 75 |
|---|---|---|---|
| Hub Projection (in): | 0.875 in | Pressure Angle: | 14.5 |
| Outside Diameter (in): | 7.7 in | Face Width (in): | 1 in |
| Material: | Gray Iron | Hub Diameter (in): | 2.625 in |
| Pitch Diameter (in): | 7.5 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.5625 in | Length Through Bore (in): | 1.875 in |
| Bore (Min) (in): | 0.875 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.875 in | Hub Type: | Type B |
| Overall Length (in): | 1.875 in | Standard Met: | AGMA |
| UPC: | 662289303427 | Weight: | 6.37 LB |
| Packaged Length: | 8.50 Inches | Packaged Width: | 8.30 Inches |
| Packaged Height: | 1.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
