- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS16F32X5/8

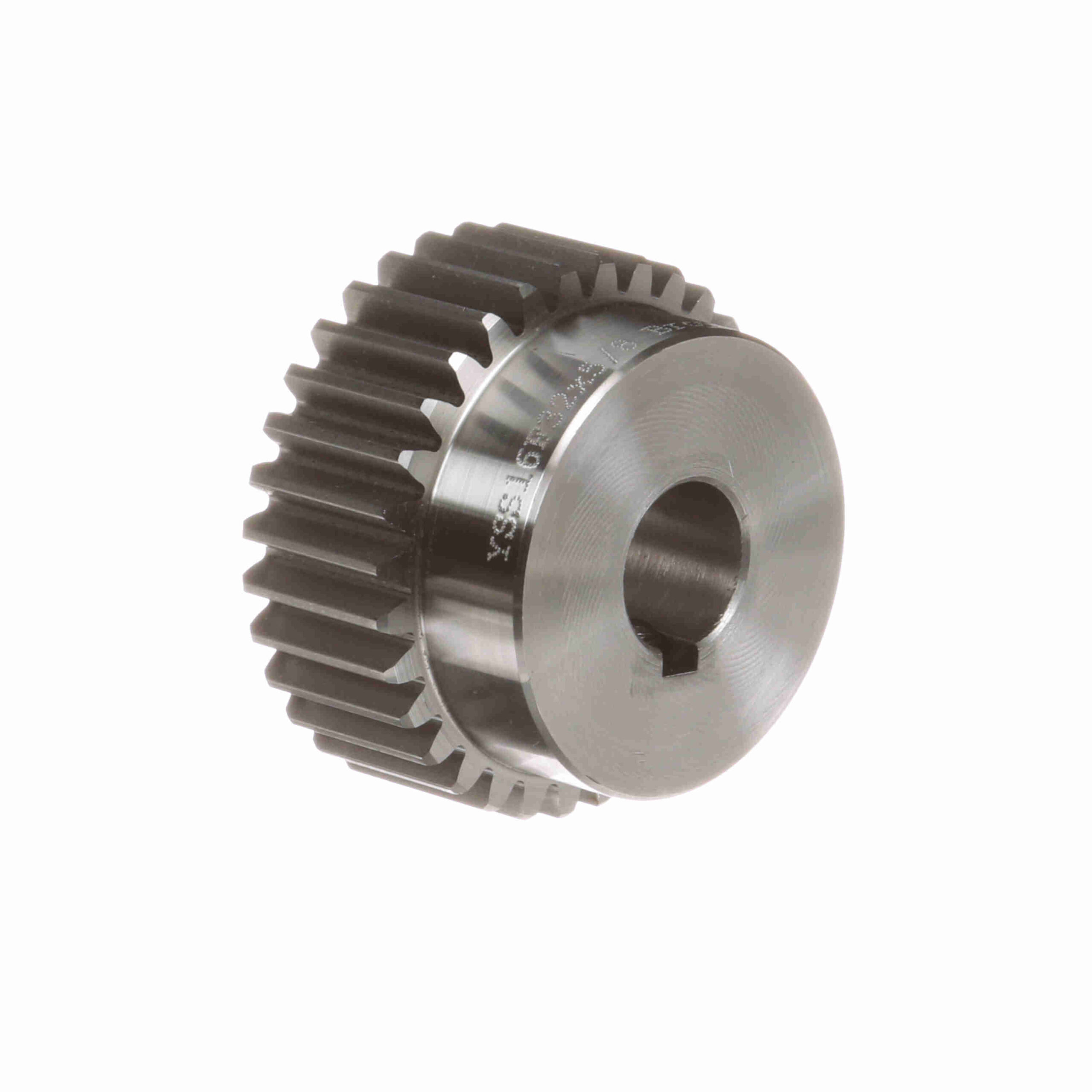

Browning Steel Finished Bore Spur Gear – 20 PA 16 DP – YSS16F32X5/8
$207.44
Out of stock
Out of stock
| Pitch Diameter (in): | 2 in | Diametral Pitch: | 16 |
|---|---|---|---|
| Outside Diameter (in): | 2.12 in | Hub Projection (in): | 0.5 in |
| Number of Teeth/Threads: | 32 | Pressure Angle: | 20 |
| Face Width (in): | 0.75 in | Material: | Steel |
| Hub Diameter (in): | 1.75 in | Length Through Bore (in): | 1.25 in |
| Bore (Min) (in): | 0.625 in | Bore (Max) (in): | 0.625 in |
| Bore Type: | Finished Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.625 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.25 in |
| UPC: | 662289188857 | Weight: | 0.91 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.80 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
