- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS10H40

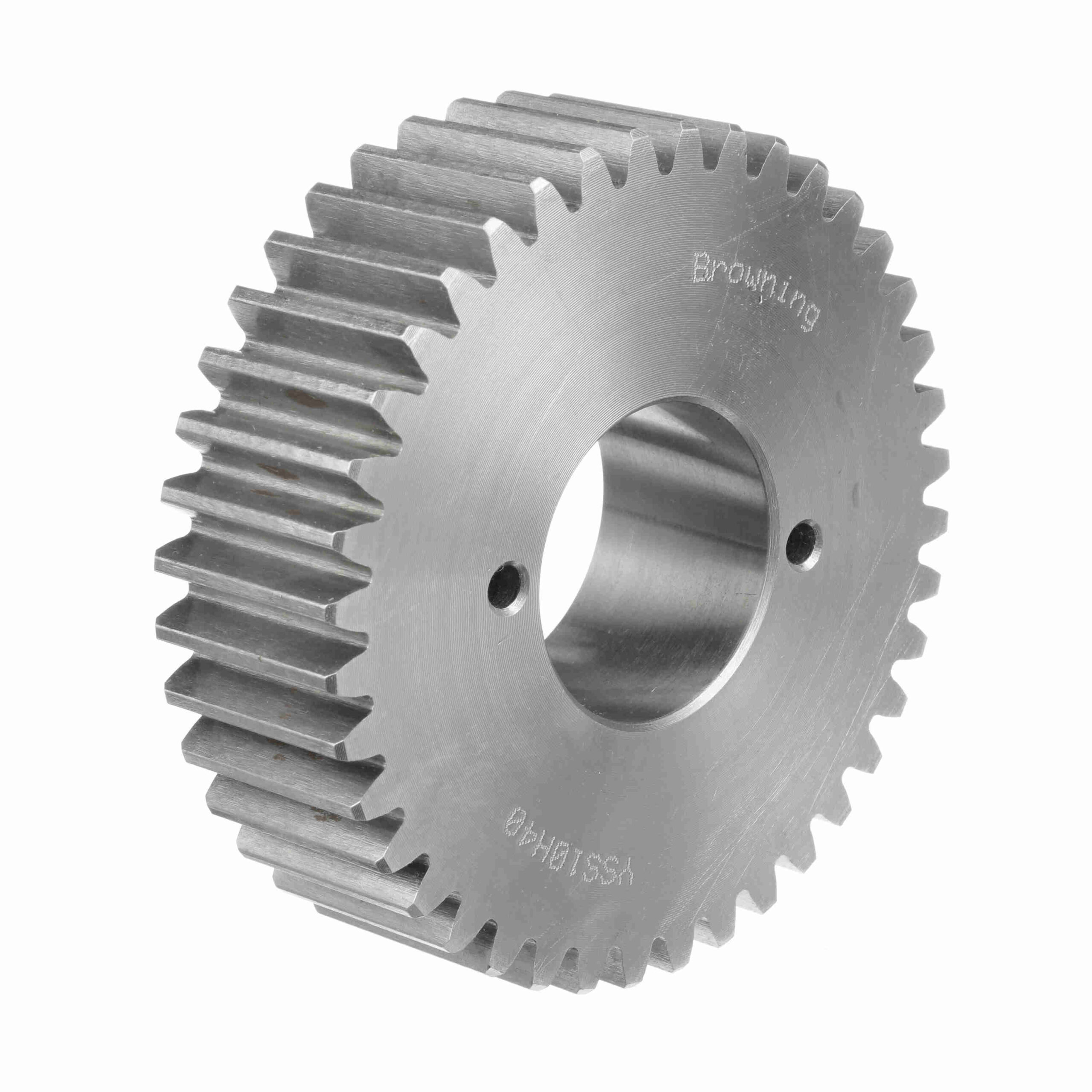

Browning Steel Bushed Bore Spur Gear – 20 PA 10 DP – YSS10H40
Out of stock
| Material: | Steel | Pressure Angle: | 20 |
|---|---|---|---|
| Diametral Pitch: | 10 | Face Width (in): | 1.25 in |
| Pitch Diameter (in): | 4 in | Number of Teeth/Threads: | 40 |
| Outside Diameter (in): | 4.2 in | Bore (Max) (in): | 1.5 in |
| Length Through Bore (in): | 1.875 in | Bore (Min) (in): | 0.375 in |
| Bore Type: | Bushed Bore | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | H |
| Standard Met: | AGMA | Overall Length (in): | 1.875 in |
| UPC: | 662289117727 | Weight: | 3.76 LB |
| Packaged Length: | 5.70 Inches | Packaged Width: | 5.60 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
