- Mating Spur Gears must have same pressure angle and pitch
- Standard Lengths are Extra Long to allow for cutting and matching ends
- Standard Gear Rack : 1). Manufactured From Mild Steel, 2). 14 1/2 Pressure Angle – 32 to 3 DP, 3). 20 Pressure Angle – 20 to 4 DP, 4). 4 and 6 FT Available from Stock, 12 FT May Be Available on Some Sizes.
- Modification Options Available : 1). Cut to Desired Length, 2). Milled and Matched Ends, 3). Drilled or Drilled and Tapped Holes for Mounting
6YSR4X2

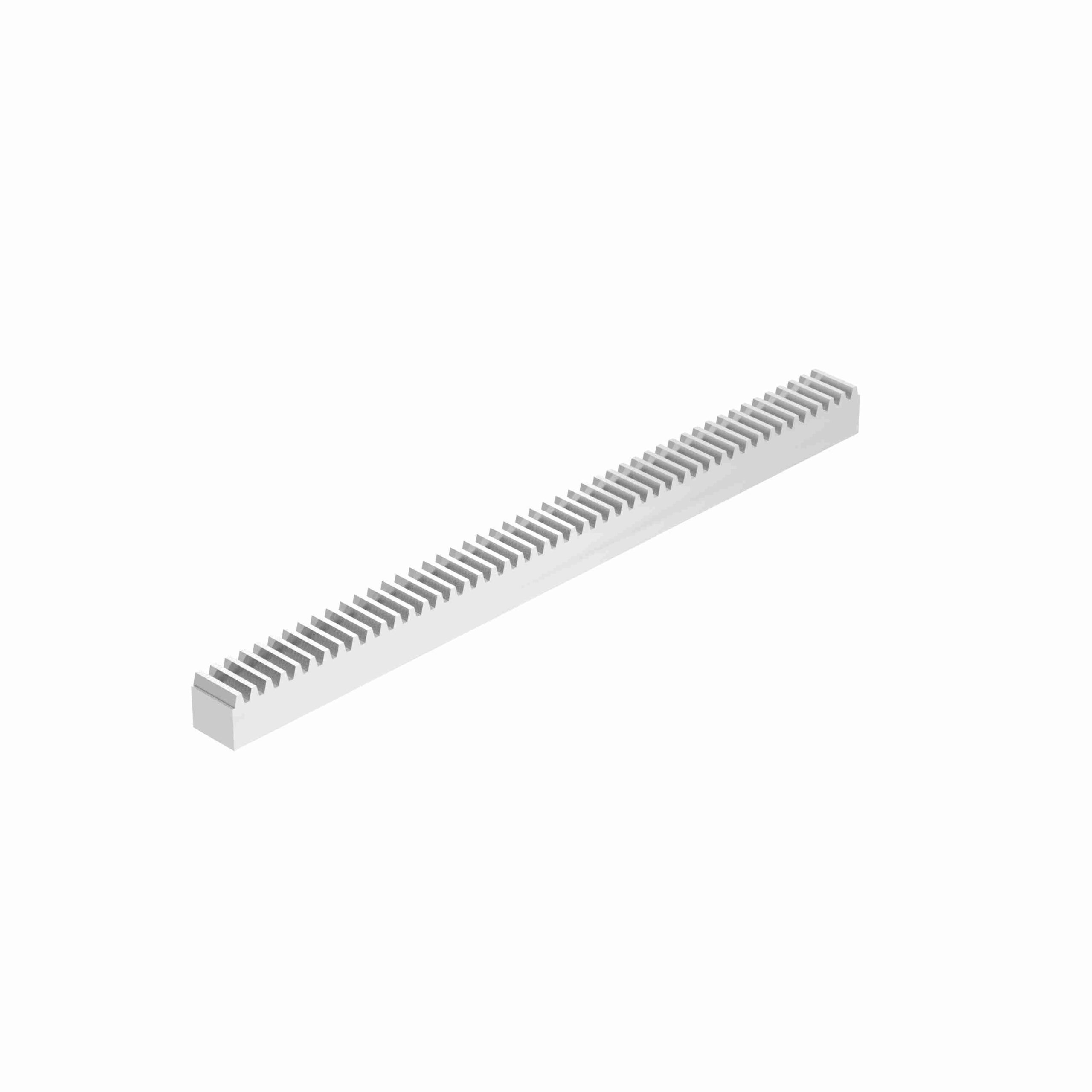

Browning Steel Gear Rack – 20 PA 4 DP, 6 FT Length – 6YSR4X2
$2,298.21
Out of stock
Out of stock
| Diametral Pitch: | 4 | Pitch Line: | 1.75 |
|---|---|---|---|
| Thickness (in): | 2 in | Pressure Angle: | 20 |
| Material: | Steel | Product Type: | Gear Rack |
| Gear Rack Width (in): | 3.5 in | Gear Rack Length (ft): | 6 |
| UPC: | 662289157525 | Weight: | 126.50 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 73.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | United States of America |
