- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM20B25

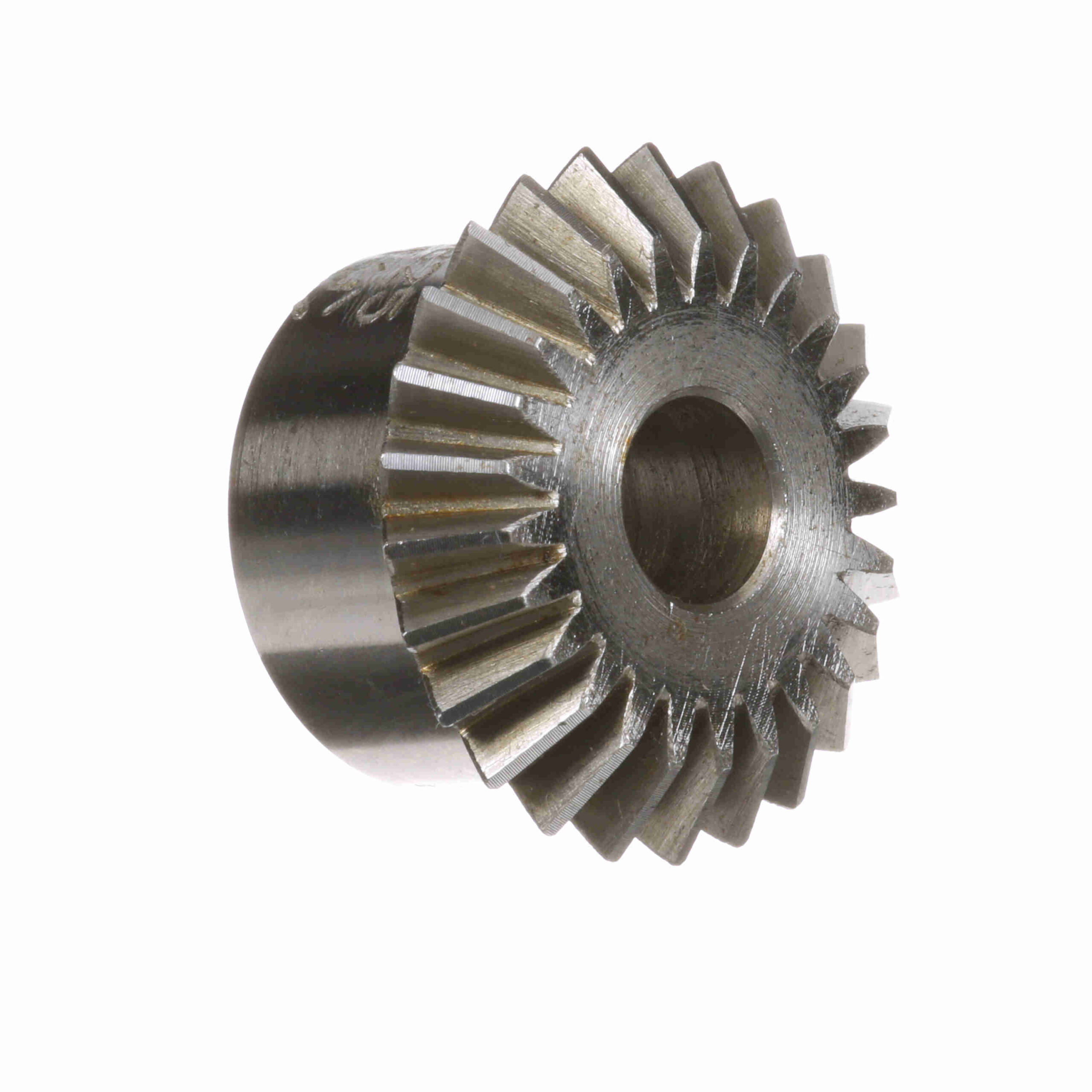

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 20 DP – YSM20B25
$153.53
Out of stock
Out of stock
| Hub Diameter (in): | 1 in | Hub Projection (in): | 0.4375 in |
|---|---|---|---|
| Material: | Steel | Mounting Distance: | 1.188 |
| Pitch Diameter (in): | 1.25 in | Number of Teeth/Threads: | 25 |
| Diametral Pitch: | 20 | Face Width (in): | 0.25 in |
| Pressure Angle: | 20 | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 0.5 in | Bore (Min) (in): | 0.5 in |
| Length Through Bore (in): | 0.75 in | Product Type: | Miter Gear |
| Bore Size (in): | 0.5 in | UPC: | 662289236602 |
| Weight: | 0.19 LB | Packaged Length: | 3.00 Inches |
| Packaged Width: | 2.80 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
