- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM12F15HX1/2

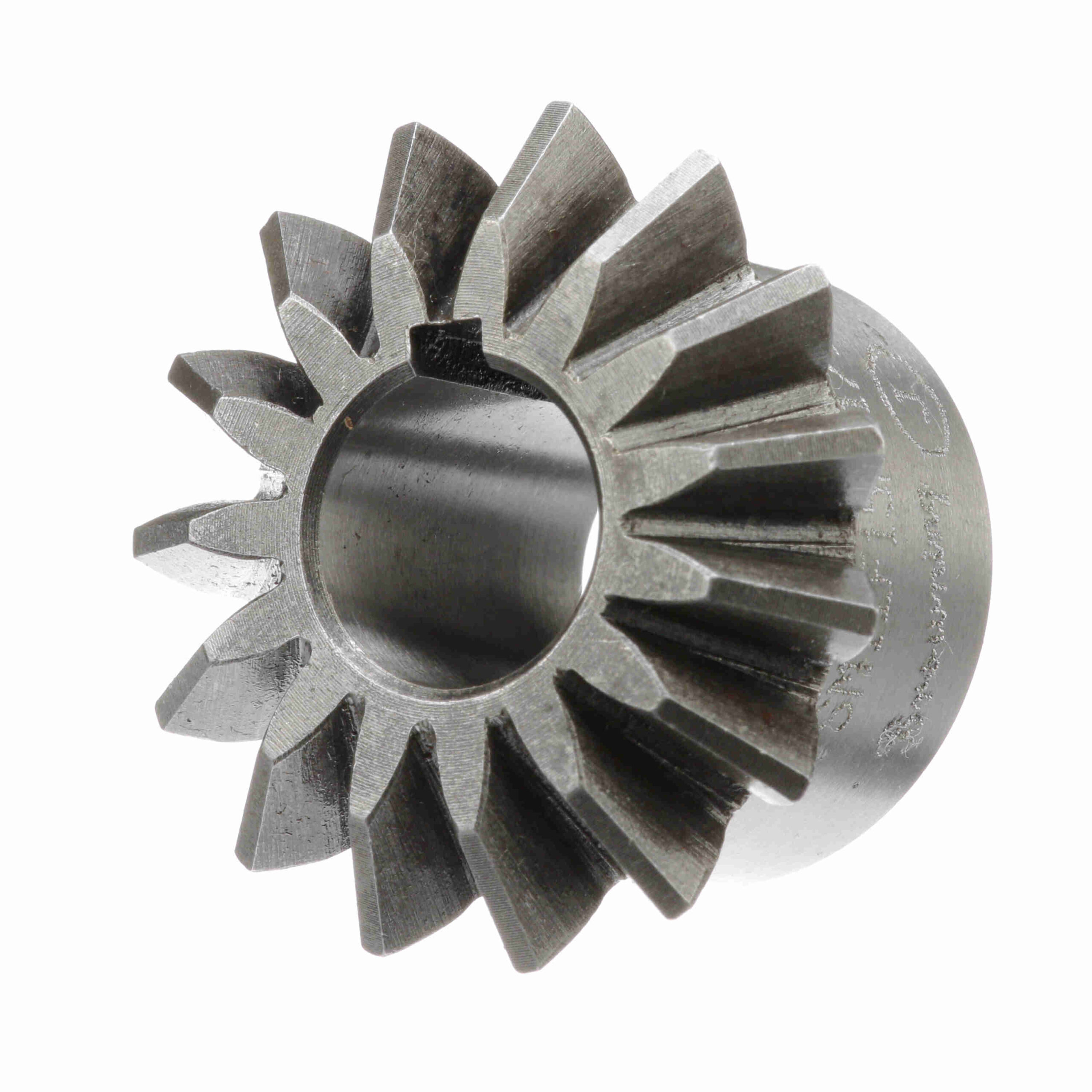

Browning Hardened Steel Finished Bore Miter Gear – 20 PA 12 DP – YSM12F15HX1/2
$169.61
Out of stock
Out of stock
| Mounting Distance: | 1.25 | Pitch Diameter (in): | 1.25 in |
|---|---|---|---|
| Number of Teeth/Threads: | 15 | Diametral Pitch: | 12 |
| Hub Projection (in): | 0.5 in | Pressure Angle: | 20 |
| Hub Diameter (in): | 1 in | Face Width (in): | 0.27 in |
| Material: | Steel | Bore (Max) (in): | 0.5 in |
| Bore (Min) (in): | 0.5 in | Length Through Bore (in): | 0.859375 in |
| Bore Type: | Finished Bore | Bore Size (in): | 0.5 in |
| Product Type: | Miter Gear | UPC: | 662289246380 |
| Weight: | 0.21 LB | Packaged Length: | 3.70 Inches |
| Packaged Width: | 2.90 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
