- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM10F20HX3/4

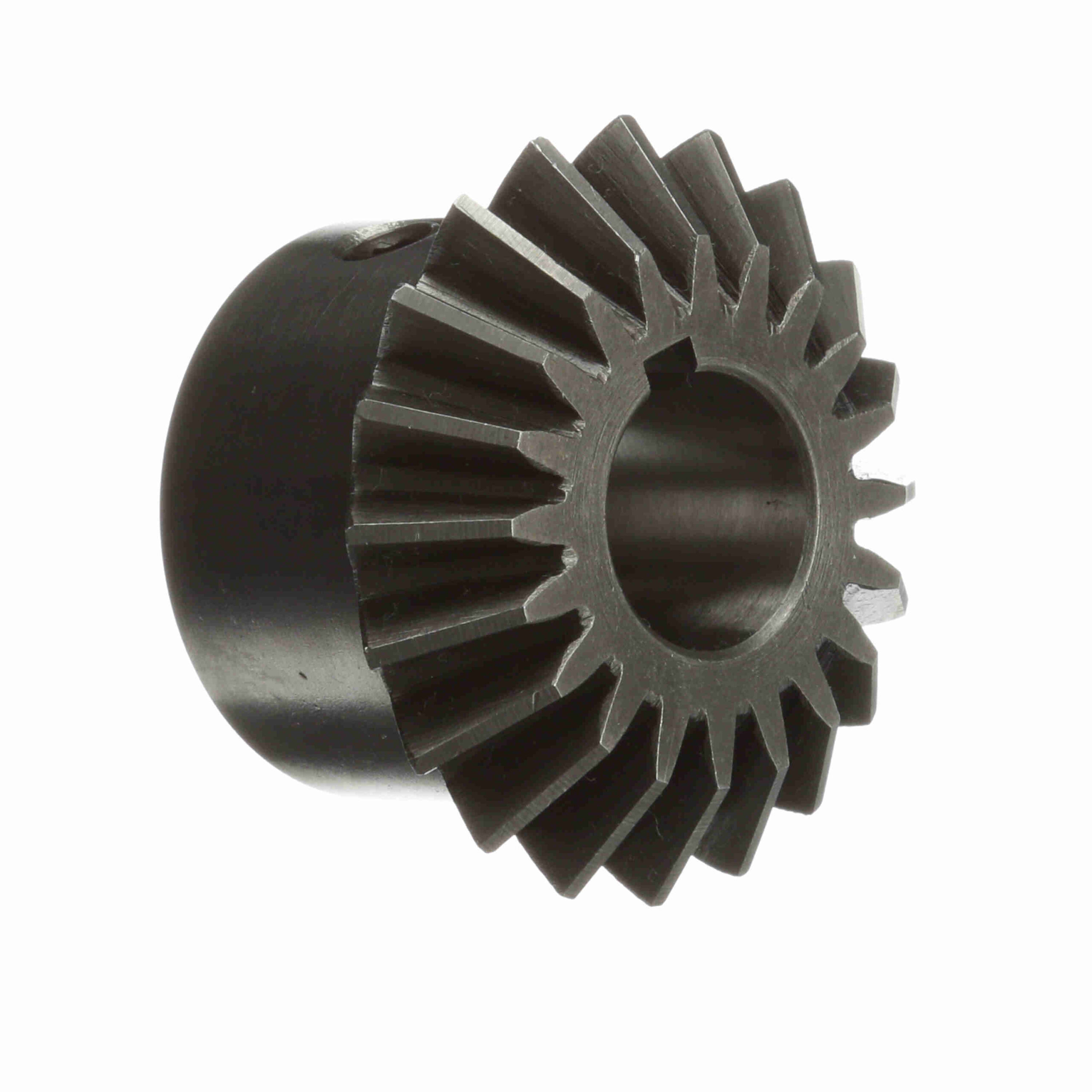

Browning Hardened Steel Finished Bore Miter Gear – 20 PA 10 DP – YSM10F20HX3/4
$220.37
Out of stock
Out of stock
| Pitch Diameter (in): | 2 in | Mounting Distance: | 2 |
|---|---|---|---|
| Hub Projection (in): | 0.8125 in | Material: | Steel |
| Diametral Pitch: | 10 | Number of Teeth/Threads: | 20 |
| Pressure Angle: | 20 | Face Width (in): | 0.44 in |
| Hub Diameter (in): | 1.625 in | Length Through Bore (in): | 1.359375 in |
| Bore Type: | Finished Bore | Bore (Min) (in): | 0.75 in |
| Bore (Max) (in): | 0.75 in | Product Type: | Miter Gear |
| Bore Size (in): | 0.75 in | UPC: | 662289186440 |
| Weight: | 0.68 LB | Packaged Length: | 3.20 Inches |
| Packaged Width: | 3.20 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
