- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB6B60-40

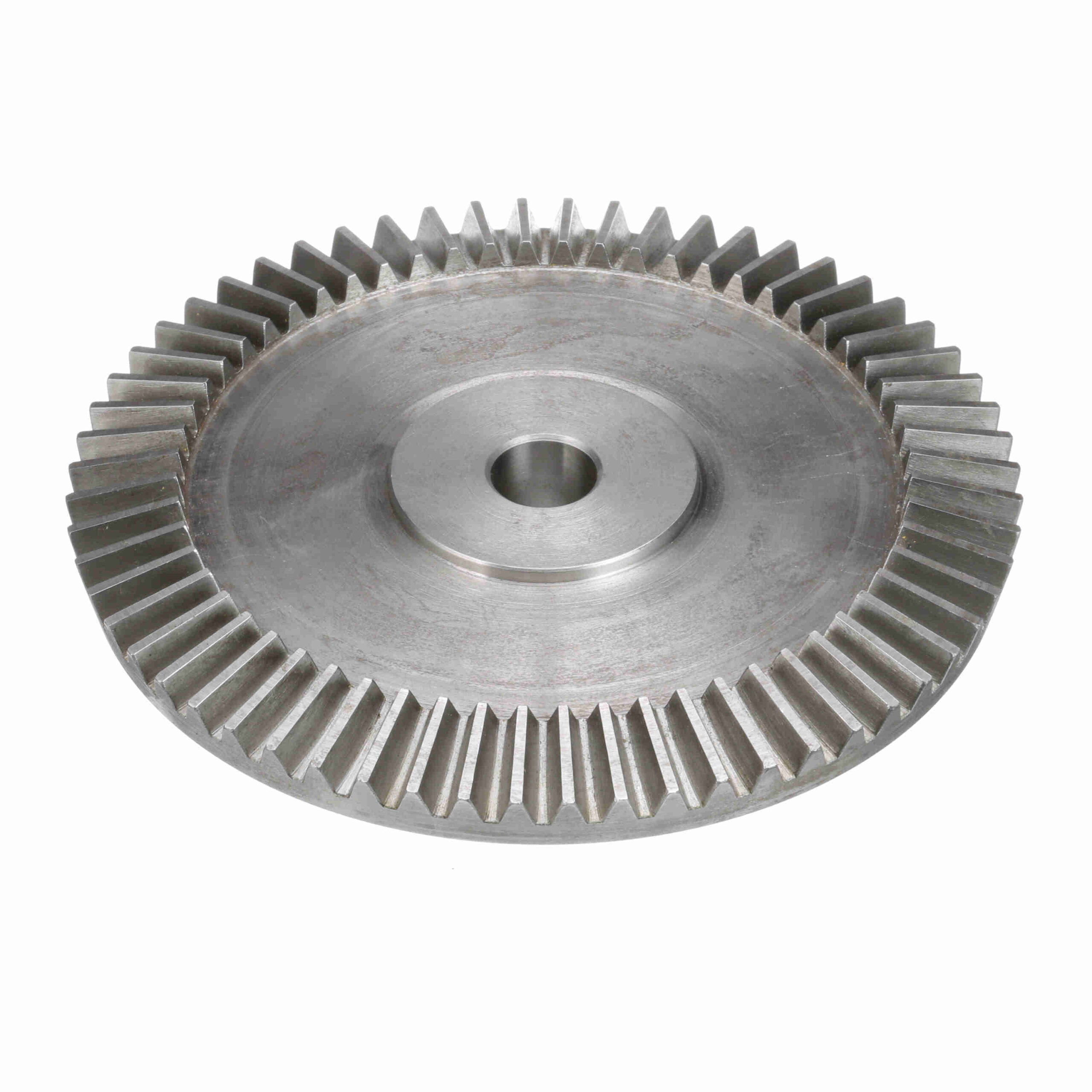

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 6 DP – YSB6B60-40
$971.72
Out of stock
Out of stock
| Material: | Steel | Mounting Distance: | 3.25 |
|---|---|---|---|
| Pressure Angle: | 20 | Diametral Pitch: | 6 |
| Hub Diameter (in): | 3.25 in | Number of Teeth/Threads: | 60 |
| Pitch Diameter (in): | 10 in | Hub Projection (in): | 1.375 in |
| Face Width (in): | 1.21 in | Length Through Bore (in): | 2.25 in |
| Bore (Min) (in): | 1.125 in | Bore (Max) (in): | 2.25 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Bevel Gear |
| Bore Size (in): | 1.125 in | UPC: | 662289225125 |
| Weight: | 18.78 LB | Packaged Length: | 12.60 Inches |
| Packaged Width: | 10.70 Inches | Packaged Height: | 3.60 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
