- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB6B45-30

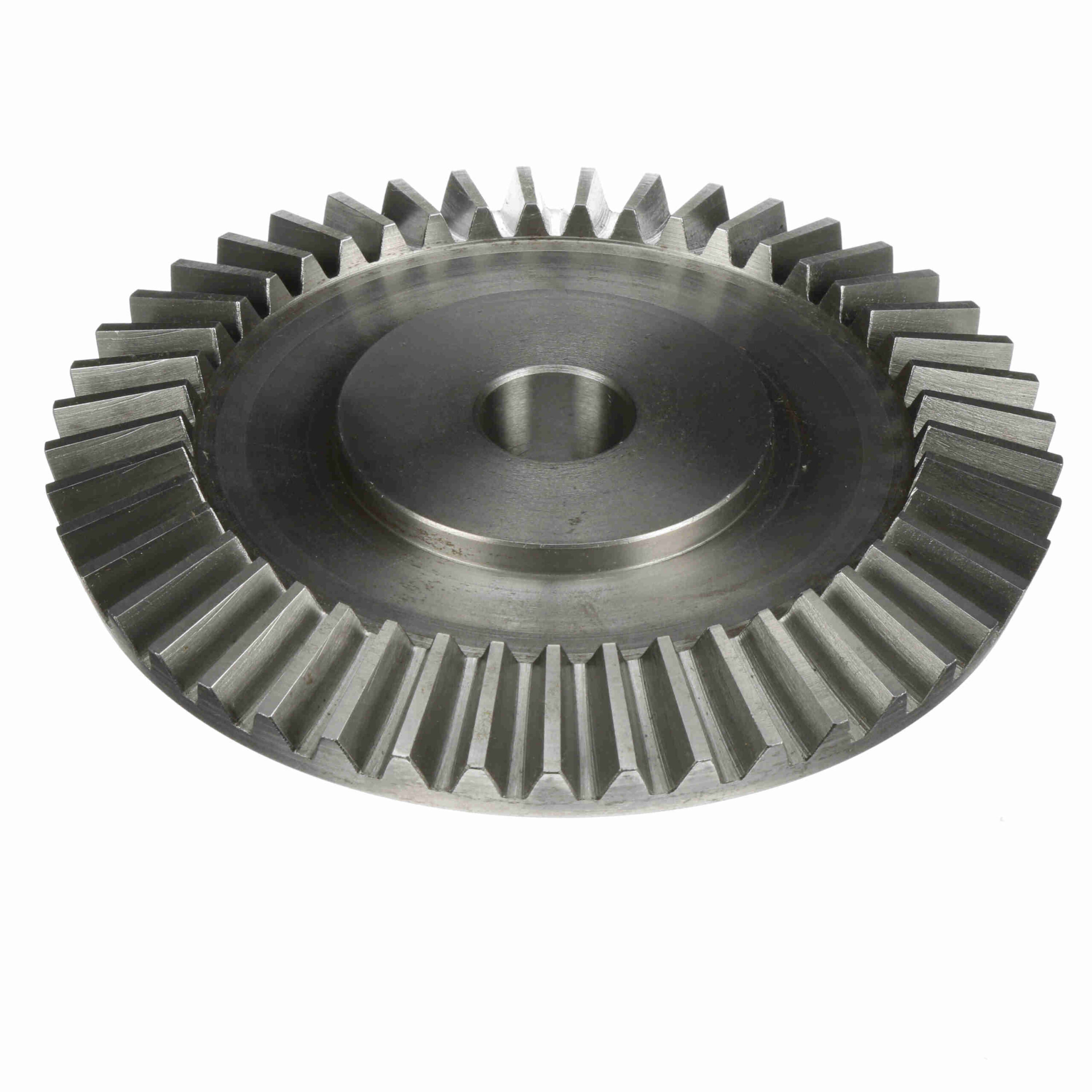

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 6 DP – YSB6B45-30
$1,395.74
Out of stock
Out of stock
| Diametral Pitch: | 6 | Pressure Angle: | 20 |
|---|---|---|---|
| Number of Teeth/Threads: | 45 | Hub Projection (in): | 1.25 in |
| Material: | Steel | Pitch Diameter (in): | 7.5 in |
| Face Width (in): | 1.07 in | Hub Diameter (in): | 3.25 in |
| Mounting Distance: | 3 | Bore (Max) (in): | 2.25 in |
| Length Through Bore (in): | 2.125 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 1.125 in | Hub Type: | Type B |
| Bushing Bore size (in): | 1.1250 to 2.2500 in | Bore Size (in): | 1.125 in |
| Product Type: | Bevel Gear | Gear Construction: | Plain |
| UPC: | 662289275175 | Weight: | 10.90 LB |
| Packaged Length: | 9.30 Inches | Packaged Width: | 9.50 Inches |
| Packaged Height: | 4.20 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | India |
