- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB5B60-40

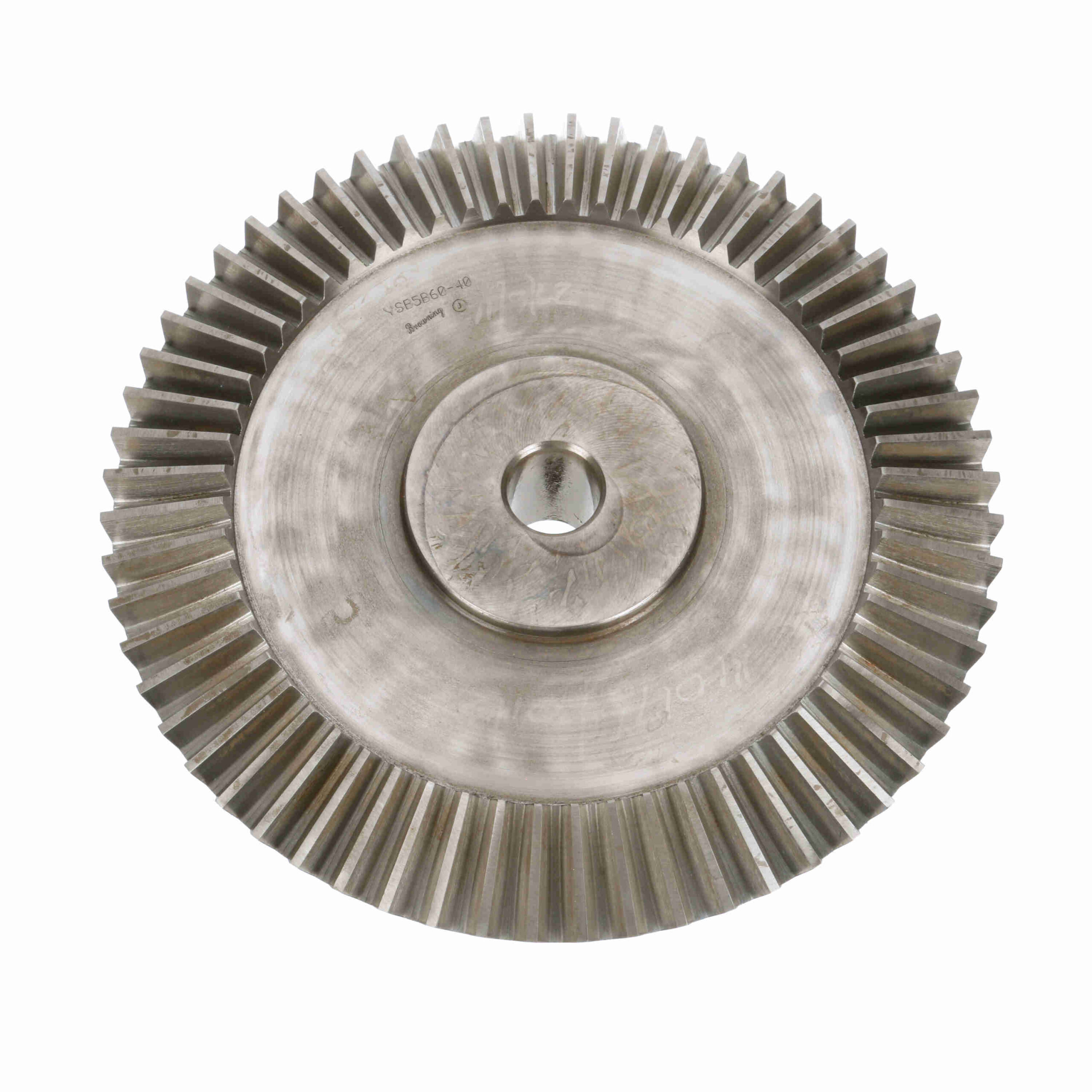

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 5 DP – YSB5B60-40
Out of stock
| Material: | Steel | Pitch Diameter (in): | 12 in |
|---|---|---|---|
| Pressure Angle: | 20 | Hub Diameter (in): | 4 in |
| Mounting Distance: | 3.75 | Hub Projection (in): | 1.5625 in |
| Number of Teeth/Threads: | 60 | Face Width (in): | 1.7 in |
| Diametral Pitch: | 5 | Length Through Bore (in): | 2.625 in |
| Bore (Min) (in): | 1.25 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2.375 in | Product Type: | Bevel Gear |
| Bore Size (in): | 1.25 in | UPC: | 662289305216 |
| Weight: | 30.20 LB | Packaged Length: | 12.75 Inches |
| Packaged Width: | 12.75 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
