- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YCS880

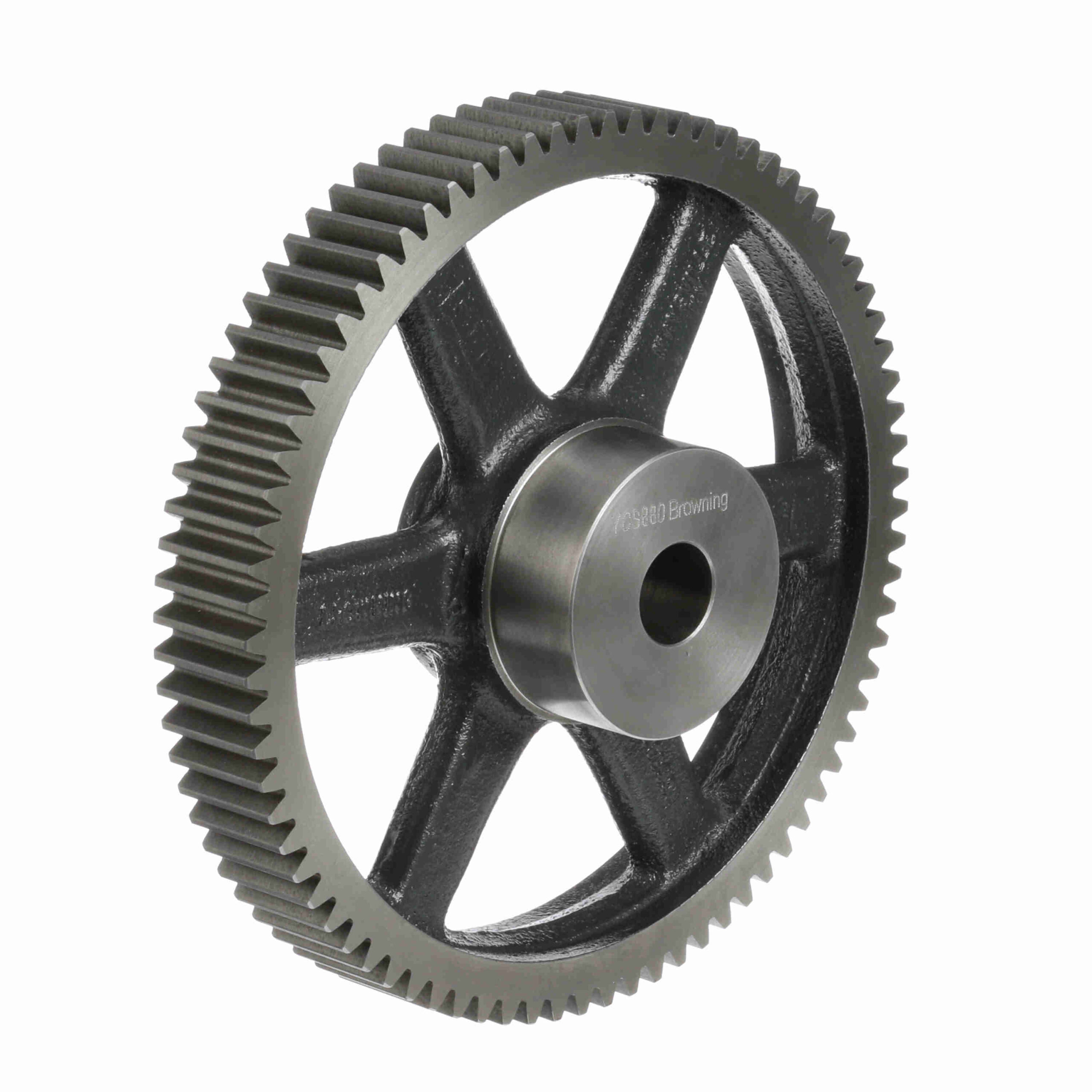

Browning Cast Iron Minimum Plain Bore Spur Gear – 20 PA 8 DP – YCS880
$842.42
Out of stock
Out of stock
| Pitch Diameter (in): | 10 in | Face Width (in): | 1.5 in |
|---|---|---|---|
| Hub Projection (in): | 1.25 in | Hub Diameter (in): | 3.25 in |
| Pressure Angle: | 20 | Diametral Pitch: | 8 |
| Material: | Gray Iron | Number of Teeth/Threads: | 80 |
| Outside Diameter (in): | 10.25 in | Bore (Min) (in): | 1.125 in |
| Length Through Bore (in): | 2.75 in | Bore (Max) (in): | 2 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 1.125 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.75 in |
| UPC: | 662289266883 | Weight: | 16.95 LB |
| Packaged Length: | 10.60 Inches | Packaged Width: | 12.00 Inches |
| Packaged Height: | 10.20 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
