- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1220

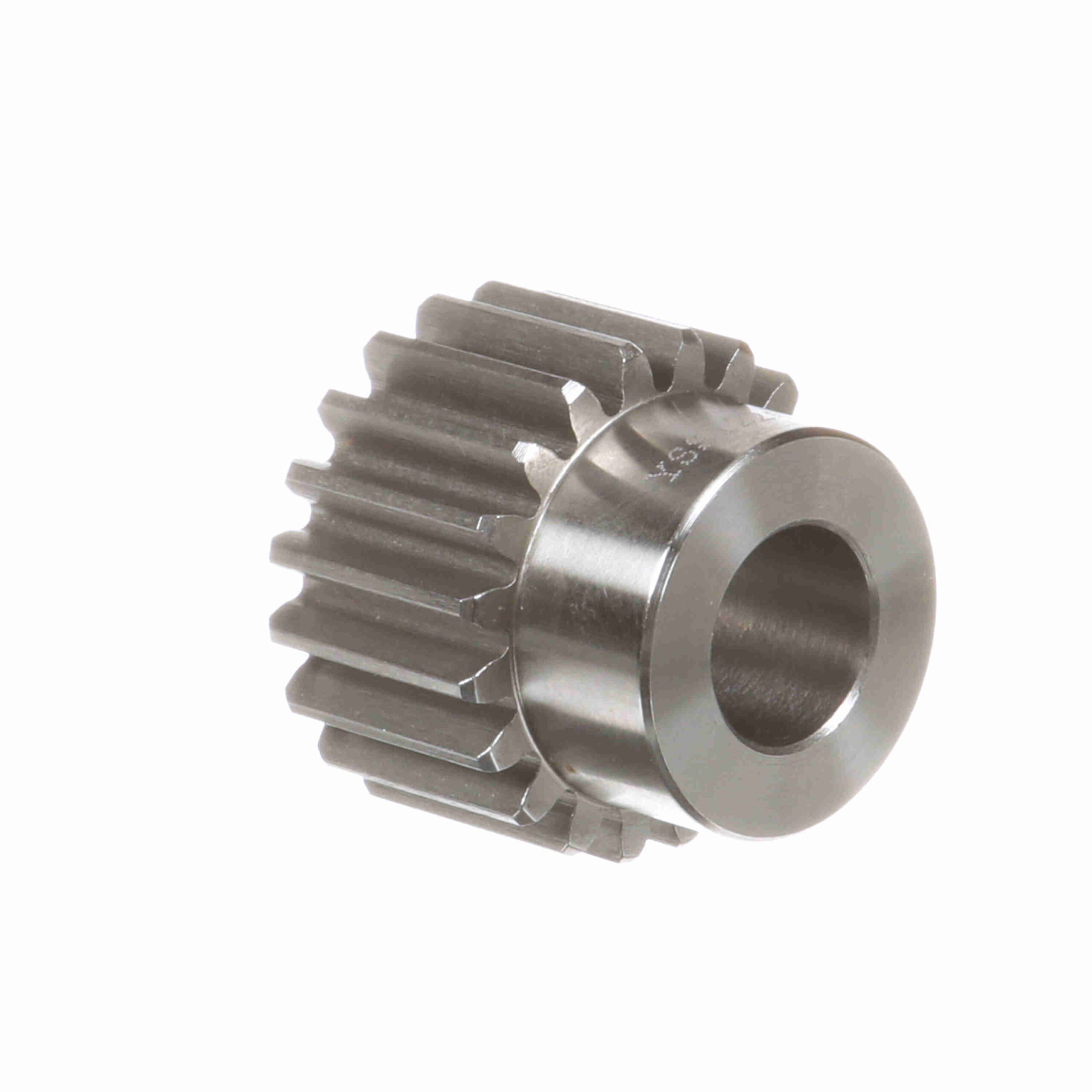

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 12 DP – YSS1220
$113.14
Out of stock
Out of stock
| Face Width (in): | 1 in | Outside Diameter (in): | 1.83 in |
|---|---|---|---|
| Diametral Pitch: | 12 | Pitch Diameter (in): | 1.667 in |
| Hub Diameter (in): | 1.4063 in | Pressure Angle: | 20 |
| Number of Teeth/Threads: | 20 | Material: | Steel |
| Hub Projection (in): | 0.625 in | Length Through Bore (in): | 1.625 in |
| Bore (Max) (in): | 0.75 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 0.75 in | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.625 in |
| UPC: | 662289196227 | Weight: | 0.71 LB |
| Packaged Length: | 2.90 Inches | Packaged Width: | 2.60 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
