- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YCS6Q48

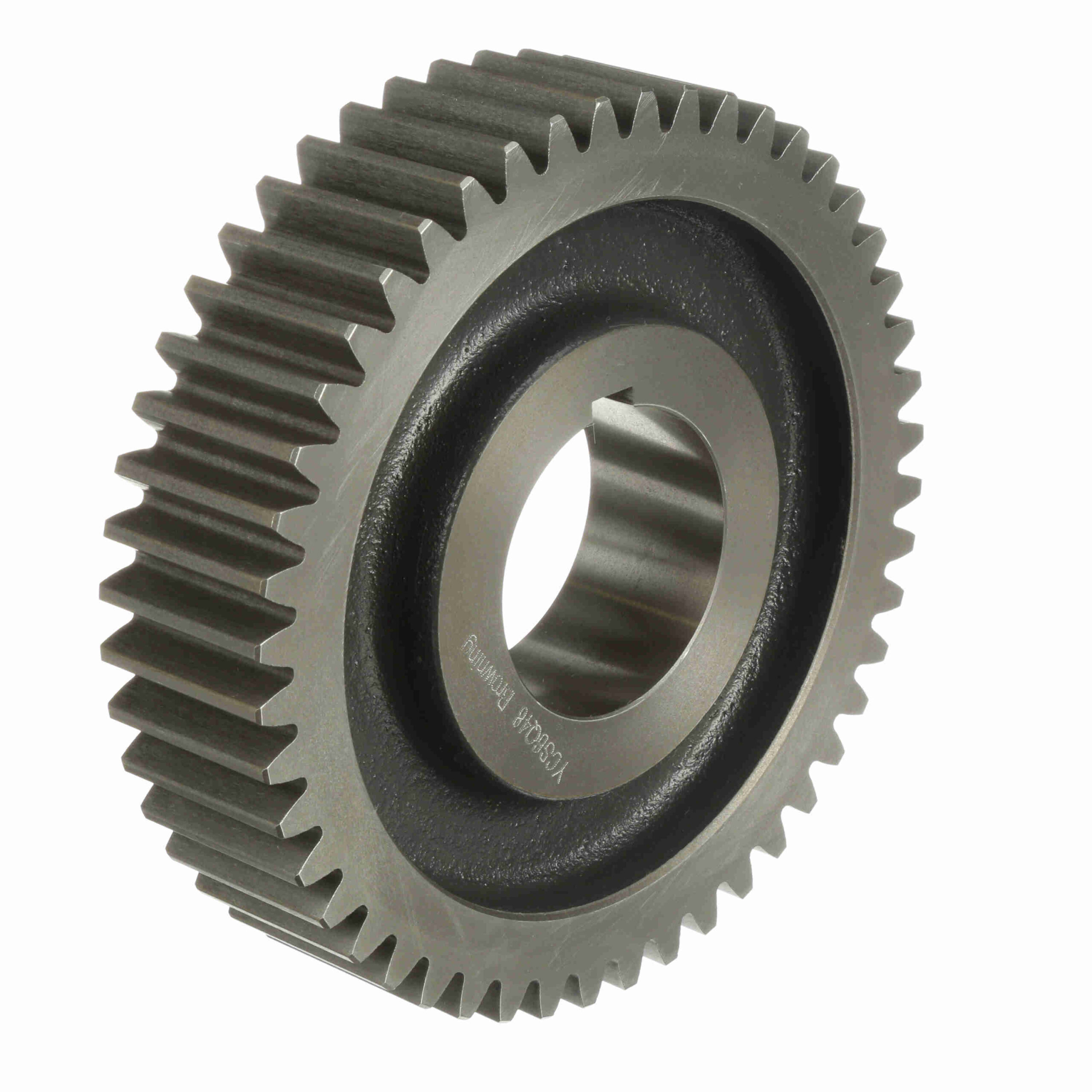

Browning Cast Iron Bushed Bore Spur Gear – 20 PA 6 DP – YCS6Q48
$803.14
Out of stock
Out of stock
| Material: | Gray Iron | Face Width (in): | 2 in |
|---|---|---|---|
| Pressure Angle: | 20 | Pitch Diameter (in): | 8 in |
| Outside Diameter (in): | 8.33 in | Number of Teeth/Threads: | 48 |
| Diametral Pitch: | 6 | Bore (Max) (in): | 2.6875 in |
| Length Through Bore (in): | 2.78125 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Bushed Bore | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Bushing Bore size (in): | 0.750 to 2.688 in |
| Hub Type: | Q1 | Overall Length (in): | 2.78125 in |
| Standard Met: | AGMA | Gear Construction: | Spoked |
| UPC: | 662289138142 | Weight: | 16.11 LB |
| Packaged Length: | 8.40 Inches | Packaged Width: | 8.80 Inches |
| Packaged Height: | 2.70 Inches |
